Yorkville EL12M Elite 12" Powered Stage Monitor

Yorkville EL12M Elite 12" Powered Stage Monitor

SoundPro Item: 205167 | Part Number: EL12M

$1,199.00
$1,569.00 $1,199.00
Your Price Sold out
MSRP: $1,569.00 | MAP: $1,199.00

Usually ships in 5-7 business days

  • Coaxial Design Supports Consistent Stage Coverage
  • Three Voicing Modes Adapt To Vocals Or Instruments
  • Dual XLR Outputs Simplify Signal Distribution
  • TRUE1 Power I/O Helps Streamline Stage Cabling
  • Birch Plywood Cabinet Supports Roadworthy Use
  • Integrated Handles Aid Faster Load-In And Setup
Log in or register for YOUR best price

The Yorkville EL12M is a dedicated powered stage monitor built for professional performance environments where consistent monitoring, fast deployment, and durable construction matter. Designed around a 12-inch coaxial woofer and 1-inch high-frequency driver, it delivers focused stage coverage in a compact enclosure under 40 pounds. With 1200 watts peak and 600 watts program power, the EL12M is suited for vocal monitoring, instrument reinforcement, and stage setups that demand reliable output without excessive bulk.

Its three selectable voicing modes make it easier to tailor the cabinet to different sources. Two monitor settings are optimized for vocal applications, while the flat mode supports keyboards, electronic drums, and full-range use with amp modelers. Connection points are practical for live audio workflows, including a combo XLR / 1/4-inch input, two XLR outputs, and powerCON TRUE1 input and output connectors for streamlined integration into larger PA systems.

The cabinet uses 15 mm birch plywood with a textured finish and powder-coated steel grille for stage-ready durability. Side and bottom handles support easier load-in and repositioning during rehearsals, touring, and event production. For bands, rental providers, and production teams needing a purpose-built powered wedge from Yorkville, the EL12M offers a straightforward monitor solution with flexible voicing and professional connectivity.

Downloads

View full details

Specifications

Power & Performance
Power Rating
1200 W Peak / 600 W Program
Max SPL
132 dB Peak (120 dB Continuous)
Frequency Response
60 Hz - 20 kHz (+/- 3 dB)
Crossover Frequency
1500 Hz
Drivers
LF Woofer
12" Coaxial Woofer with 2.5" Voice Coil
HF Driver
1" HF Driver with 1.75" Voice Coil
HF Dispersion (H x V)
60° x 60°
Controls
Level Controls
Yes
EQ Controls
Mon 1, Mon 2, and Flat Modes

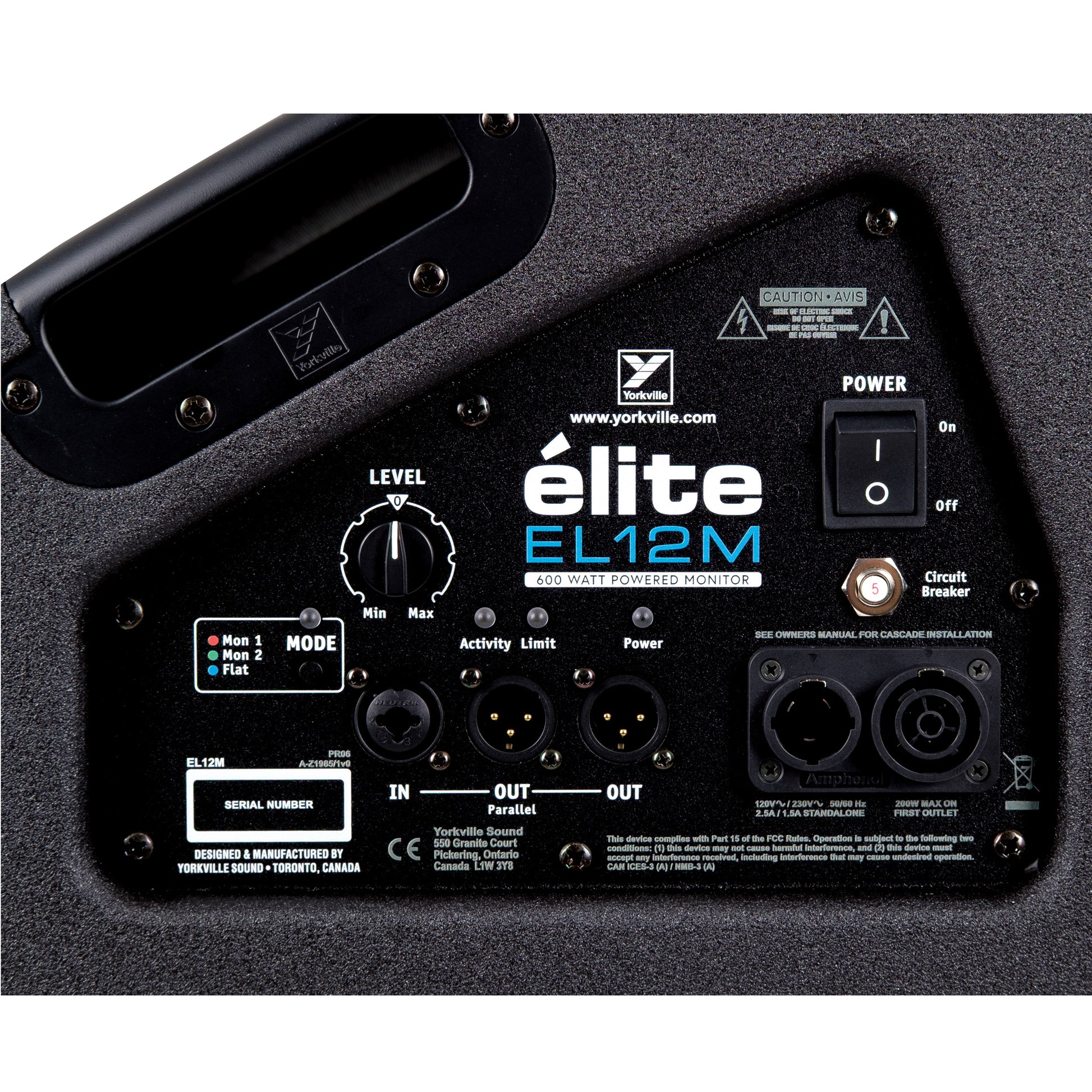

Connectivity
Inputs
1x XLR / TRS
Outputs
2x XLR
Power Cable
powerCON® TRUE1 Connectors (Input / Output)
Cabinet & Hardware
Flypoints
No
Bar Handles

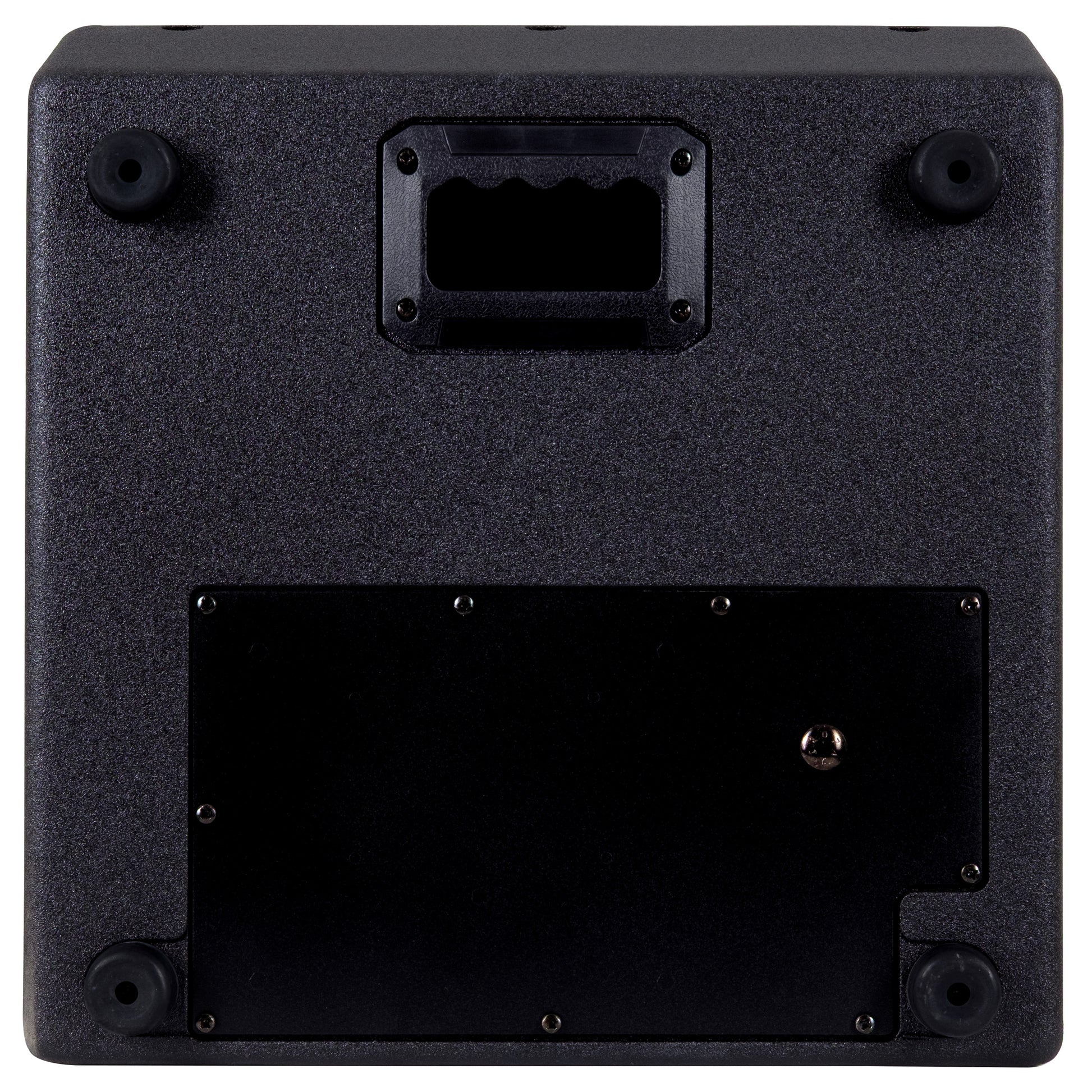

2x Side, 1x Bottom
Pole Mount Adapter
No
Enclosure Materials
15 mm Birch Plywood
Cabinet Finish
Textured Paint
Grille
Powder-Coated Steel
Power & Physical
Power Consumption (Typ / Max)
2.5A, 6A
Dimensions (DWH)
17" x 16.3" x 12.2" / 43.2 cm x 33.8 cm x 31 cm
Weight
38.7 lbs / 17.6 kg
