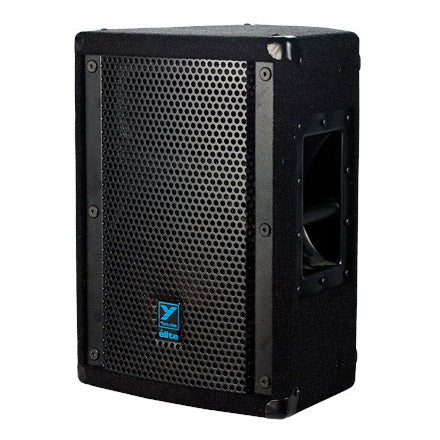

- System TypePowered Loudspeaker
- Active or Passive Active
- Power Rating (Watts) 325 Watts (650 Watts Peak)
- Max SPL (dB) 129dB Peak (123dB Continuous)
- Frequency Response (Hz +/- 3dB) 65 - 20k
- Crossover Frequency (Hz) 1500
- Driver Configuration 10-inch / 1-inch
- HF Dispersion (°H x °V) 100 x 25
- HF Protection Peak and Average Limiting
- LF Protection Excursion, RMS
- Cooling Scheme Convection
- Power Cable Removable IEC
- Power Switch Yes
- Power Consumption (typ/max) 120VA / 200VA
- Inputs 1 Combijack (XLR / 1/4-inch)
- Input Impedance (Bal/UnBal) 4k ohms / 2k ohms
- Input Sensitivity (Vrms Sine) Line in 1.4 at center, 0.35 at max
- Level Controls Gain
- EQ Controls Bass, Treble
- Limiter Peak and Average limiting on horn and woofer
- LED Indicators Power, Clip
- Corners Metal
- Feet Plastic Glides
- Bar Handles One Side
- Flying Hardware 5 (2 Top, 2 Bottom, 1 Pullback), 1/4" Threading
- Pole Mount Adapter (1 3/8"-3.5cm) Yes
- Enclosure Materials 15mm (5/8-inch) 11-ply Russian Birch
- Port(s) Rear
- Grille Perforated Metal
- Covering / Finish Black Ozite (Carpet)
- Dimensions (DWH xbackW, inches) 12 x 13 x 18.5 x 5.5
- Dimensions (DWH xbackW, cm) 30 x 33 x 45 x 14
- Weight (lbs/kg) 34 / 15.5
