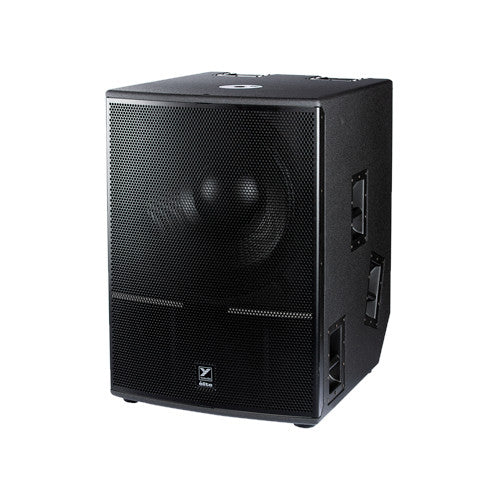

- System TypeRear Horn Loaded Subwoofer
- Active or Passive Active
- Power Rating (Watts) 2400 watts (3600 Watts Peak)
- Max SPL (dB) 142dB Peak (136dB Continuous)
- Frequency Response (Hz +/- 3dB) 32 - 150 (Hz +/- 3dB)
- LF Driver(s) 21-inch Cast Frame Woofer w/6-inch Voicecoil
- LF Protection Thermal / Overcurrent (X-max) / Clip
- Power Consumption (typ/max) 120V (4.0A / 5.6A), 230V (2.0A / 2.8A)
- In / Out Connections
- 1 x XLR Input
- 1 x XLR Mono Blend Input
- 1 x ¼-inch Link Input
- 1 x ¼-inch Link Output
- 1 x XLR Link Output
- Level Controls Master - Sub Level
- LED Indicators Power, Activity, Protection (Clip, X-Max, Temp)
- Other Controls / Features
- Active Controls: Mode - 1 Punchy, 2 Smooth, 3 Deep
- High Frequency Roll-off - 80Hz to 150 Hz
- Wheels 2 x Rear tilt-back
- Bar Handles 1 x (Left Side ), 1 x (Right Side)
- Pole Mount Adapter (1 3/8"-3.5cm) 1 (Top) (1 3/8-inch-3.5cm)
- Enclosure Materials 15mm (5/8inch) 11-ply Russian Birch
- Covering / Finish Black Ultrathane Paint
- Dimensions (DWH xbackW, inches) 30.5 x 25.5 x 36 (D/W/H)
- Dimensions (DWH xbackW, cm) 77.5 x 64.1 x 91 (D/W/H)
- Weight (lbs/kg) 202 / 92
