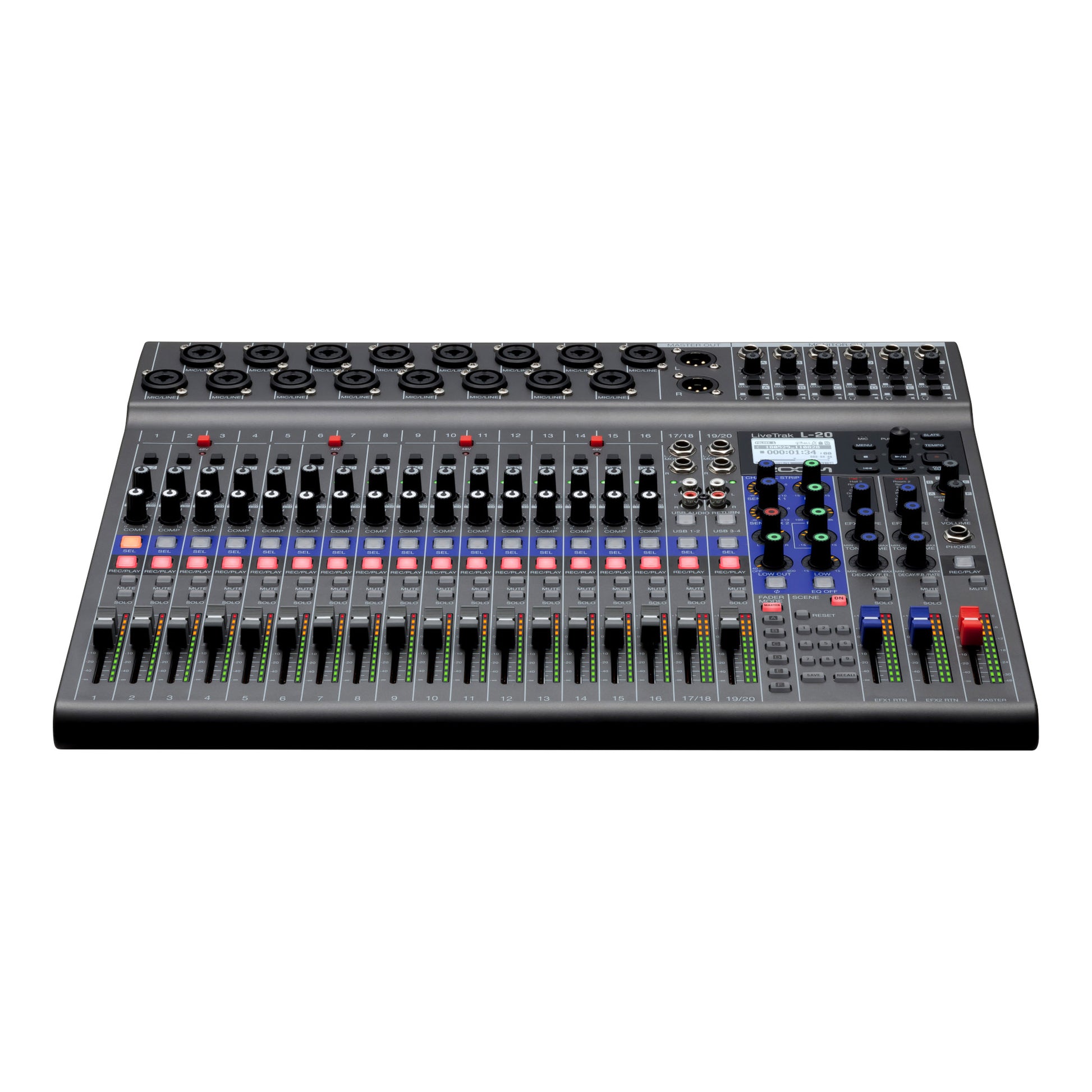

• Zoom LiveTrak L-20 Digital Mixer front
1 1

Zoom LiveTrak L-20 Digital Mixer

Zoom LiveTrak L-20 Digital Mixer

SoundPro Item: 34980 | Part Number: L20

$999.99
$999.99 $999.99
Your Price Sold out
MSRP: $999.99 | MAP: $999.99

Usually ships in 5-7 business days

  • 20 discrete channels (16 mono plus 2 stereo) with XLR or ¼-inch connectivity
  • 22-track simultaneous recording, 20-track playback
  • 22-in/4-out USB audio interface connectivity
  • Records up to 24bit/96kHz audio to SD card
  • 48V phantom power
  • Hi-Z connectivity (channels 1-2)
  • 26dB pad (channels 3-16)
  • Built-in compression control (Channels 1-16)
  • Solo buttons for individual channels
  • Variable frequency low-cut control
  • Main outputs plus 6 customizable monitor outputs
  • Dedicated headphone output for sound engineer
  • Scene saving function, up to 9 scenes saved at a time
  • 20 built-in chorus, delay and reverb effects with adjustable parameters
  • Two effect busses
  • Built-in slate mic
  • Class-compliant mode (for iOS compatibility)
  • Compatible with Remote Mixer app for iPad
  • Automatic recording starting/stopping capability
  • Pre-record function
  • Import/export projects with USB 2.0 host port
  • Compatible functions for ZOOM FS01 footswitch
  • Automatic power-save function
Log in or register for YOUR best price

The LiveTrak™ L-20 is the new digital console offering everything creators need to mix, monitor, and record complex productions. With 20 discrete audio channels and six individual custom monitor mixes, the Zoom LiveTrak L-20 Digital Mixer is built for bigger, bolder arrangements.

The LiveTrak L-20 is designed to mix bigger. It features 20 inputs (16 mono mic/line inputs and two stereo inputs), all with independent 3-band mid-parametric EQ. The 16 mono inputs offer stand-alone compressor control.

View full details
  • Number of Output Channels
    • Master Out: 1
    • Monitor Out: 6
    • Phones: 1
  • Inputs
    • Mono (Mic/Line)
      • Type: XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)
      • Input Gain: PAD OFF: +16 – +60dB| PAD ON: − 10 – +34 dB |Hi-Z ON: +6 – +50 dB
      • Input Impedance: XLR: 3 k Ω | TRS: 10 k Ω /1 M Ω (when Hi-Z ON)
      • Max. Input Level: PAD OFF: 0 dBu (at 0 dBFS) | PAD ON: +26 dBu (at 0 dBFS)
      • Phantom Power: +48V
    • Stereo (Line)
      • Type: TS phone/RCA pin (unbalanced) jacks
      • Max. Input Level: +10 dBu
  • Outputs
    • Master Out
      • Type: XLR jacks (balanced)
      • Max. Output Level: +14.5 dBu
      • Output Impedance: 100 Ω
    • Monitor Out A-F (with balanced output) Connected to Monitor Speakers
      • Type: TRS phone jacks (balanced)
      • Max. Output Level: +14.5 dBu
      • Output Impedance: 100 Ω
    • Monitor Out A-F (with unbalanced output) Connected to Headphones
      • Type: standard stereo phone jacks
      • Max. Output Level: 42 mW + 42 mW at 60 Ω
      • Output Impedance: 100 Ω
    • Phones
      • Type: standard stereo phone jacks
      • Max. Output Leevel: 42mW + 42mW at 60 Ω
      • Output Impedance: 100 Ω
  • Buses
    • Master: 1
    • Monitor: 6
    • Send EFX: 2
  • Channel Strip, Comp
    • Low Cut: 40–600 Hz, 12dB/OCT
    • EQ: HIGH: 10 kHz, ± 15 dB, shelving | MID: 100 Hz – 8 kHz, ± 15 dB, peaking | LOW: 100 Hz, ± 15 dB, shelving
  • Level Meters12 level segments
  • Send Effects Types
    • EFX 1
      • Hall 1
      • Hall 2
      • Room 1
      • Plate
      • Church
      • DrumAmb
      • GateRev
      • Vocal 1
      • Vocal 2
      • Vocal 3
    • EFX 2
      • Hall 3
      • Room 2
      • Spring Delay
      • Analog P-P Dly
      • Vocal 4
      • Chorus 1
      • Chorus 2
  • Recorder
    • Max. Simultaneous Recording Tracks: 22 at 44.1/48/96 kHz
    • Max. Simultaneous Playback Tracks: 20
    • Recording Format: WAV 44.1/48/96 kHz, 16/24-bit, mono/stereo
    • Recording Media: 4GB–32GB SDHC cards (Class 10 or higher) , 64GB–512GB SDXC cards (Class 10 or higher)
  • Audio Interface
    • 44.1/48kHz
      • Recording: 22 channels
      • Playback: 4 channels
    • Bit Depth: 24-bit
    • Interface: USB 2.0
  • Card Reader ClassMass Storage: USB 2.0 High Speed
  • USB Host ClassUSB 2.0 High Speed
  • Sampling Frequency44.1/48/96 kHz
  • Frequency Characteristics
    • 44.1kHz -1dB: 20Hz - 20kHz
    • 96kHz -3dB: 20Hz - 40kHz
  • EIN (actual measurements)−128dB EIN (IHF-A) at +60dB/150Ω input
  • DisplayLCD with backlight (128x64 resolution
  • PowerAC adapter DC12V 2A (included Zoom AD-19 adapter)
  • Power Consumption24W max.
  • Dimensions (WxDxH)17.52" x 15.29" x 3.25"
  • Weight8.18 pounds
