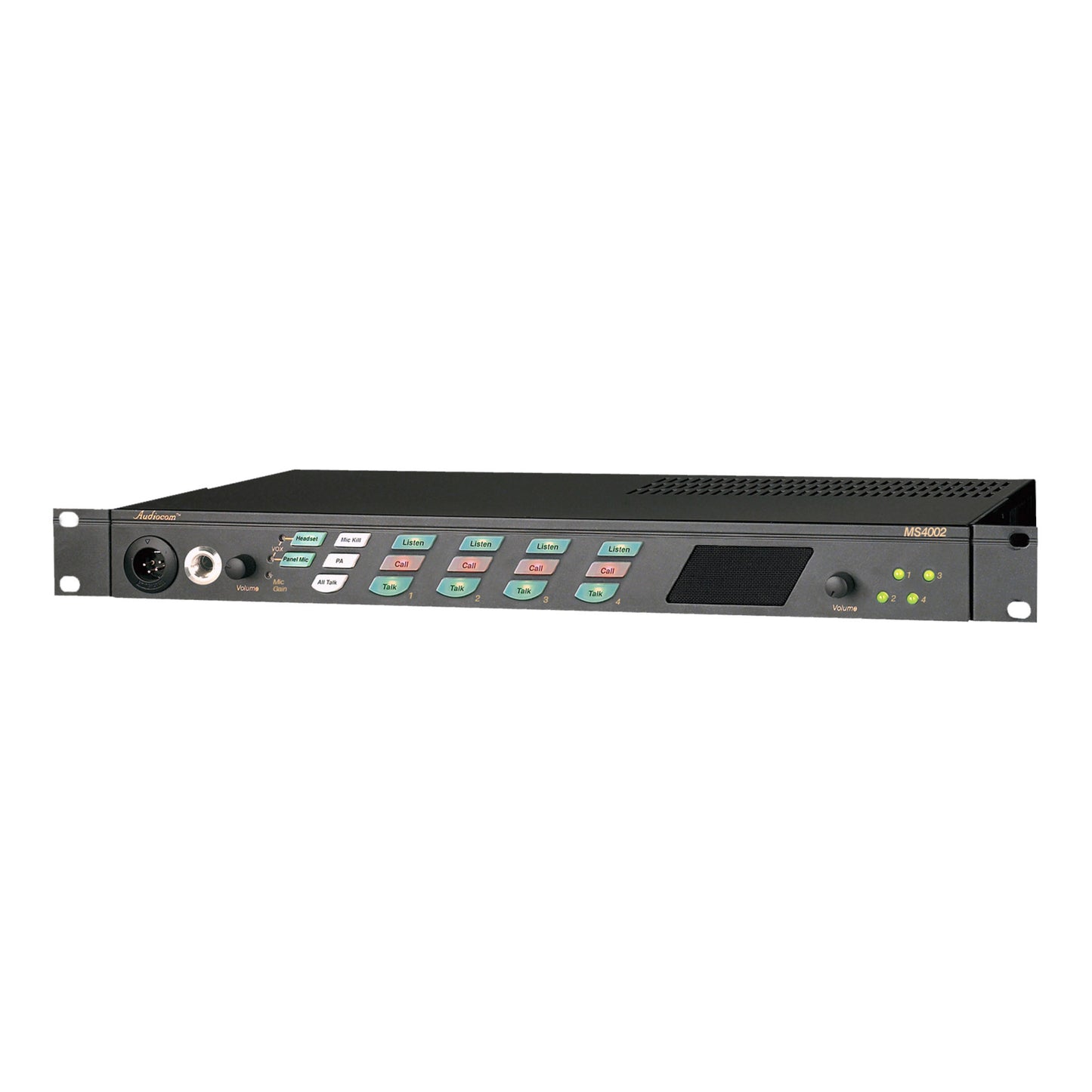

The RTS MS-4002 is a complete four-channel, balanced audio master station and 4 amp system power supply in a single unit. You simply plug it into any AC power outlet from 100 to 240 volts, add a microphone or headset, connect intercom stations to the back panel, and you are ready to communicate. The MS-4002 is now equipped with an advanced programming mode on the front panel, eliminating the need for internal DIP switches. It also has a feature that automatically senses the type of headset attached to the unit, either dynamic or electret. The MS-4002 fits in a standard 19" equipment rack and is 1 rack unit high. The MS-4002 is Clear-Com compatible, with the ability to run in unbalanced mode.

RTS MS-4002 Features

  • Auto-Sensing Headset Connector
  • Speaker Station or Headset Station
  • Voice Activated Microphone (VOX)
  • Public Address (PA) Output, with PA key
  • Back-lit Keys
  • Incoming Call Indications
  • Mic Kill Key
  • Program Input for Each Channel
  • Listening with External Powered Speakers
  • Expandable
  • Instantaneous Auto-Reset
  • Clear-Com Compatible
  • MS-4002 4-Channel User/Main Station1
  • Power Requirements
    • AC Input: 100-240VAC, 50/60Hz
    • Channel Power
      • 24VDC nominal (18 to 30VDC), 65 to 150mA
      • MS-4002 is capable of supplying 3.6A overall
    • Dimensions (HxWxD): 1.75x19x10.31” (44.5x483x261.9mm)
    • Weight: approximately 4.5lb (2kg)
    • Environmental Requirements
      • Storage: -20°C to 80°C; 0% to 95% humidity, non-condensing
      • Operating: -0°C to 50°C; 0% to 95% humidity, non-condensing
  • Dynamic-mic Headset
    • Microphone: 50 to 200Ω, dynamic (balanced or unbalanced)
    • Headphones: 150 to 600Ω, monaural
    • Connector Type: XLR-4M
    • Pin 1: Microphone low
    • Pin 2: Microphone high
    • Pin 3: Headphone high
    • Pin 4: Headphone low
  • Panel Microphone Input
    • Microphone Type: Electret condenser
    • Power: Phantom (+5VDC)
    • Nominal Level: -42dBu
    • Maximum Level: -25dBu
    • Connector Type: KP12 (MCP-90 series, stereo plug connector)
  • Program Input
    • Input Level: 100mV maximum
    • Voltage Gain: 25 ±3dB
    • Output Level (to intercom channel): 1.0Vrms nominal 2.3Vrms max.
    • Input Impedance: 75k
    • Common Mode Rejection: >50 dB
    • Connector Type: 9-pin female D-sub (DE9S)
    • Pin 1: Ground
    • Pin 2: Program 1 input low
    • Pin 3: Program 2 input low
    • Pin 4: NC
    • Pin 5: NC
    • Pin 6: Program 1 input high
    • Pin 7: Program 2 input high
    • Pin 8: NC
    • Pin 9: NC
  • Intercom Channels, Balanced Mode (Both Back Panel and internal switches (BAL/UNBAL) must be set to same setting) Output Level: 1 Vrms nominal
    • Input Impedance: 300Ω
    • Bridging Impedance: >10kΩ
    • Sidetone: -40dB, 35dB adjustable range
    • Call Signaling
      • Send: 20kHz ±100Hz, 0.5Vrms ±10%
      • Receive: 20kHz ±800Hz, 100mVrms
      • Mic-Kill Frequency
        • Send: 24kHz ±300Hz, 0.5Vrms ±10%
        • Detect: 24kHz ±800Hz, 100mVrms
      • Noise Contribution: < -70dB
        • Common Mode Rejection Ratio: >50dB
        • Connector Type: One XLR-3M and XLR-3F pair, wired in parallel, for each channel (permits “loop-thru” connection).
  • XLR-3 Balanced Configuration Pinouts
    • Pin 1: Common
    • Pin 2: Intercom audio low and +24VDC input
    • Pin 3: Intercom audio high and +24VDC input
  • Intercom Channel, Unbalanced Mode (Both Back Panel and internal switches (BAL/ UNBAL) have to be set to same setting)
    • Output Level: 1Vrms ±10%
    • Input Impedance: 200Ω
    • Bridging Impedance: >10kΩ
    • Call Signaling
      • Send: 11 ±3VDC
      • Receive: 4VDC minimum
      • Connector Type: Uses same connectors as for balanced mode, above, but with pinouts modified by BAL/UNBAL switch on back panel as follows:
        • XLR-3 Unbalanced Configuration Pinouts
          • Pin 1: Common
          • Pin 2: +24VDC input
          • Pin 3: Intercom audio high
        • PA Output
          • Output Level: 235mVrms nominal
          • Connector Type: ⅛-inch Stereo Phone Jack
          • Tip: PA output high
          • Ring: Not used
          • Sleeve: Common
        • Speaker Output
          • Output Level: 0 dB nominal (1.0Vrms)
          • Output Impedance: 1000Ω nominal
          • Frequency Response: 200Hz to 8kHz +1/-3dB
          • Connector Type: RCA Phono Jack
          • Tip: Speaker output high
          • Sleeve: Common
        • Expansion Input /Output
          • Type: 2.0 mm stereo phone jack
          • Tip: Talk output
          • Ring: Listen input
          • Sleeve: Common
        • Headphone Amplifier
          • Voltage Gain: 30 ±3dB
          • Maximum Output: 250mW ±10% into 150Ω, 65mW ±10% into 600Ω
          • Frequency Response: 200Hz to 8kHz +1/-3db
          • Incoming Call Beep Tone: 2kHz, at the headphones
          • Total Harmonic Distortion: Less than 0.2% at 200mW
          • Sidetone: 18 ±2dB, adjustable
