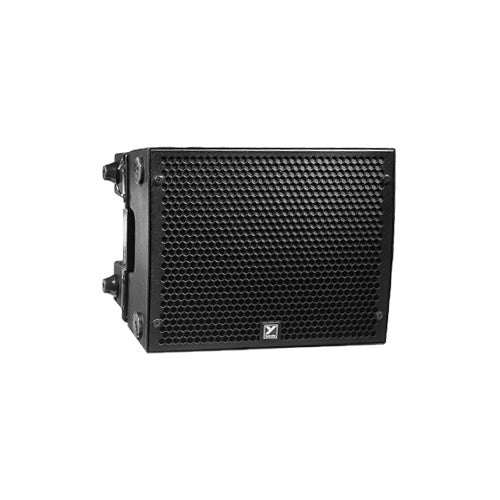

Yorkville PSA1 1200W 4x6-Inch Powered Line Array Speaker

Yorkville Sound's Paraline Series active full range loudspeaker system delivers the clarity and precision of a complex line array system in a compact, user friendly format. Innovative cabinet design uses Yorkville Sound's proven Paraline high frequency lens technology pioneered in our flagship VTC Elevation Series line array cabinets.

Two BMS 1.75-inch compression drivers mounted to the patented Paraline lens delivers a focused 15-degree vertical dispersion and wide 110 degree horizontal coverage. The 6-inch woofers provide a tight and ultra responsive low frequency program.

Ideal for mobile PA applications in venues where access to complex trussing or roof hangs isn't practical, the Yorkville PSA1 cabinet mounts quickly and securely on a typical speaker stand. Innovative dual position stand mount offers two potential cabinet angles for expanded setup options. Up to two PSA1 cabinets can be stacked safely and securely on a single traditional stand.

Yorkville PSA1 Features

• Ultra High Performance Compact Active PA System
• Uses Patented Paraline Horn Lens Technology (from Yorkville Sound's Flagship VTC Elevation Series Vertical Array Touring Systems)
• High quality Speaker Components
• Focused 15° Vertical Dispersion for Minimum Interference Between Arrayed Cabinets
• Wide 110° Horizontal Dispersion Pattern
• Manufactured Using Light-weight/Strong ABS Cabinet Material
• Stacks using Standard Speaker Stand on Integrated Dual Angle Stand Mount Adaptor (Maximum Two Cabinets per stand)
• Installation Hardware Available
• Up to Four PSA1 Cabinets Can Be Easily Powered on one 15 Amp Circuit
• Optional PSA1COVER available
• Made in Canada

• PSA1 1200W 4x6-Inch Powered Line Array Speaker1

• Active or PassiveActive
• Power Rating (Watts) 700 (1200 Watts Peak)
• Biampable Biamp
• Max SPL (dB) 128dB Peak (125dB Continuous)
• Frequency Response (Hz +/- 3dB) 75Hz-20K
• Crossover Frequency (Hz) 1.2K
• Driver Configuration 2x1", 4x6"
• HF Driver(s) 2x1-inch Ceramic w/ 1.75-inch VoiceCoil
• HF Power Rating (Watts) 75 Watts (200 Watts Peak)
• HF Dispersion (°H x °V) 110x15
• HF Protection Peak and Average Limiting
• LF Driver(s) 4x6-inch neo with 45mm VC
• LF Power Rating(Watts) 675 Watts Program (1000 Watts Peak)
• LF Impedance (Ohms) 2 Ohm Load
• LF Protection Excursion, RMS
• HF Power Amplifier (Watts) 75W
• HF Amplifier Type 2-Tier Class H
• LF Power Amplifier (Watts) 625W
• LF Amplifier Type Class D
• Cooling Scheme Convection
• Power Cable Removable Locking IEC Input and Loop Thru Output
• Power Switch Yes
• Power Consumption (typ/max) 135 VA / 225 VA
• Inputs 1 Combijack (XLR / 1/4-inch)
• Input Sensitivity (Vrms Sine) Line in 1.4 at center, 0.35 at max
• Level Controls Volume
• EQ Controls HF Boost switch, Fullrange/Sub switch
• Limiter Peak and Average limiting on horn and woofer
• LED Indicators Power, Limit, Clip
• Optional Flying Hardware
  • 1 x PSA1RIGKIT per cabinet
  • 1 x PSA1FRAME1 per hung
• Enclosure Materials Injection Molded ABS
• Baffle Material Injection Molded ABS
• Covering / Finish Paint
• Optional Covering / Finishes Optional Colors available
• Dimensions (DWH xbackW, inches) 14.5 x20.5 x16
• Dimensions (DWH xbackW, cm)36.8 x 52.1 x 40.6
• Weight (lbs/kg) 52 / 23.6
