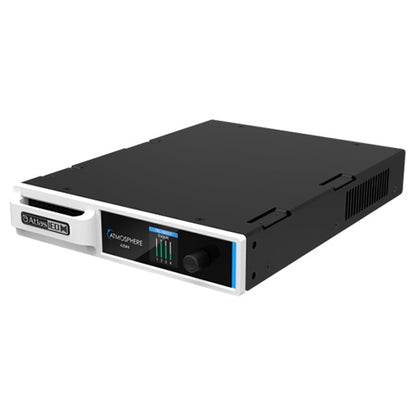

AtlasIED AZM4 4-Zone DSP Audio Processor for Atmosphere Systems
AtlasIED AZM4 4-Zone DSP Audio Processor for Atmosphere Systems
SoundPro Item: 60514 | Part Number: AZM4
Usually ships in 5-7 business days
- Tilter Filter And Auto-Gain Adapt Output To Changing Room Acoustics Automatically
- Learning Ambient Noise Sensing Maintains Consistent Coverage Without Manual Adjustment
- Built-In Message Player And Bell Scheduler Enable Fully Automated Facility Audio
- Room Combine And Groups Allow Flexible Zone Routing For Multi-Space Environments
- Progresssive Web App Interface Requires No Software Install For On-Site Configuration
- High Priority GPI Input Enables Direct Integration With Alarm And Emergency Systems
- Accessory Self-Heal Maintains System Reliability Without Manual Intervention
The AtlasIED AZM4 is the central processor of the Atmosphere audio control ecosystem, designed for commercial integrators managing multi-zone audio in restaurants, retail environments, houses of worship, schools, and corporate facilities. Unlike simple DSP crossovers, the AZM4 combines processing power with automated system intelligence — handling ambient noise compensation, loud noise detection, room combining, and scheduled paging from a single rackmount unit.
Integrators working with third-party control systems will find native module support for RTI, Crestron, Extron, and AMX, reducing programming overhead and ensuring reliable interoperability. Up to 16 plug-and-play wall plate accessories and sensors connect across two dedicated accessory ports, each rated to 1,000 feet, giving installers flexible topology without added infrastructure cost.
System setup and ongoing management are handled through a Progressive Web App interface accessible via Ethernet or the unit's onboard Wi-Fi access point — no proprietary software installation required. The device-agnostic interface supports tablets and laptops directly on-site, making commissioning and adjustments straightforward for both initial install and service visits. A large library of AtlasIED speaker presets further reduces tuning time in the field.

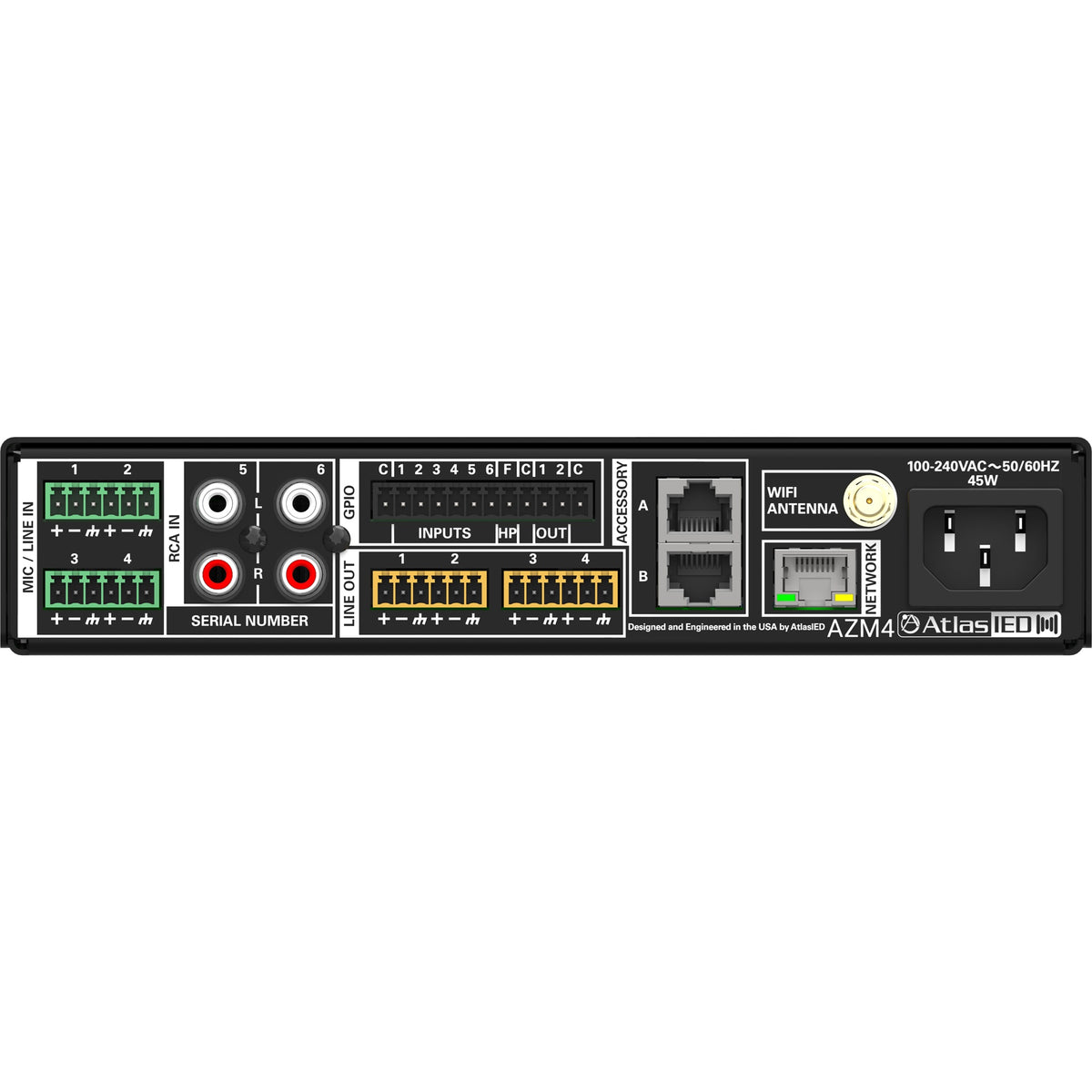

- System TypeSignal Processor
- Output Power
- Mic/Line Inputs: 4 (Euroblock)
- RCA: 2 (mono-summed)
- Line Outputs: 4 (Euroblock)
- General Purpose Inputs: 6 (Euroblock)
- High Priority Inputs: 1 (Euroblock)
- General Purpose Outputs: 2 (Euroblock)
- Accessory Ports: 2 (RJ45)
- Network Port: 1 (RJ45)
- Power Main Requirements100 - 240 VAC, 50 - 60 Hz (C14 Mains Inlet Connector)
- Audio Inputs
- Balanced Mic/Line Inputs
- Connector Type: 3.5mm Pitch Euroblock
- Color: Green
- Sensitivity: +4dBu with Gain Set to 0dB
- Input Gain: 0 - 60dB in 6dB Steps
- Phantom Power Voltage: +48VDC 10mA
- Accepts Unbalanced Inputs: Yes
- Maximum Input Level: +20dBu (7.72 Vrms) with Gain Set to 0dB
- Input Impedance: 3.9kΩ
- EIN: -125dBu with 150Ω Source Impedance and 20kHz BW
- CMRR: Typically 65dB at 1kHz
- Maximum Cable Size: 18AWG
- Minimum Cable Size: 24AWG
- RCA
- Right Channel Color: Red
- Left Channel Color: White
- Type: Mono-summed Pairs
- Sensitivity: -10dBV
- Maximum Input: 2.4 Vrms (7.6dBV / 9.8dBu) for Both Inputs Driven and 4.78 Vrms (13.6dBV / 15.8dBu) for a Single Input
- Balanced Mic/Line Inputs
- Audio Outputs
- Balanced Line Outputs
- Connector Type: 3.5mm Pitch Euroblock
- Color: Orange
- Maximum Output Level: +20dBu (7.75 Vrms)
- Maximum Cable Size: 18AWG
- Minimum Cable Size: 24AWG
- Balanced Line Outputs
- Audio Performance
- THD+N: <0.01% at 0dBu Input/Output with 0dB Gain at 1 kHz
- Frequency Response: ±0.5dB 20Hz - 20kHz
- Dynamic Range (S/N): >108dB Unweighted 20Hz - 20kHz, > 110dB "A" Weighted
- Crosstalk: >-78dB at 1kHz
- Latency
- Euroblock Input or RCA Input to Euroblock Output: 4.9 ms
- Accessory Input A/C to Euroblock Output: 5.9 ms
- Accessory Input B/D to Euroblock Output: 6.7 ms
- Maximum Hardware Gain: 60dB
- Input Processing
- EQ: 24dB/oct HP, PEQ, Low / High Shelf, Notch, LP / HP (BW 6, 12, 24, dB/oct)
- Dynamics: Gate, De-Esser, Compressor, Auto Gain
- Other: Gain, Mixer, Priority Router
- Output Processing
- EQ: PEQ, Tilter Filter, Low / High Shelf, Notch, LP / HP (BW 6, 12, 24, 48dB/oct) Speaker Tuning EQ Presets
- Dynamics: Ambient Noise Compression, Limiter
- Other: Delay (500 ms), Gain
- Other Connections
- General Purpose Inputs
- Contact Closure: Normally Open
- Capable of Internal Pull-up to 5VDC via User Interface
- Voltage Input: 0 - 12VDC (1.3VDC Trigger Voltage)
- High Priority Input
- Contact Closure: Normally Open
- Capable of Internal Pull-up to 5VDC via User
- Interface Voltage Input: 0 - 12VDC (1.3VDC Trigger Voltage)
- General Purpose Outputs
- Source Current: 10mA at 2VDC
- Maximum Sink Current: 180mA
- Maximum Sink Voltage: 24VDC
- Accessory Ports
- Maximum Accessories per Port: 8
- Maximum Accessories per AZM: 16
- Maximum Bus Length: 1000ft
- Maximum Audio Wall Plates per Port: 1
- Ethernet: 10/100mbps
- General Purpose Inputs
- Mechanical
- Airflow: Front to back
- Operating Ambient Temperature Range: 0° - 40°C
- Cooling System: Forced Air with Side and Back Panel Venting
- Energy Consumption
- Max: 130 BTU / Hr
- No Accessories: 75 BTU / Hr

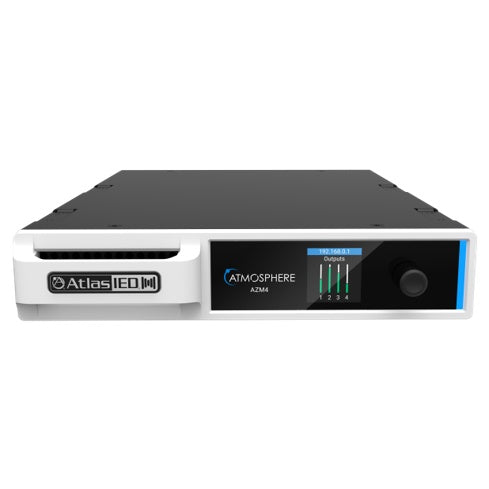

- Front Panel
- Screen: 128 x 128 Color TFT Normally White, 1.45"
- Encoder: 24 Detent, Push Button
- Light Bar: RGB (Blue = On, Red = Live Fault)
- WiFi
- Type: 802.11 b/g/n 2.4GHz
- Free Air Range: 60 ft
- Dimensions and Weight
- Rack Mount Requirements: 1RU, 19”
- Dimensions (with Rack Ears) – Unit: W 19" x H 1.75" x D 11.7" (483mm x 45mm x 297mm)
- Dimensions (shipping): W 13.5" x H 4.75" x D 14" (343mm x 121mm x 356mm)
- Weight (unit): 4.735 lbs (2.148kg)
- Weight (shipping): 7.3 lbs (3.3kg)
- Agency Approvals
- Safety
- Conforms to: ANSI / UL 62368-1
- Certified to: CAN / CSA C22.2 #62368-1
- FCC/ISED: Part 15 (Class B) (US), ICES-003 (Canada)
- Safety
