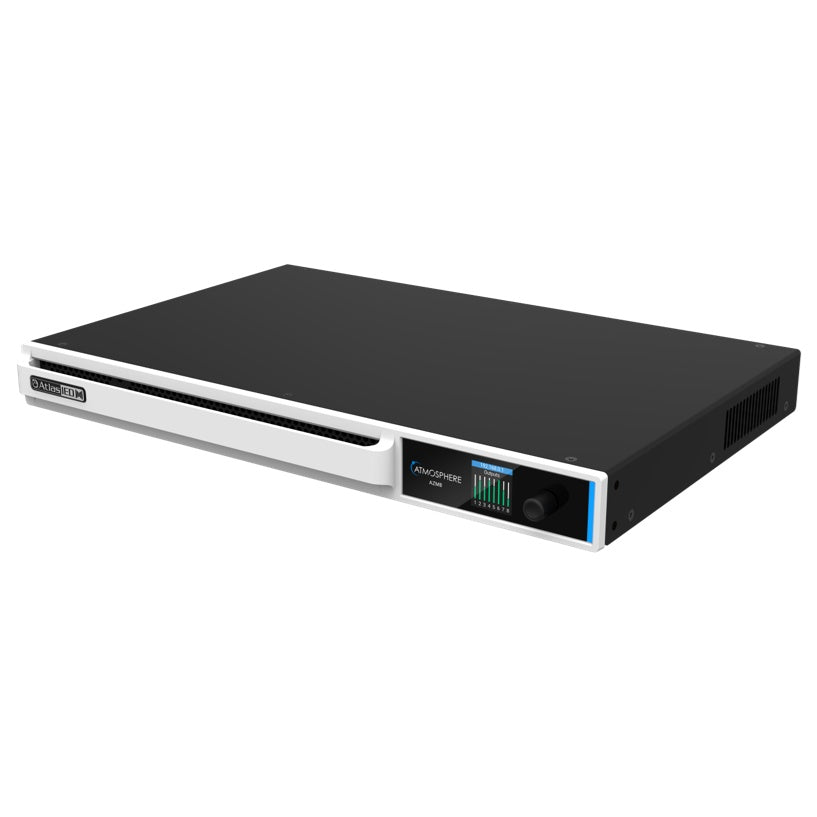

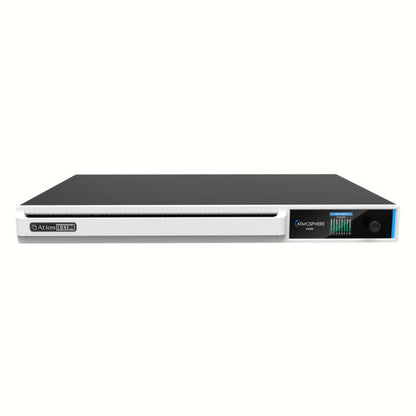

AtlasIED AZM8 Atmosphere Audio Processor | 8-Zone

AtlasIED AZM8 Atmosphere Audio Processor | 8-Zone

SoundPro Item: 57781 | Part Number: AZM8

$2,306.99
$2,426.99 $2,306.99
Your Price Sold out
MSRP: $2,426.99 | MAP: $2,306.99

In stock and ready to ship

  • Tilter Filter And Auto Noise Compensation Maintain Consistent Levels Without Manual Intervention
  • Built-In Sound Masking Suite Eliminates Need For A Separate Masking Processor
  • Bell Scheduler And Message Player Reduce Reliance On External Playback Hardware
  • Room Combine And Group Routing Enable Flexible Zone Management Across Layouts
  • App-Less Virtual Wall Controller Access Via QR Code Simplifies End-User Operation
  • Progresssive Web App Interface Works On Any Device Without Software Installation
  • High Priority GPI Input Enables Direct Integration With Building Alarm Systems
Log in or register for YOUR best price

The AtlasIED AZM8 is designed for AV integrators specifying distributed audio systems in commercial installations — from corporate offices and houses of worship to education facilities and hospitality venues. As the processing core of the Atmosphere audio control system, it handles zone routing, DSP, ambient noise compensation, and scheduling without requiring a separate mixing console or third-party DSP platform.

Where the AZM8 stands apart from generic zone processors is its integrated ecosystem approach. Four accessory ports support up to 16 plug-and-play wall plate controllers and sensors — each port rated to 1,000 feet — eliminating the need for external control interfaces in most installs. The built-in message player and bell scheduler reduce reliance on additional playback hardware, while the Tilter Filter and learning ambient noise sensing automate gain and EQ adjustments that would otherwise require manual tuning or separate control logic.

Programming is handled through an on-board Progressive Web App interface accessible via Ethernet or the built-in Wi-Fi access point, meaning tablets and laptops connect directly without dedicated software installs. Third-party control is supported through certified modules for Crestron, RTI, Extron, and AMX, making the AZM8 a practical fit for enterprise-grade automation environments where the processor must integrate cleanly into an existing control infrastructure.

Downloads

View full details

Specifications

Certifications
FCC/ISED
Part 15 (Class B) (US), ICES-003 (Canada)
Dimensions
Bus Length
1000ftMaximum Audio
Dimensions (with Rack Ears) – Unit
W 19 x H 1.75 x D 11.7 inches (483 x 45 x 297 mm)
Weight
Weight (unit)
8.33 lbs (3.778kg)
Electrical
THD+N
<0.01% at 0dBu Input/Output with 0dB Gain at 1 kHz
Purpose Outputs Source Current
10mA at 2VDCMaximum
Sink Current
180mAMaximum
Sink Voltage
24VDC
Audio
Zone Count
8
Channel Support
Mono, Stereo, Subwoofer
Output Power
Power Main Requirements100 - 240 VAC, 50 - 60 Hz (C14 Mains Inlet Connector)
Frequency Response
±0.5dB 20Hz - 20kHz
Dynamic Range (S/N)
>108dB Unweighted 20Hz - 20kHz, > 110dB "A" Weighted
Crosstalk
>-78dB at 1kHz
Hardware Gain
60dB

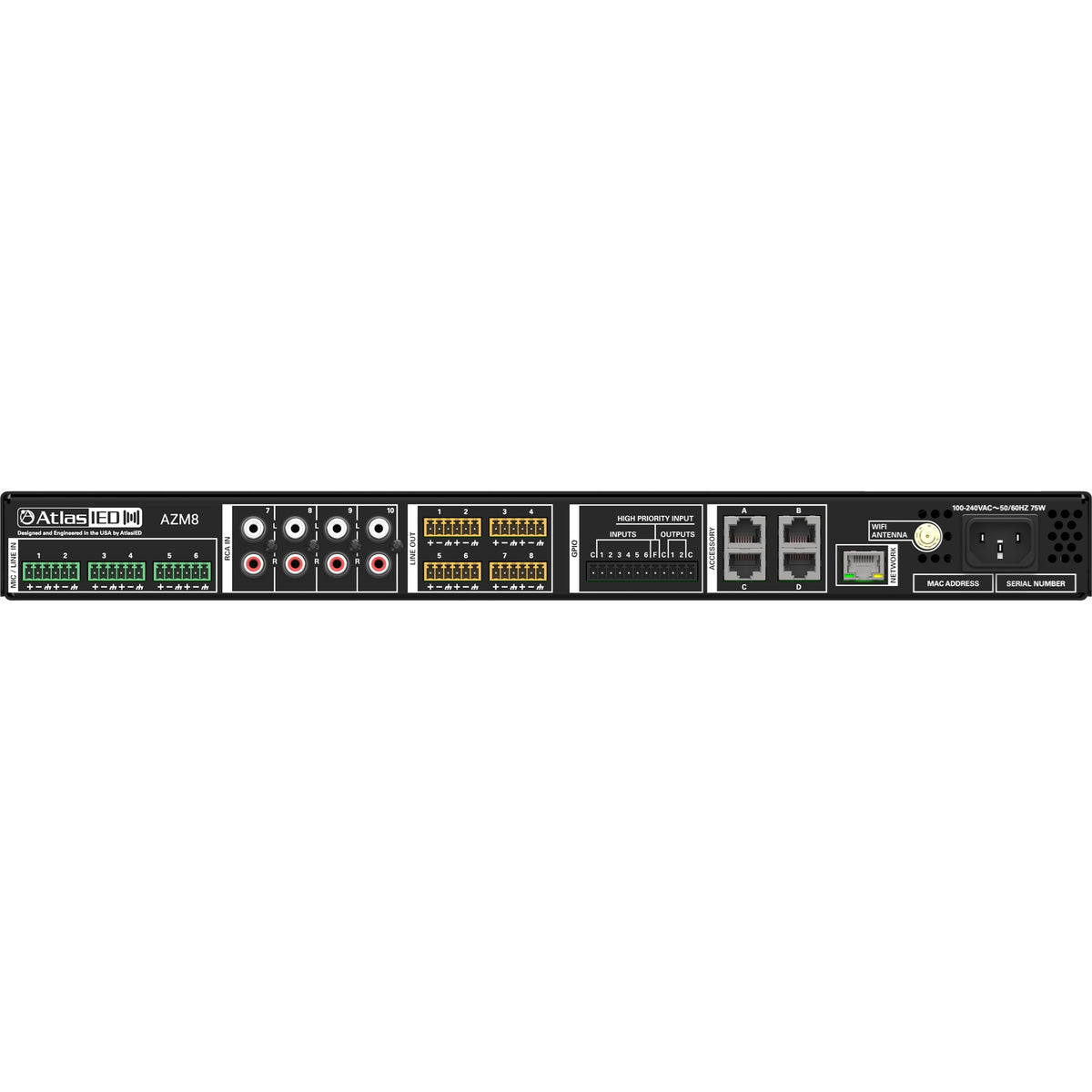

Connectivity
Accessory Ports
4
Max Accessories Per System
16
Accessory Port Range
1000 ft
Third-Party Control Modules
Crestron, RTI, Extron, AMX
Network Interfaces
Ethernet, Wi-Fi
Mic/Line Inputs
6 (Euroblock)
Line Outputs
8 (Euroblock)
General Purpose Inputs
6 (Euroblock)
High Priority Inputs
1 (Euroblock)
General Purpose Outputs
2 (Euroblock)
Network Port
1 (RJ45)
Balanced Mic/Line Inputs Connector Type
3.5mm Pitch EuroblockColor: GreenSensitivity: +4dBu with Gain Set to 0dBInput Gain: 0 - 60dB in 6dB StepsPhantom Power Voltage: +48VDC 10mAAccepts Unbalanced Inputs: YesMaximum Input Level: +20dBu (7.72 Vrms) with Gain Set to 0dBInput Impedance: 3.9kΩEIN: -125dBu with 150Ω Source Impedance and 20kHz BWCMRR: Typically 65dB at 1kHzMaximum Cable Size: 18AWGMinimum Cable Size: 24AWG
Balanced Line Outputs Connector Type
3.5mm Pitch EuroblockColor: OrangeMaximum Output Level: +20dBu (7.75 Vrms)Maximum Cable Size: 18AWGMinimum Cable Size: 24AWG
Input to Euroblock Output
4.9 msAccessory Input
A/C to Euroblock Output
5.9 msAccessory Input
B/D to Euroblock Output
6.7 msMaximum
Purpose Inputs Contact Closure
Normally OpenCapable of Internal Pull-up to 5VDC via
User InterfaceVoltage Input
0 - 12VDC (1.3VDC Trigger Voltage)
Priority Input Contact Closure
Normally OpenCapable of Internal Pull-up to 5VDC via
Maximum Accessories per Port
8Maximum
Wall Plates per Port
1Ethernet: 10/100mbps
Construction
RCA Right Channel Color
RedLeft Channel Color: WhiteType: Mono-summed PairsSensitivity: -10dBVMaximum Input: 2.4 Vrms (7.6dBV / 9.8dBu) for Both Inputs Driven and 4.78 Vrms (13.6dBV / 15.8dBu) for a Single Input
Cooling System
Forced Air with Side and Back Panel Venting
Rack Mount Requirements
1RU, 19”
Environmental
Operating Ambient Temperature Range
0° - 40°C
Shipping
Dimensions (shipping)
W 22 x H 4.75 x D 14 inches (559 x 121 x 356 mm)
Weight (shipping)
10.67 lbs (4.8kg)
Identifiers
MPN
AZM8
General
System Type
Signal Processor
RCA
4 (mono-summed)
EQ
24dB/oct HP, PEQ, Low / High Shelf, Notch, LP / HP (BW 6, 12, 24, dB/oct)
Dynamics
Gate, De-Esser, Compressor, Auto Gain
Other
Gain, Mixer, Priority Router
Accessories per AZM
16Maximum
Airflow
Front to back
Max
127 BTU / Hr
No Accessories
75 BTU / Hr
Screen
128 x 128 Color TFT Normally White, 1.45"
Encoder
24 Detent, Push Button
Light Bar
RGB (Blue = On, Red = Live Fault)
Type
802.11 b/g/n 2.4GHz
Free Air Range
60 ft
Safety Conforms to
ANSI / UL 62368-1Certified to: CAN / CSA C22.2 #62368-1
Warranty
Warranty Period
36 months from date of purchase
