AtlasIED PSR-206 Zone Page Powered Relay Pack 6 Relays
AtlasIED PSR-206 Zone Page Powered Relay Pack 6 Relays
SoundPro Item: 18483 | Part Number: PSR-206
Usually ships in 5-7 business days
- Pre-Mounted And Pre-Wired Relays Eliminate Field Assembly For Faster System Commissioning
- Silver Gold-Plated Contacts Ensure Reliable Switching Performance Over Extended Service Life
- Excess Power Supply Capacity Supports External Relays Or Indicator Lights Without Added Infrastructure
- Any Relay Converts To All-Page Mode For Flexible Zone Paging Architecture

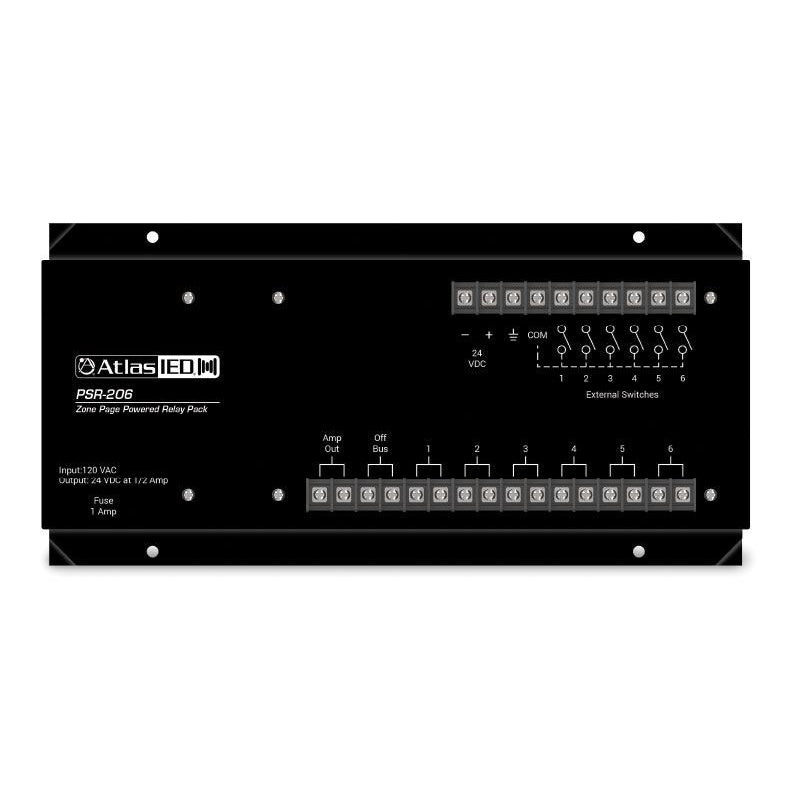

- Compact Enclosed Chassis With Silkscreened Terminal Diagram Simplifies Identification And Servicing
- Compatible With AtlasIED MPC Series For Integrated Modular Paging System Deployments
The AtlasIED PSR-206 is engineered for systems integrators and install technicians building structured zone paging systems in commercial, institutional, or industrial facilities. Designed specifically for use with the AtlasIED MPC Series modular paging communications center, this unit arrives fully wired and ready to mount — eliminating field assembly time and reducing installation error on multi-zone deployments.
The PSR-206 supports up to five selectable zones plus an all-call configuration, or six independent zones when all-call is not required. Each of the six 24VDC DPDT relays is pre-mounted and connected to the internal power supply, which delivers 500mA — with excess capacity available for driving external relays or indicator lights without supplemental power infrastructure. Silver, gold-plated contacts and clearly silkscreened terminal identification simplify commissioning and long-term serviceability.
Housed in an 18-gauge CRS chassis with a black epoxy finish, the PSR-206 is built for the compact, enclosed spaces typical of installed AV infrastructure. Its 6-foot power cord and 117VAC input make it straightforward to integrate into existing rackmounted or panel-mounted paging systems. For larger zone counts, the PSR-212 offers twelve relays in the same form factor.
Specifications
