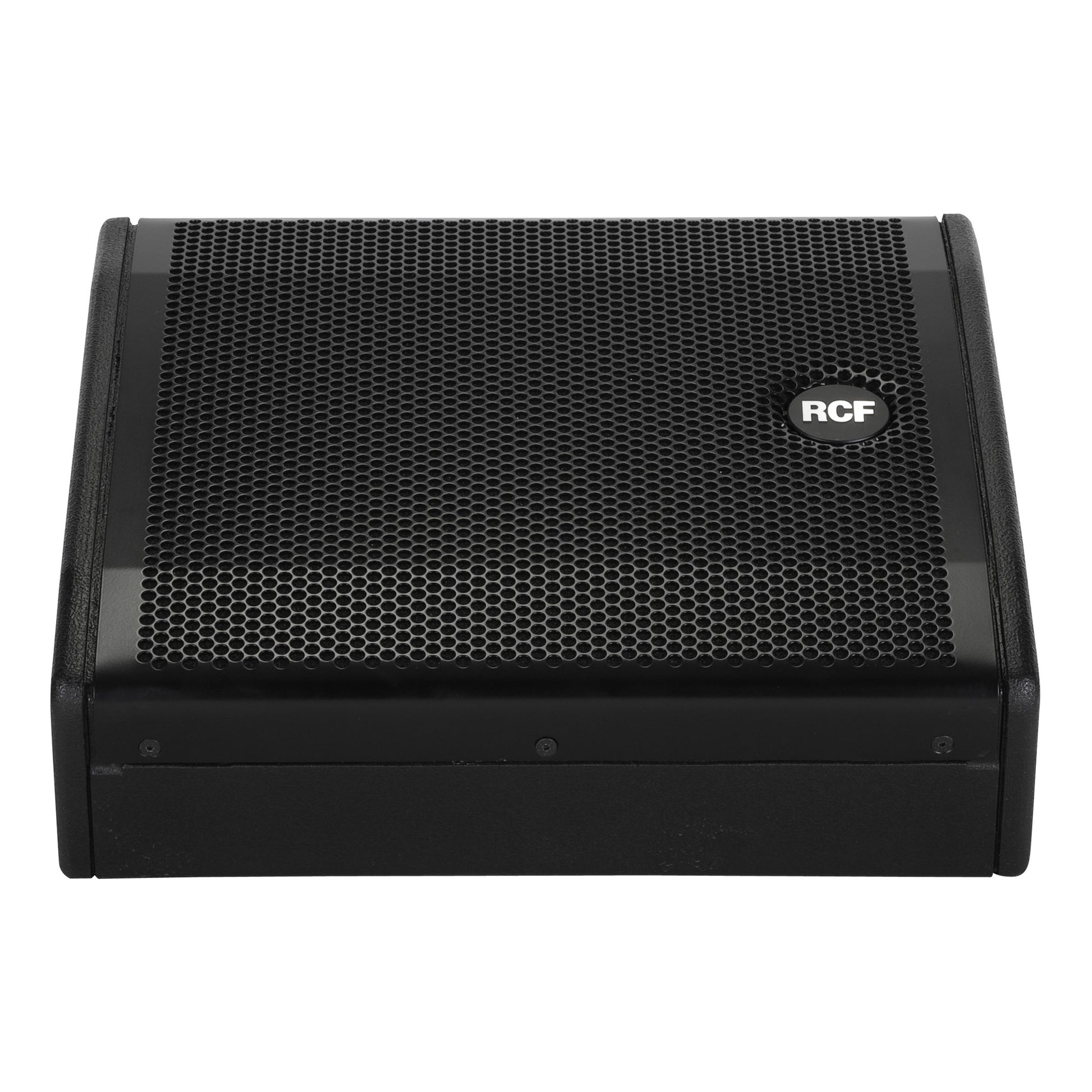

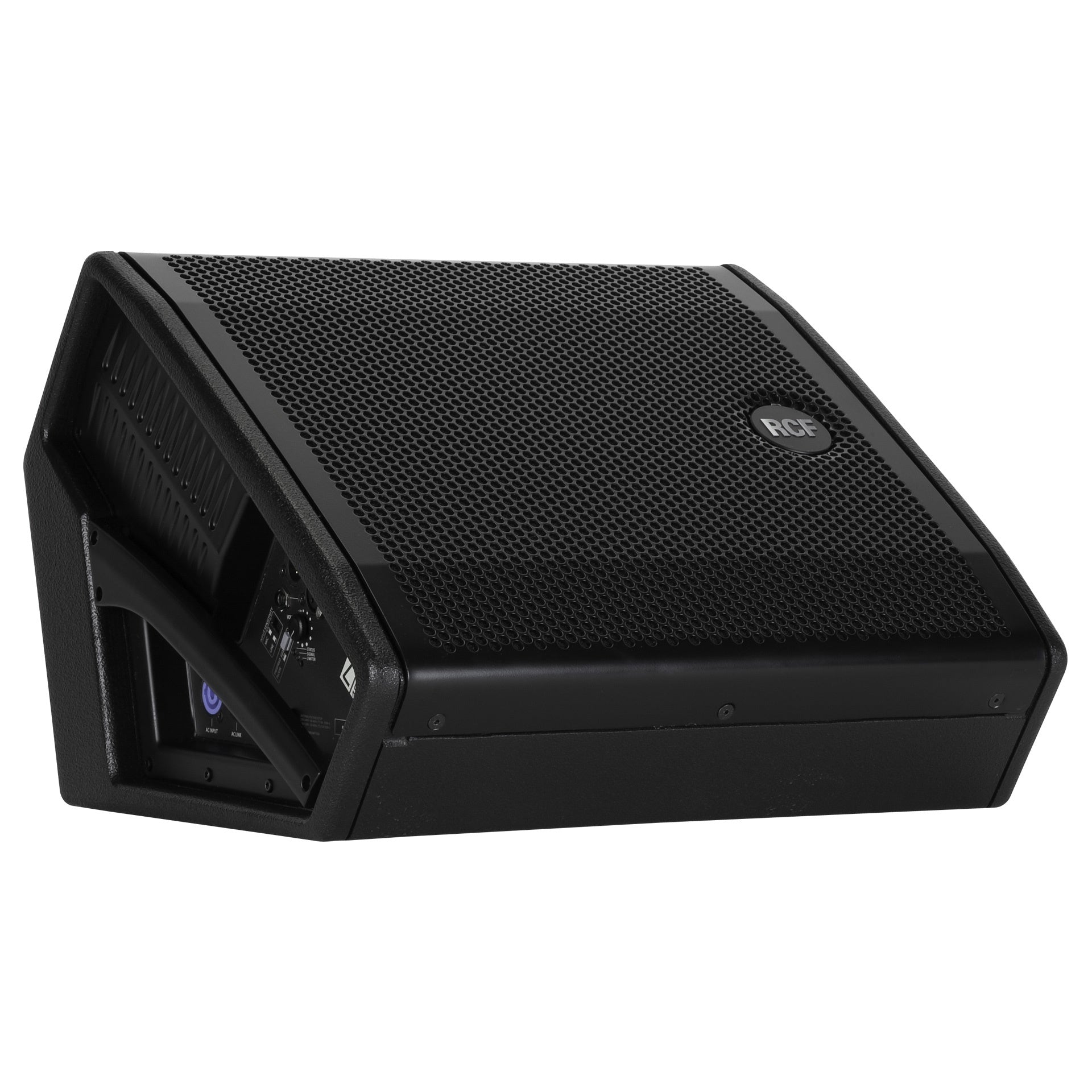

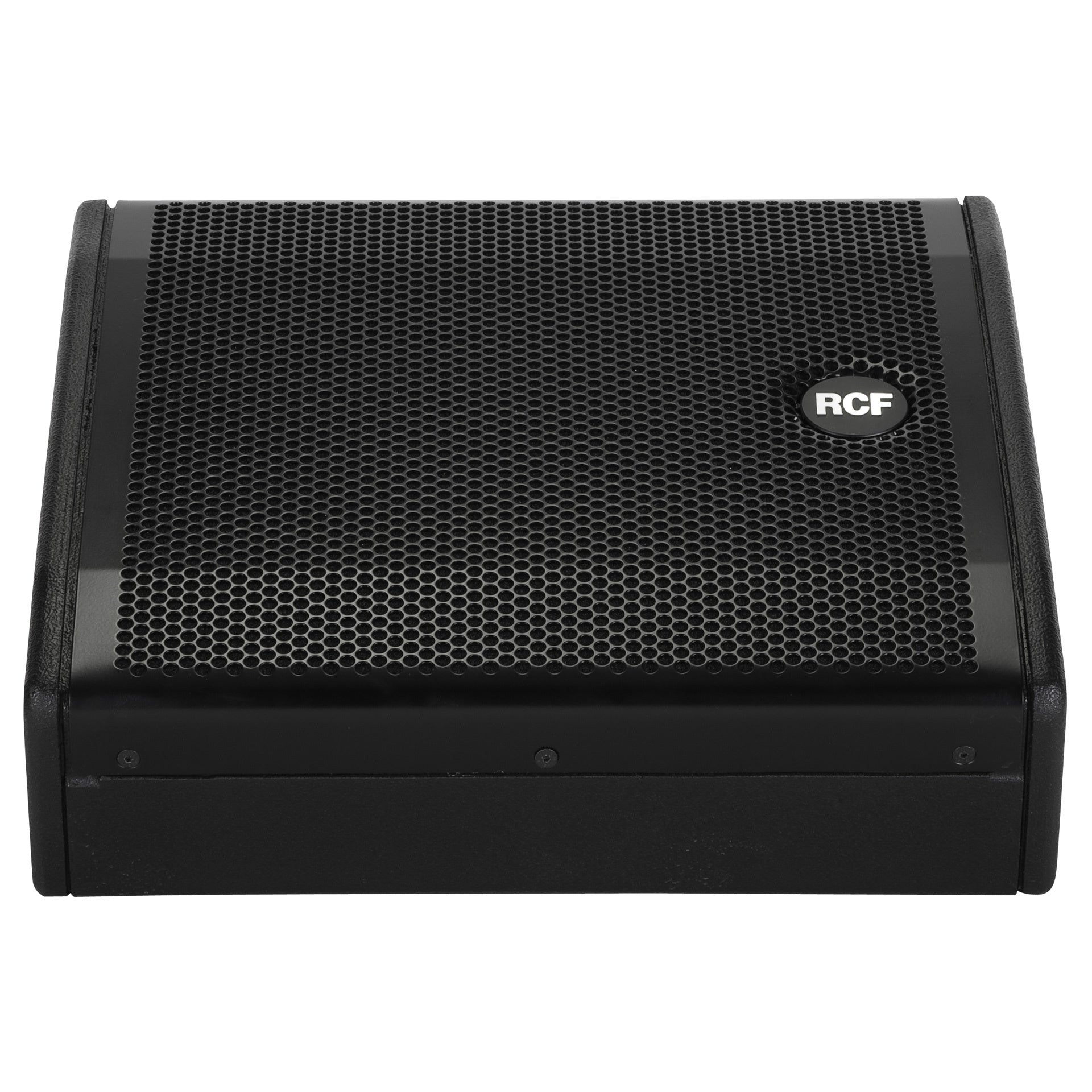

RCF NX 10-SMA 10-Inch Powered Stage Monitor
RCF NX 10-SMA 10-Inch Powered Stage Monitor
SoundPro Item: 33015 | Part Number: NX10-SMA
Usually ships in 5-7 business days
- 800 watt peak, 400 watt RMS digital bi-amplification
- 127 dB max SPL
- 60° x 60° constant directivity horn
- 10" high power neodymium woofer, 2.5" voice coil
- 1.7 kapton dome, 1" exit, neodymium high frequency driver
- DSP processing, floor - free field equalization, soft limiter and protection

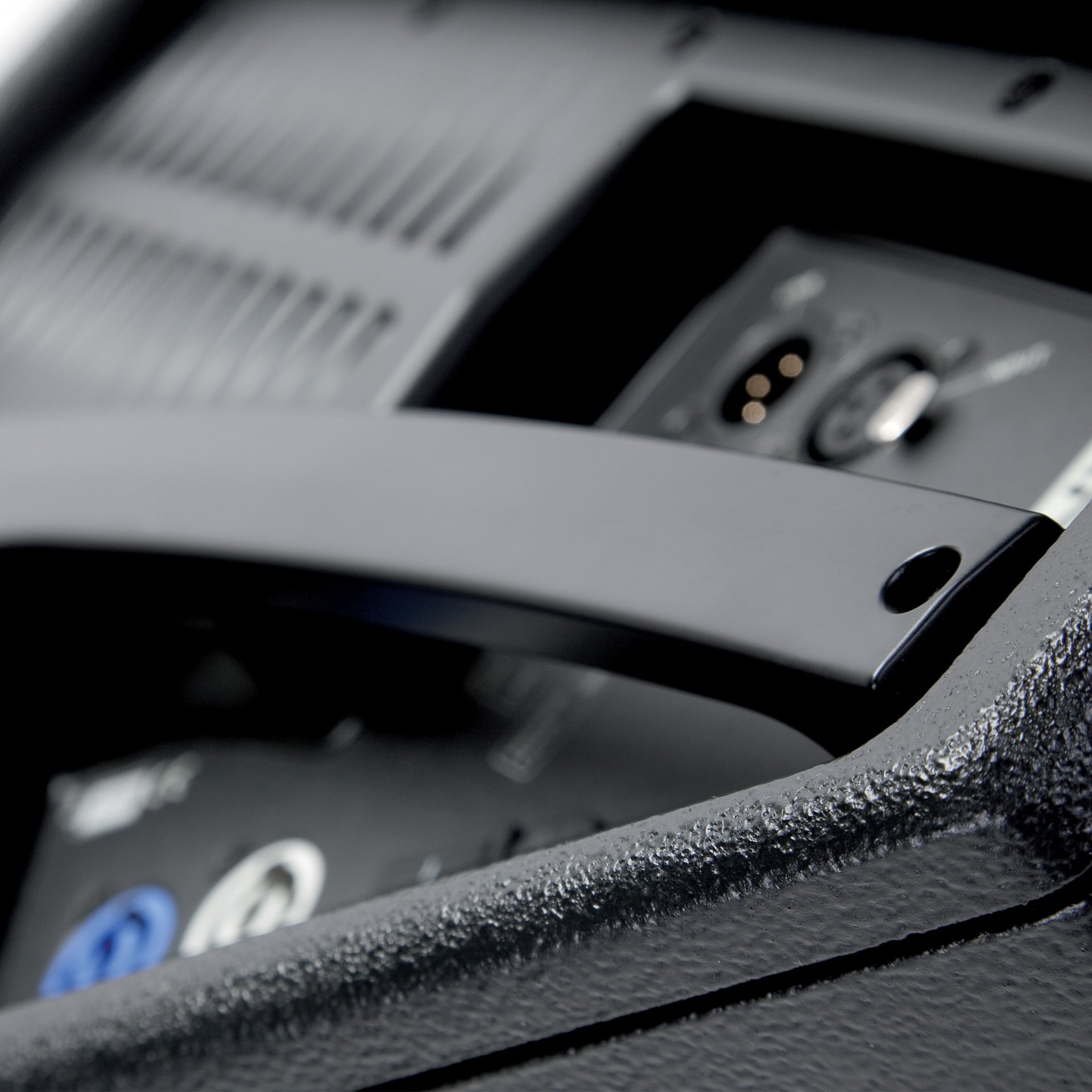

- Combo xlr/jack input, xlr signal output

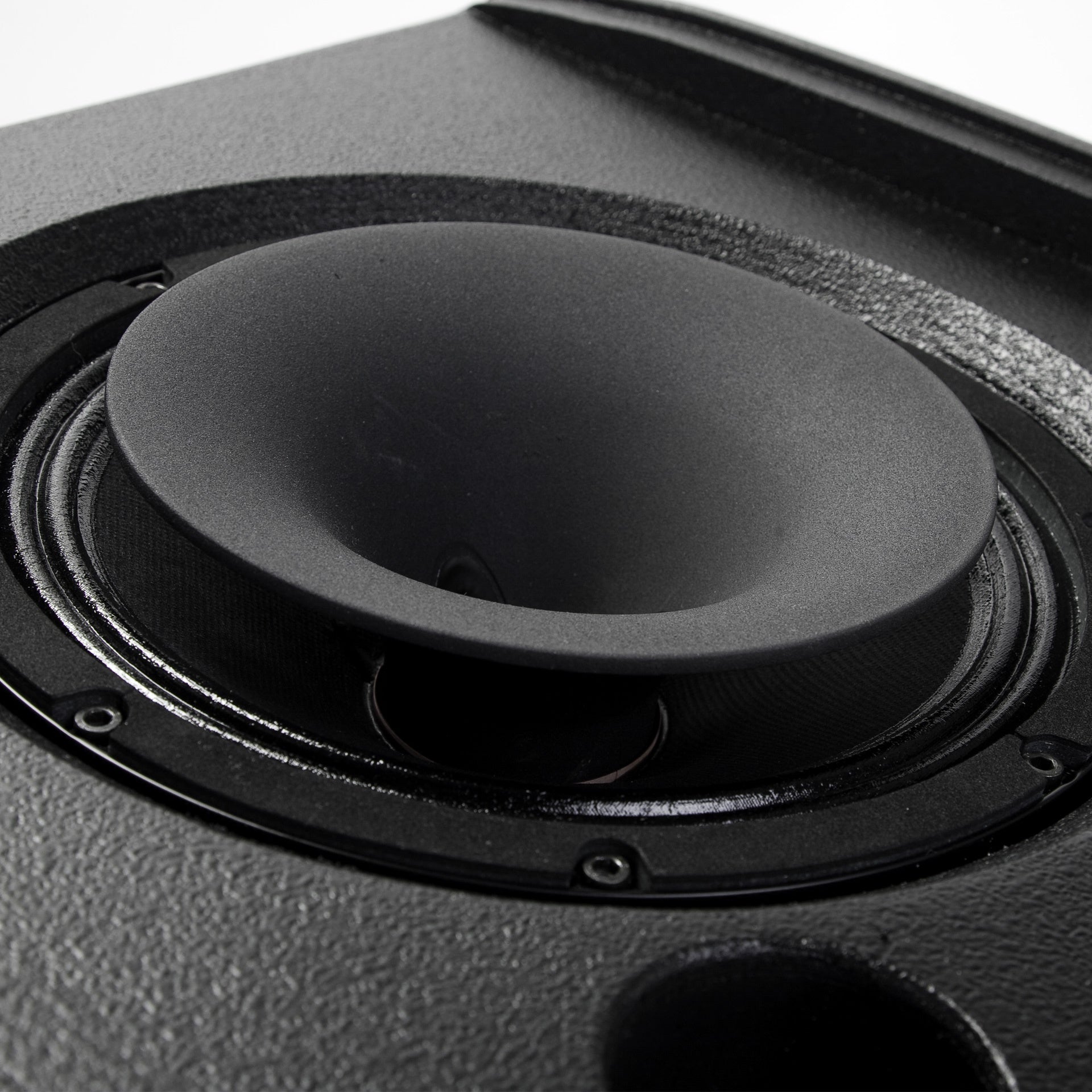

The NX 10-SMA is equipped with a high power 400W digital amp and a newly designed 10" coaxial neodymium transducer that guarantees outstanding audio quality.

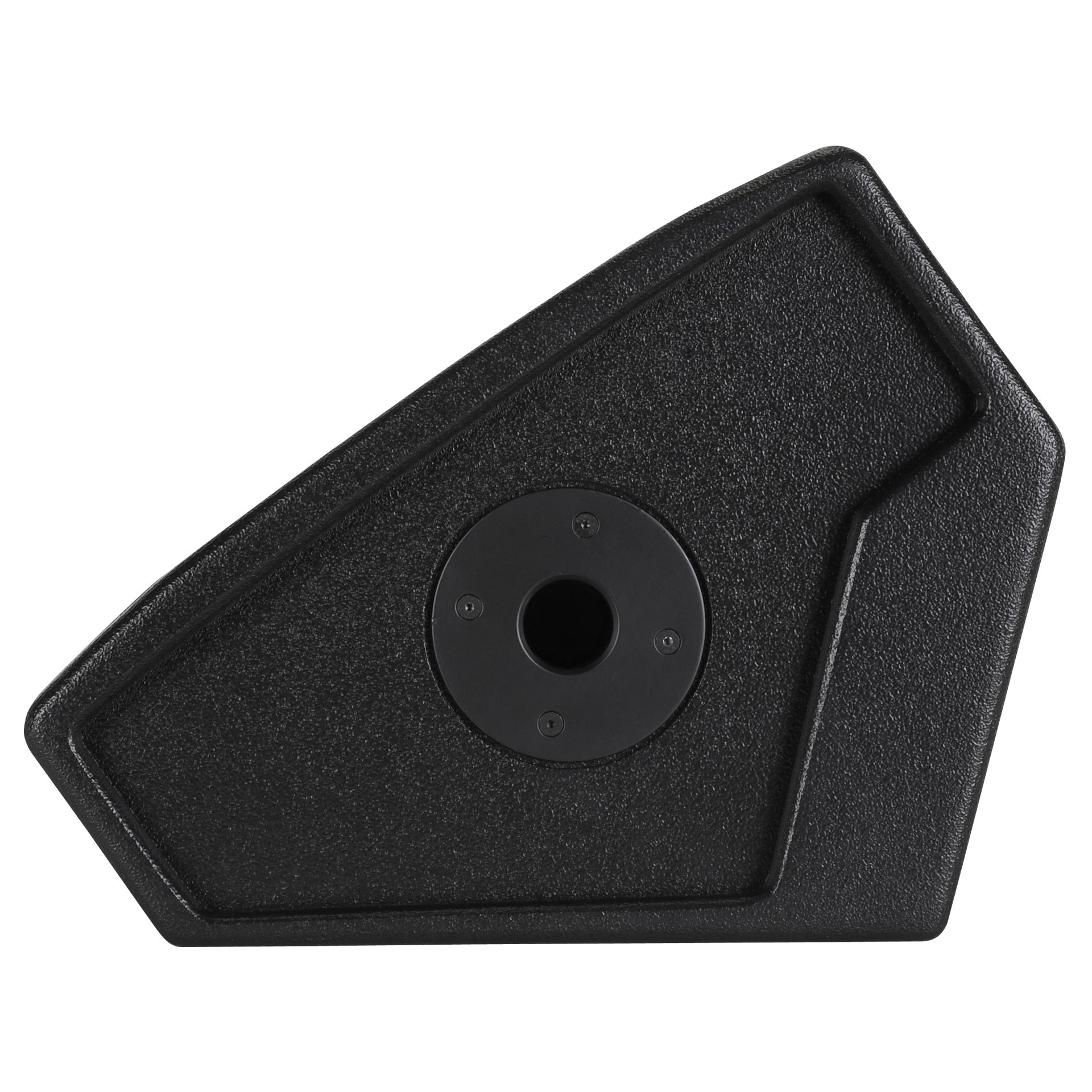

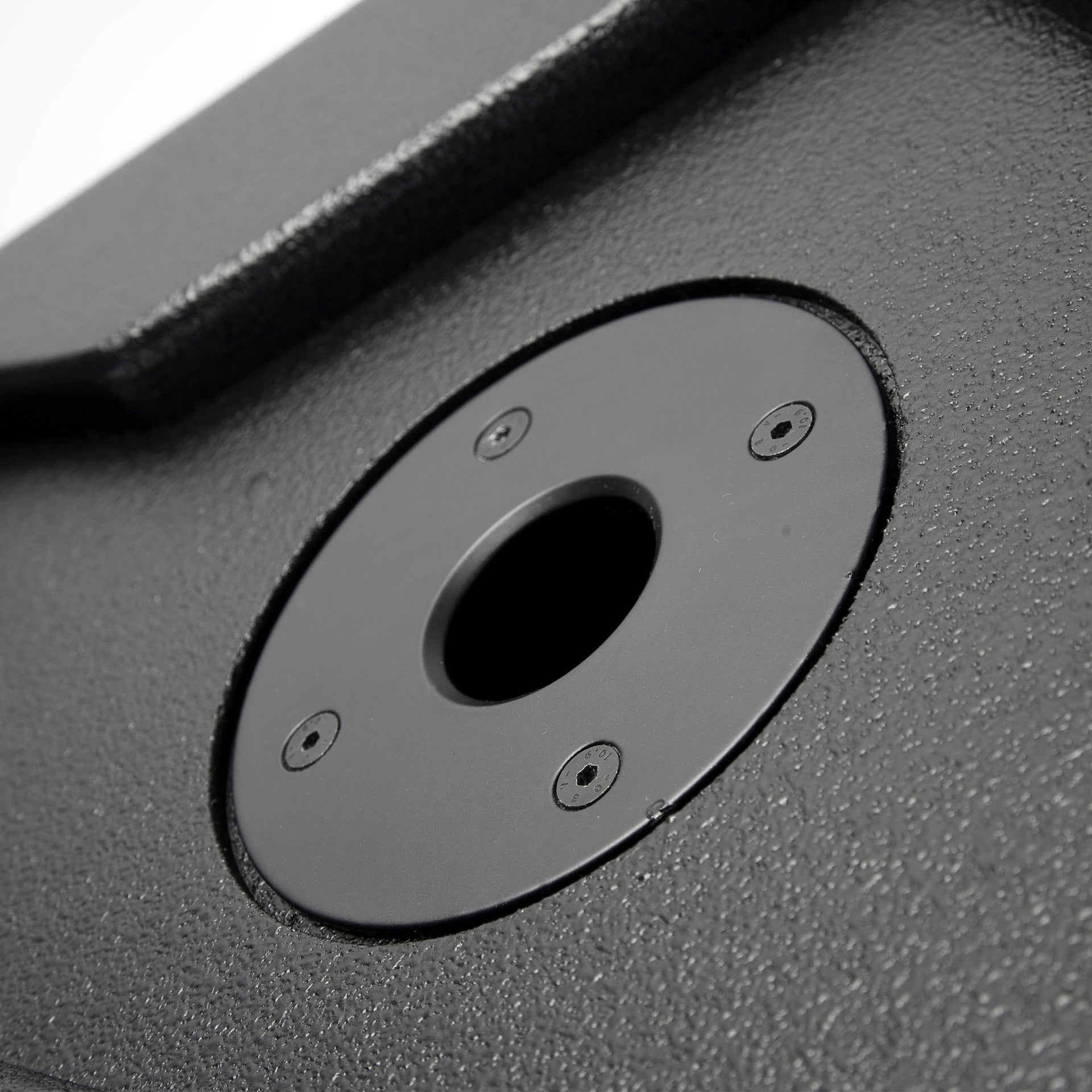

The NX 10-SMA can be also used as a portable PA system, thanks to the rugged powder coated steel pole mount installed on the side. In order to control the response of the speaker in such different applications, RCF has incorporated two special Equalization Modes: - Floor, for stage monitoring; - Free Field, for the use of the speakers as a stand-alone PA system.

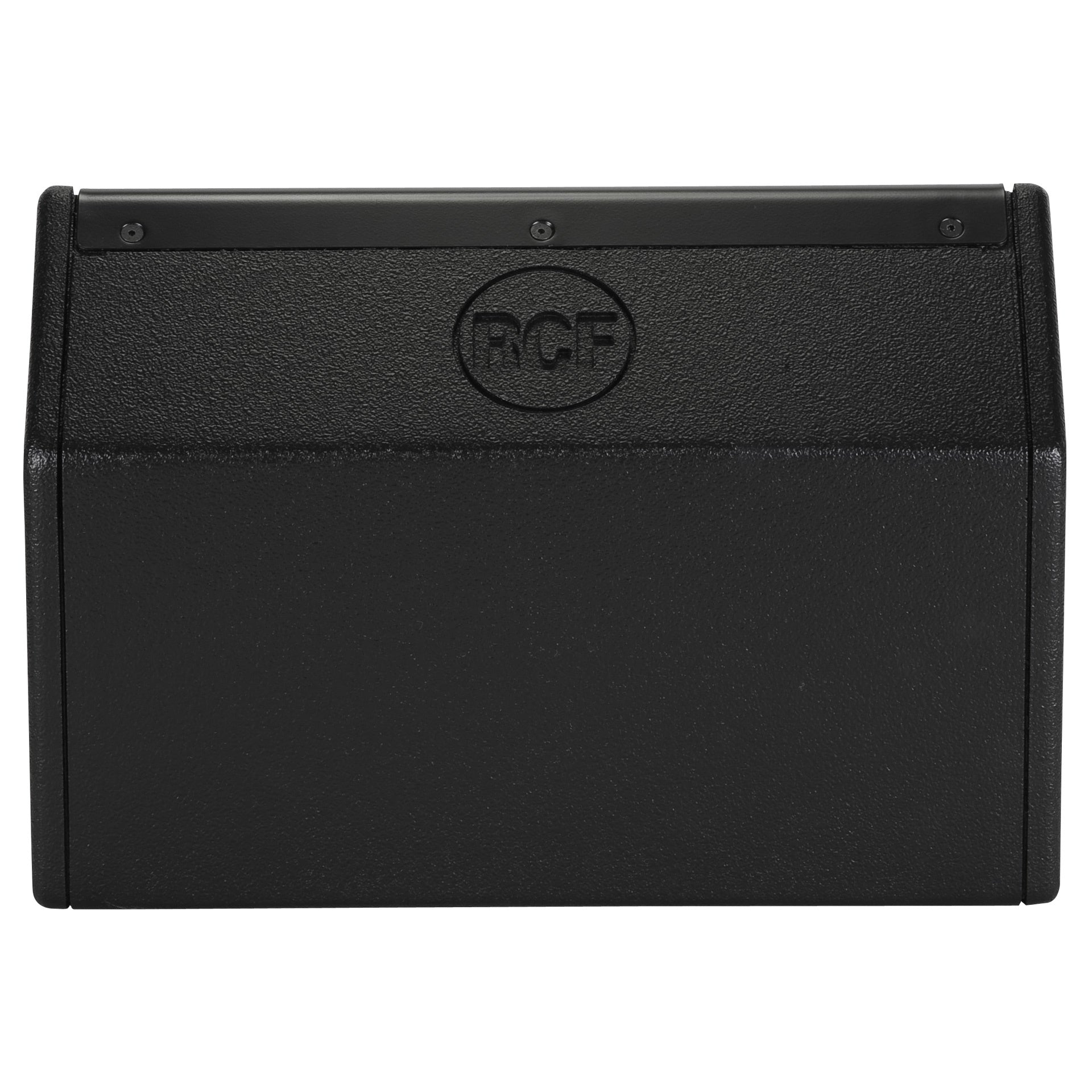

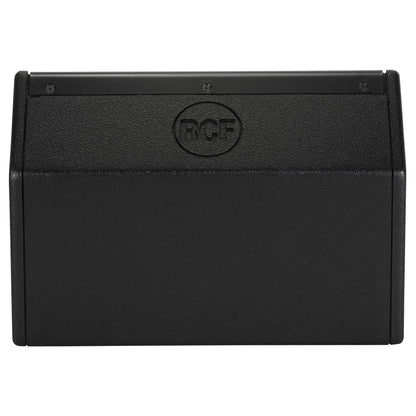

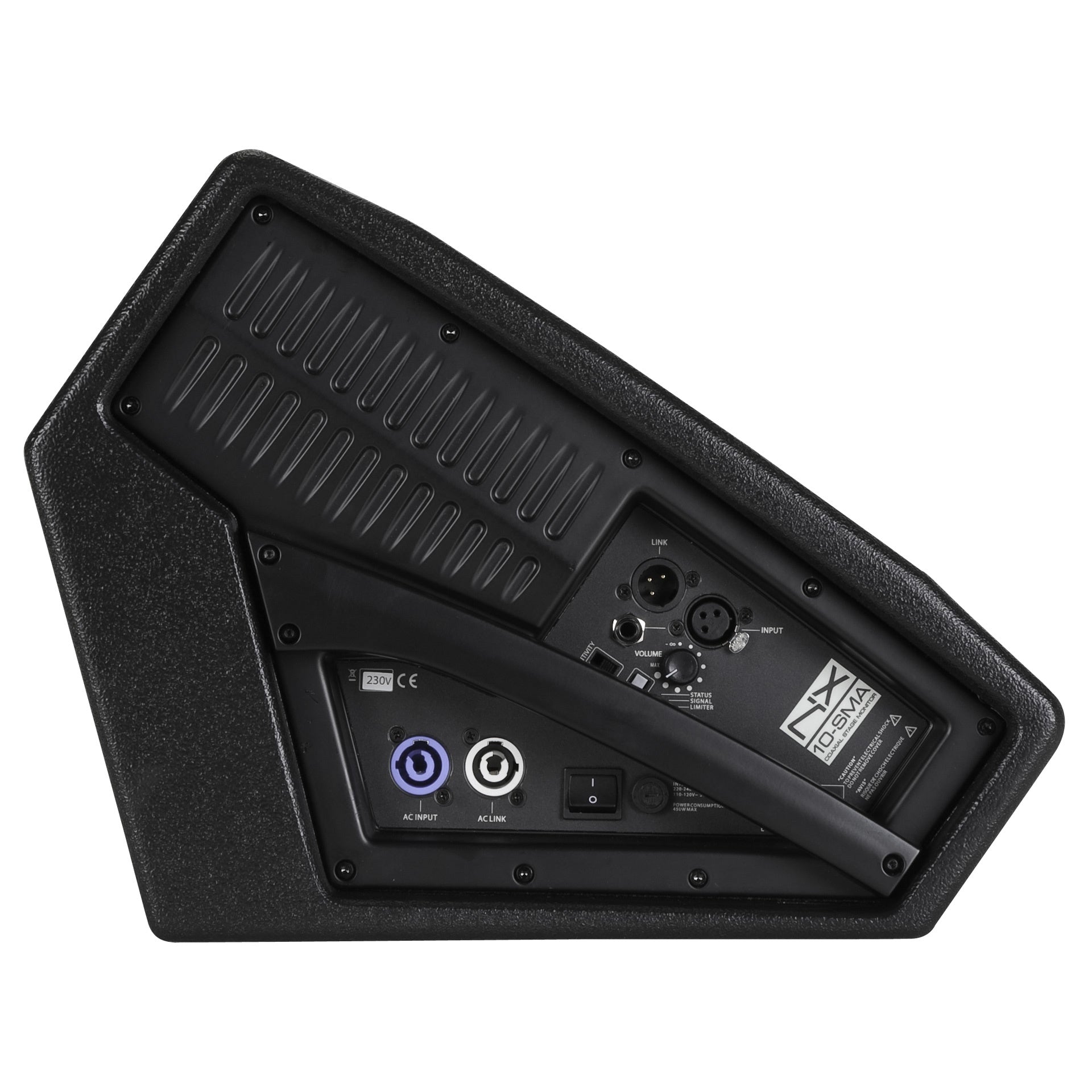

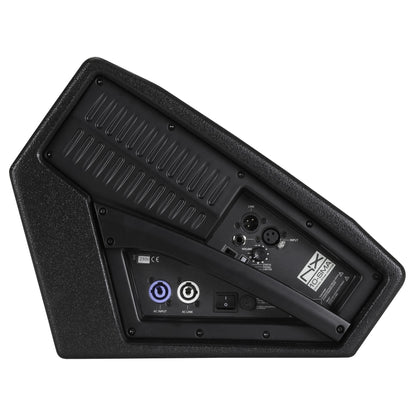

Cabinet is made in Baltic Birch plywood, finished with an extremely resistant paint for an extensive use on the road. An ergonomic side handle, integrated with the input panel, is provided for an easier transport of the speaker.
- ACOUSTICAL
- Frequency Response: 60 Hz ÷ 20000 Hz
- Max SPL @ 1m: 127 dB
- Horizontal coverage angle: 60°
- Vertical coverage angle: 60°

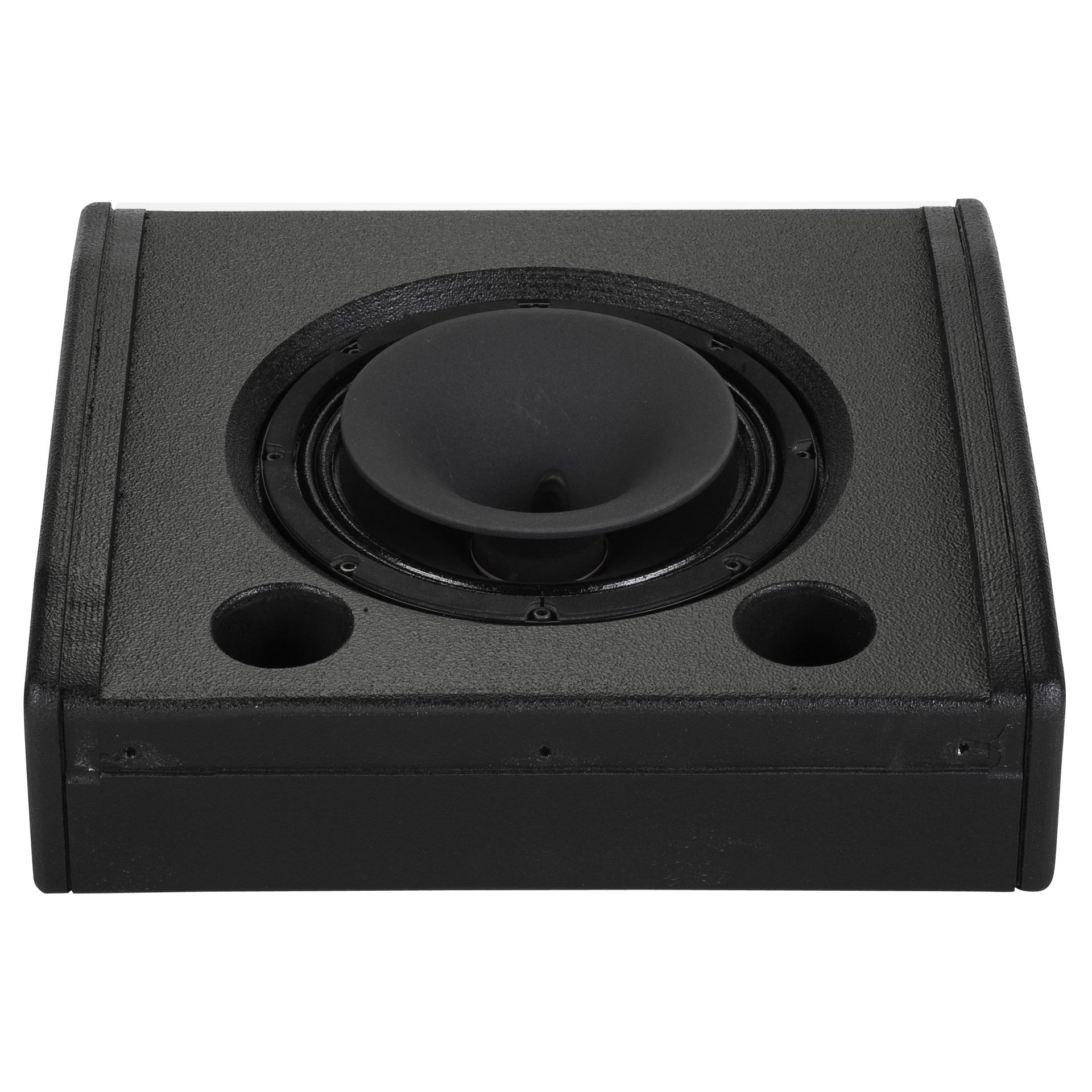

- TRANSDUCERS
- Compression Driver: Coaxial 1.0'' neo, 1.75'' v.c
- Woofer: 10'' neo, 2.5'' v.c

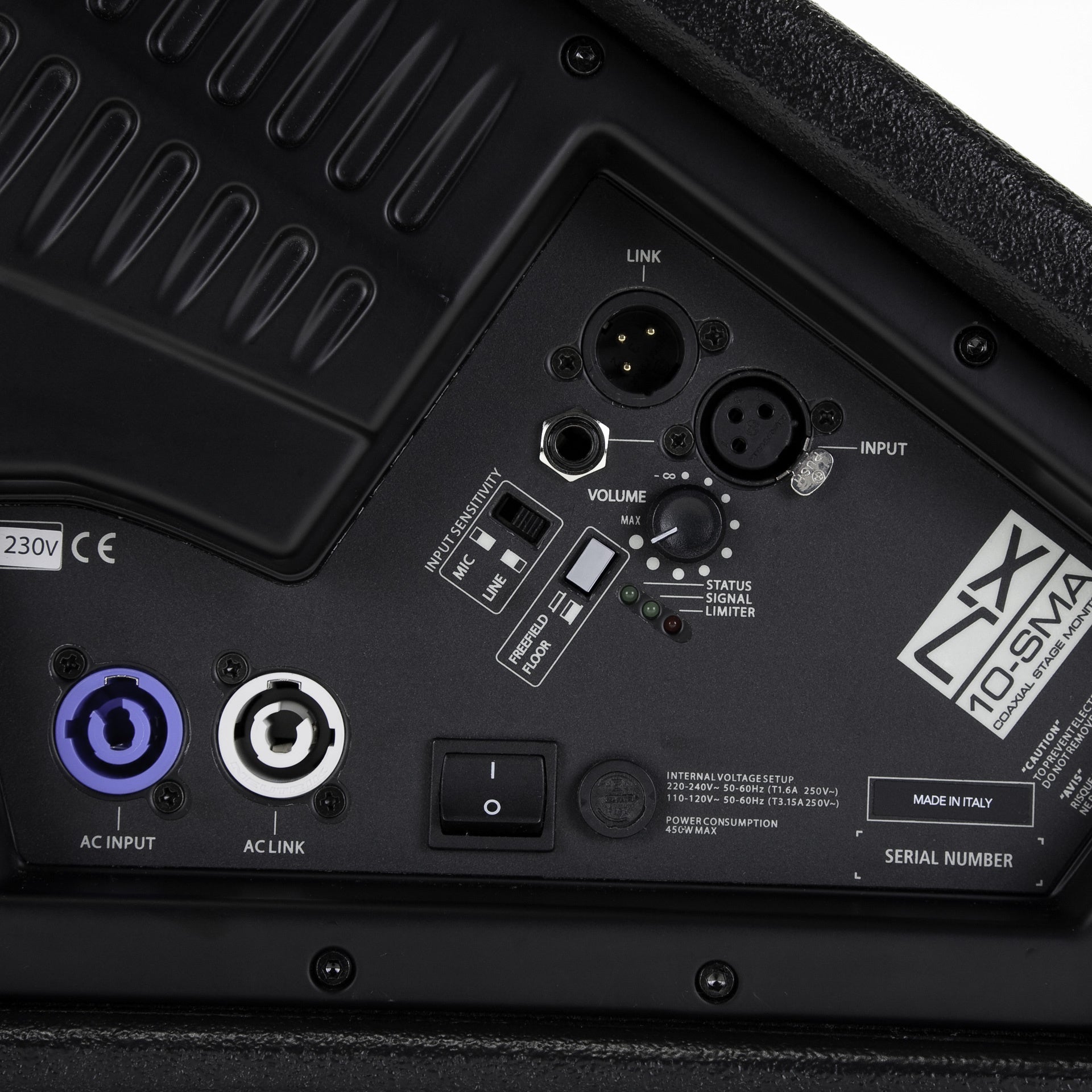

- INPUT/OUTPUT SECTION
- Input signal: bal/unbal
- Input connectors: XRL, Jack
- Output connectors: XLR
- Input sensitivity: +4 dBu
- PROCESSOR SECTION
- Protections: RMS, HF
- Limiter: Soft Limiter
- Controls: Freefield, Floor
- POWER SECTION
- Total Power: 800W Peak, 400W RMS
- High frequencies: 200W Peak, 100W RMS
- Low frequencies: 600W Peak, 300W RMS
- Cooling: Convection
- Connections: Powercon IN/OUT
- PHYSICAL
- Cabinet/Case Material: Baltic birch plywood
- Handles: 1 on side
- Pole mount/Cap: Yes
- Grille: Steel
- Color: Black
- Dimensions (HxWxD): 12.76x17.72x16.42" (324x450x417mm)
- Weight: 31.53 lbs (14.3 kg)
- SHIPPING
- Package (HxWxD): 19.84x19.84x15.91" (504x504x404mm)
- Package Weight: 38.36 lbs (17.4 kg)
