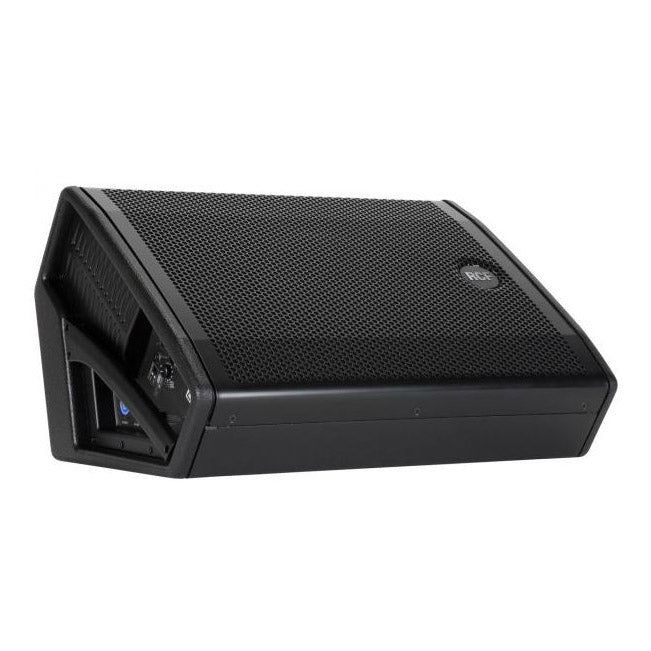

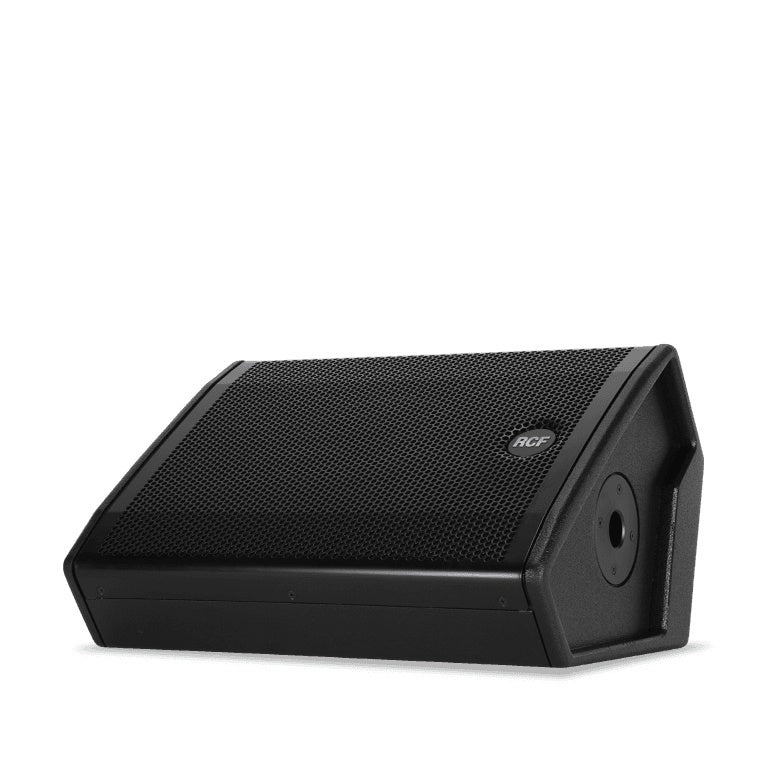

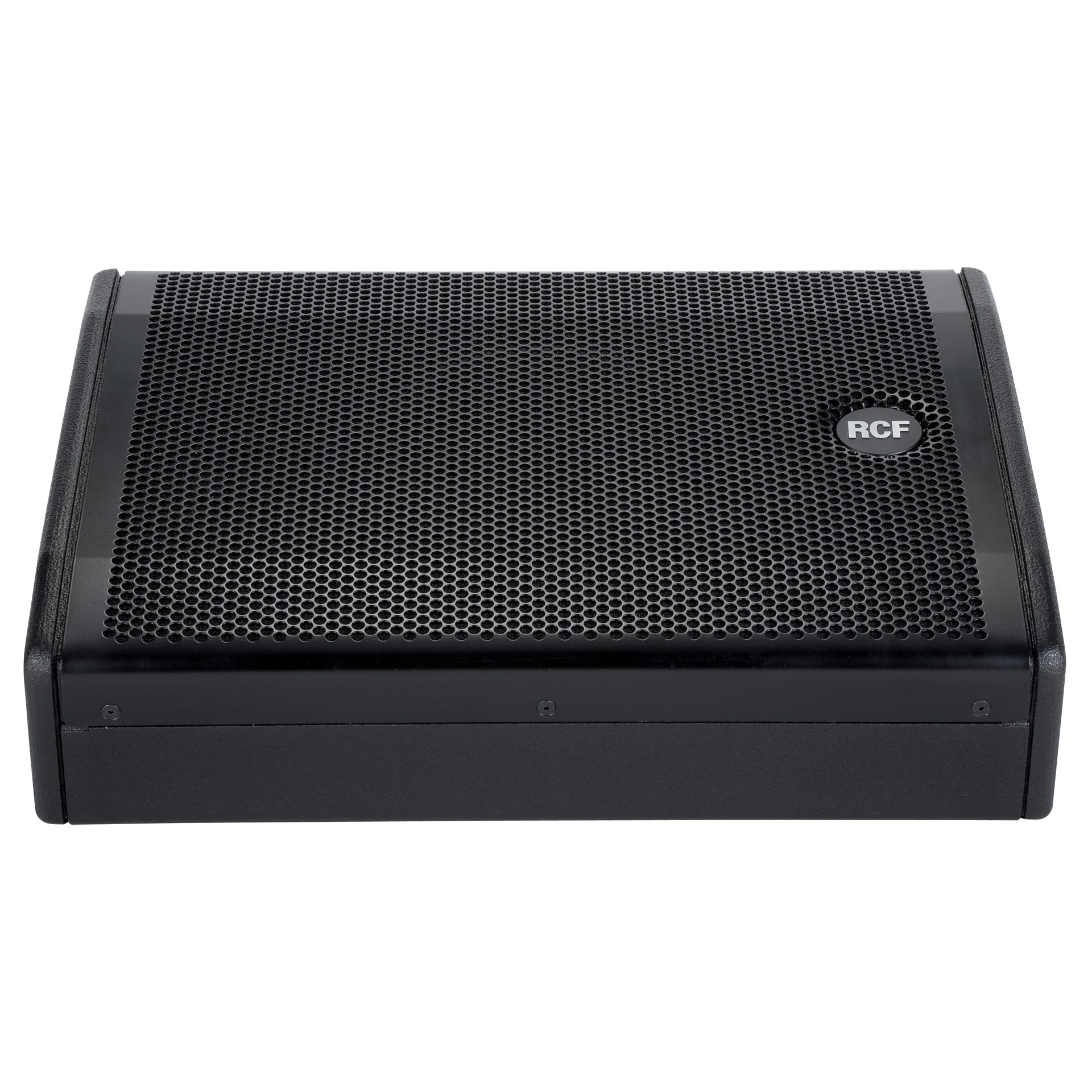

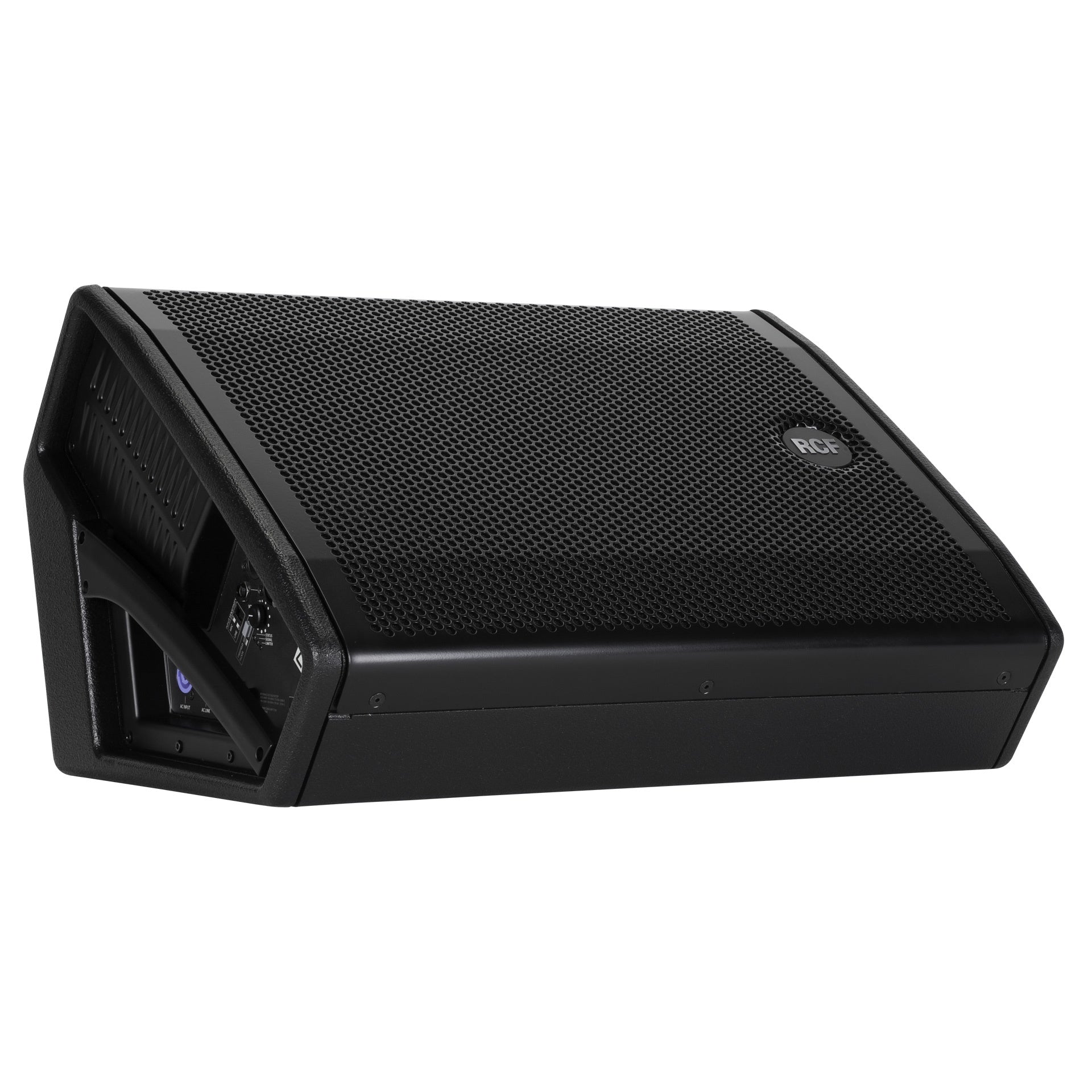

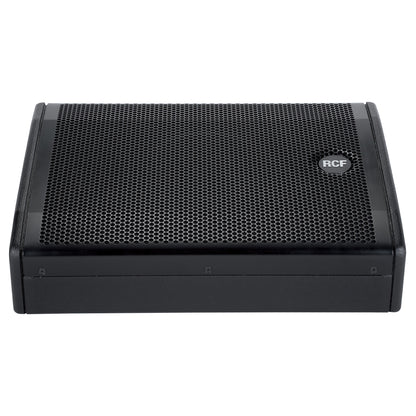

RCF NX 12-SMA 12-Inch Powered Stage Monitor
RCF NX 12-SMA 12-Inch Powered Stage Monitor
SoundPro Item: 33016 | Part Number: NX12-SMA
Usually ships in 5-7 business days
- 1400 Watt Peak, 700 Watt RMS digital bi-amplification
- 129 dB max spl
- 60° x 60° constant directivity horn
- 12" High power neodymium woofer, 2.5" voice coil
- 1.7" kapton dome, 1" exit, neodymium high frequency driver
- DSP processing, floor - fre field equalization, soft limiter and protection
- Combo xlr/jack input, xlr signal output

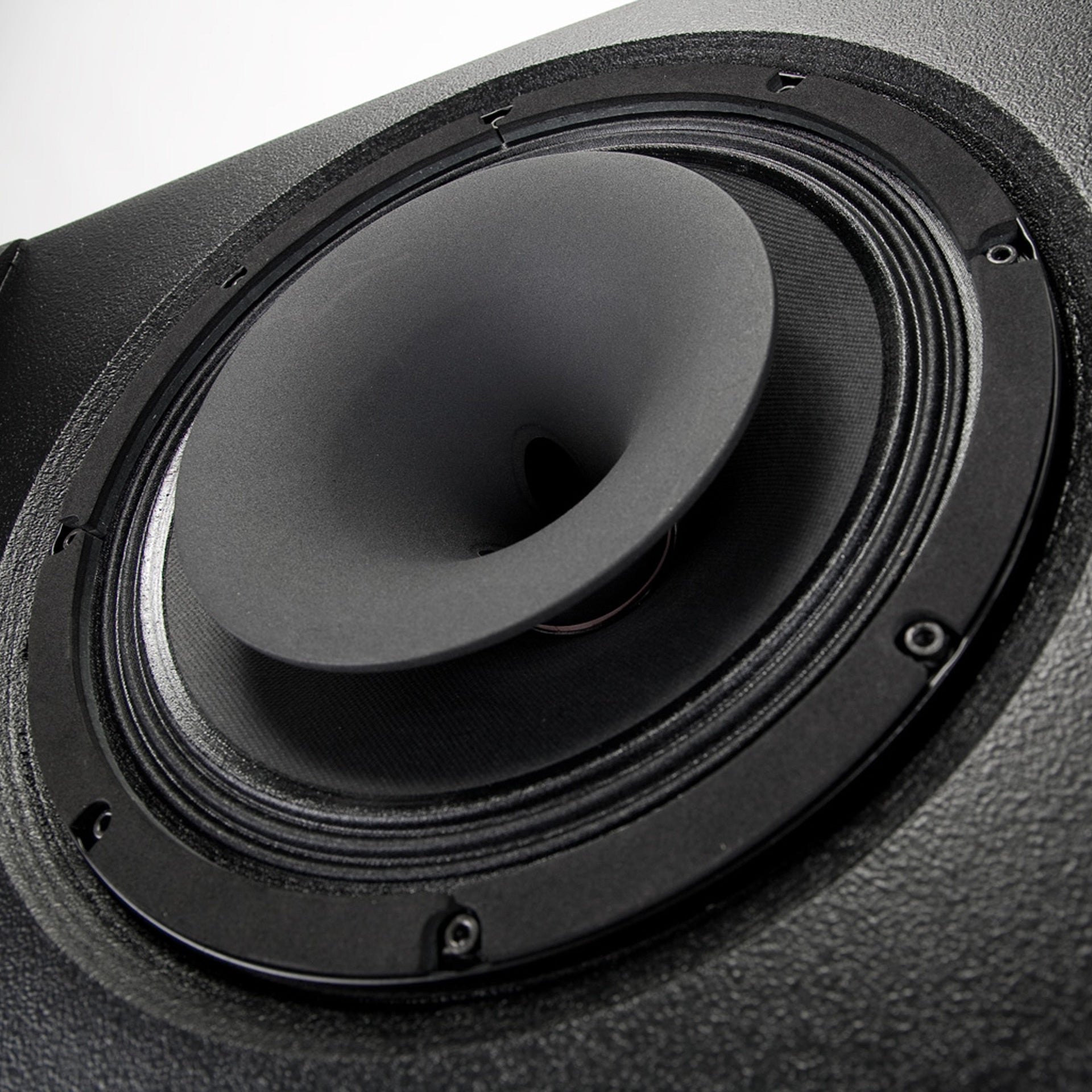

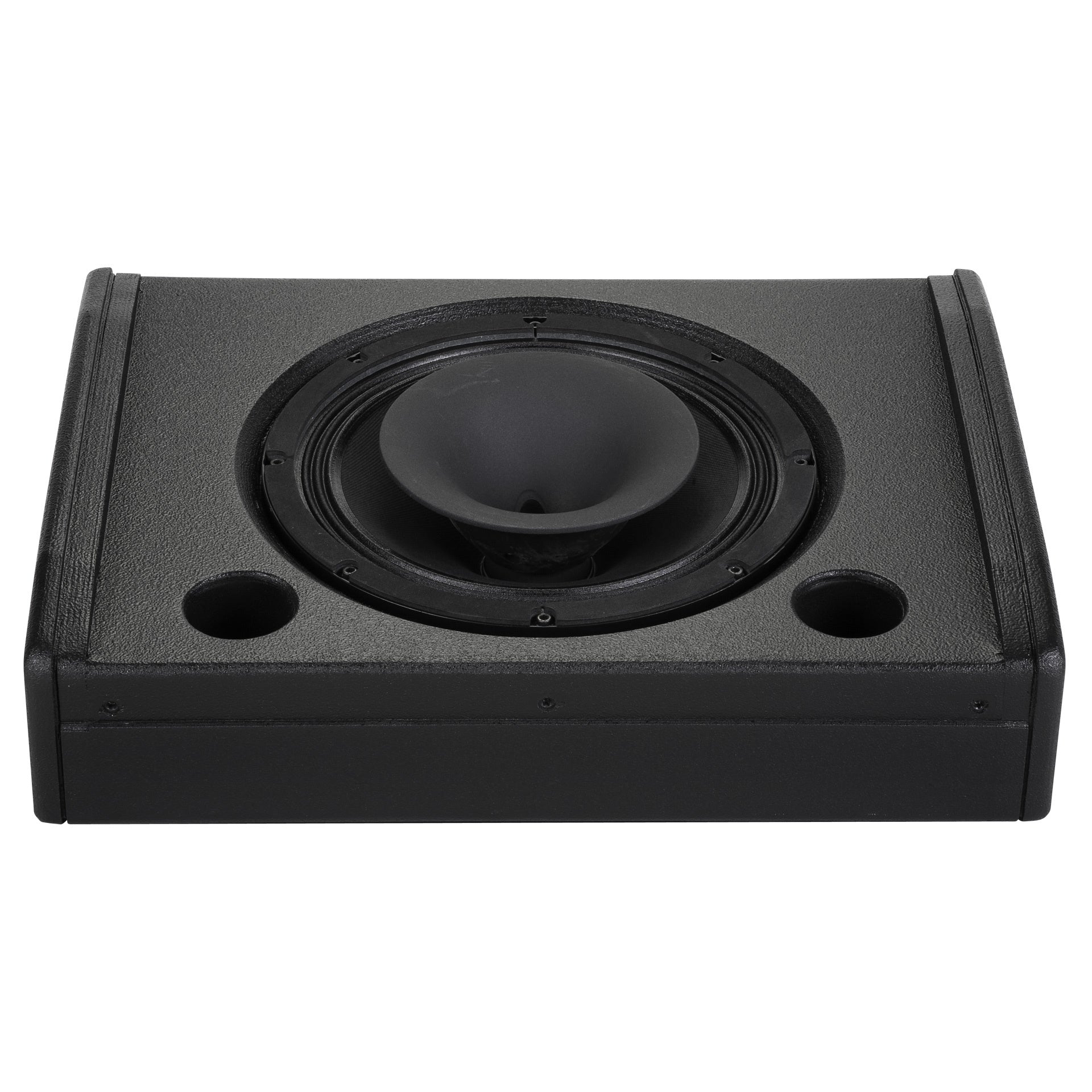

The NX 12-SMA is equipped with high power 700W digital amplifier and a 12” coaxial neodymium transducer that guarantees outstanding audio quality and definition as well as an extremely lightweight of the final system.
- ACOUSTICAL
- Frequency Response: 50 Hz ÷ 20000 Hz
- Max SPL @ 1m: 129 dB
- Horizontal coverage angle: 60°
- Vertical coverage angle: 60°
- TRANSDUCERS
- Compression Driver: Coaxial 1.0'' neo, 1.75'' v.c
- Woofer: 12'' neo, 2.5'' v.c

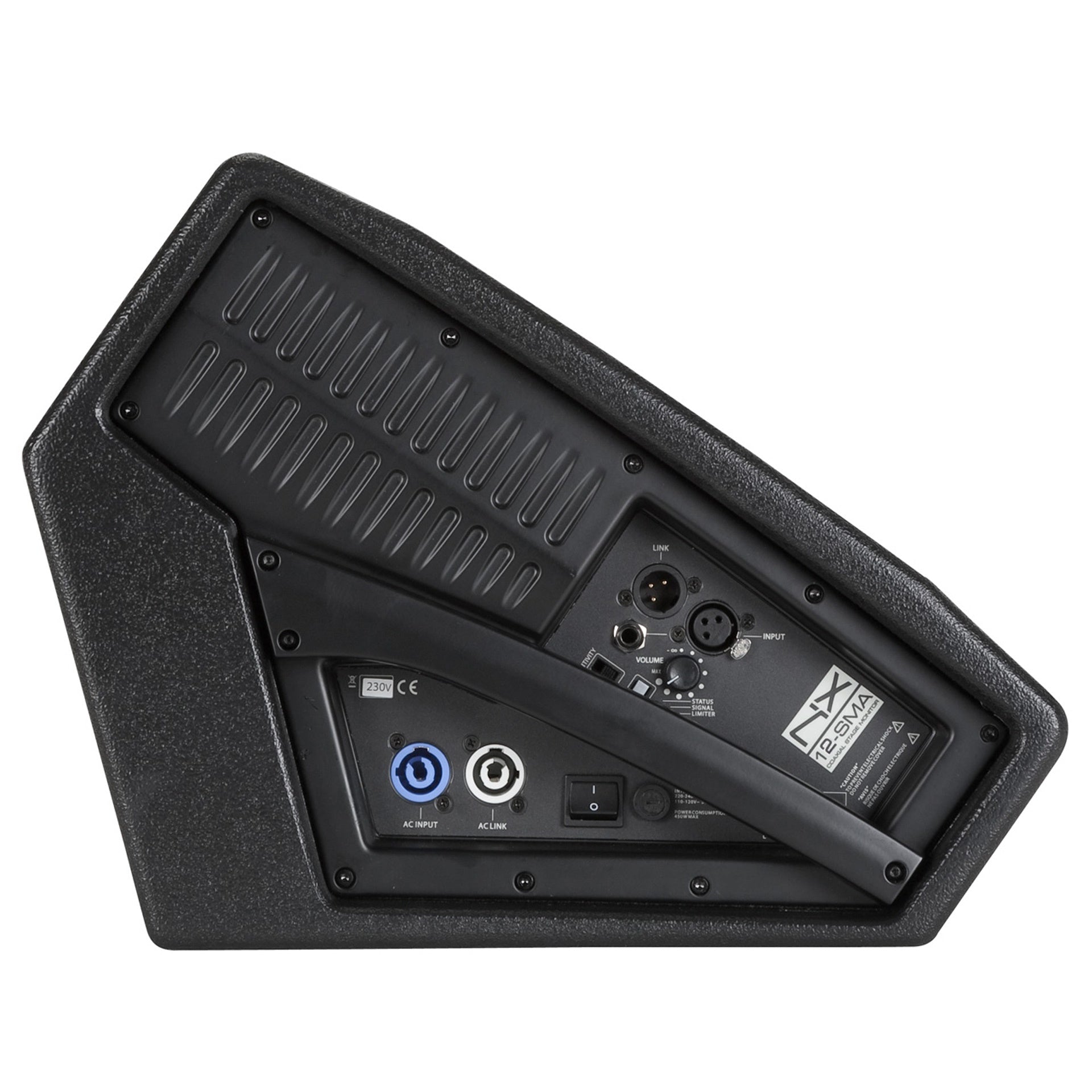

- INPUT/OUTPUT SECTION
- Input signal: bal/unbal
- Input connectors: XRL, Jack
- Output connectors: XLR
- Input sensitivity: +4 dBu
- PROCESSOR SECTION
- Protections: RMS, HF
- Limiter: Soft Limiter
- Controls: Freefield, floor
- POWER SECTION
- Total Power: 1400 W Peak, 700 W RMS
- High frequencies: 400 W Peak, 200 W RMS
- Low frequencies: 1000 W Peak, 500 W RMS
- Cooling: Convection
- Connections: Powercon IN/OUT
- PHYSICAL
- Cabinet/Case Material: Baltic birch plywood
- Handles: 1 on side

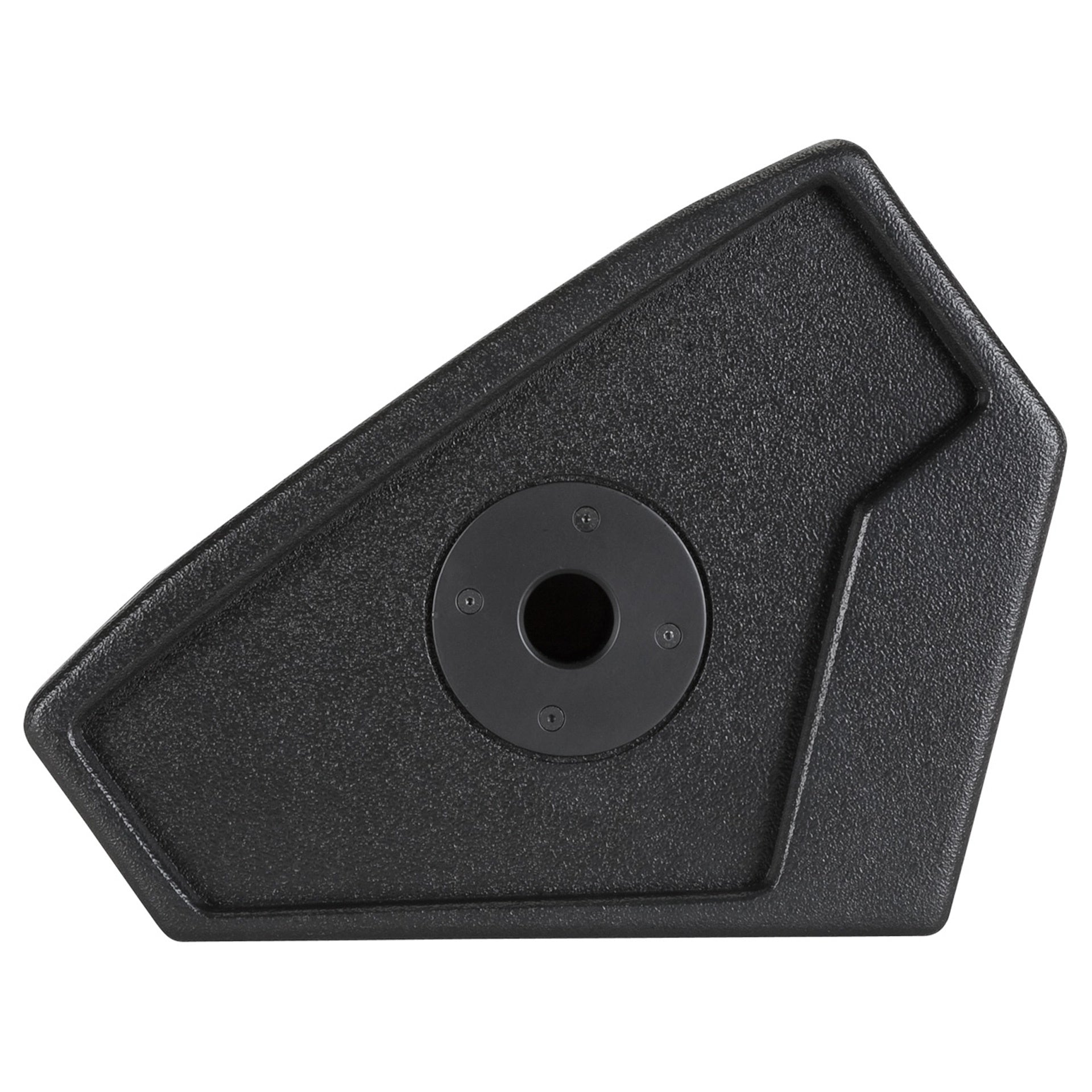

- Pole mount/Cap: Yes
- Grille: Steel
- Color: Black
- Dimensions (HxWxD): 12.76x21.65x16.42" (324x550x417mm)
- Weight: 36.6 lbs (16.6 kg)
- SHIPPING
- Package Dimensions (HxWxD): 23.78x19.84x15.91" (604x504x404mm)
- Package Weight: 44.53 lbs (20.2 kg)
