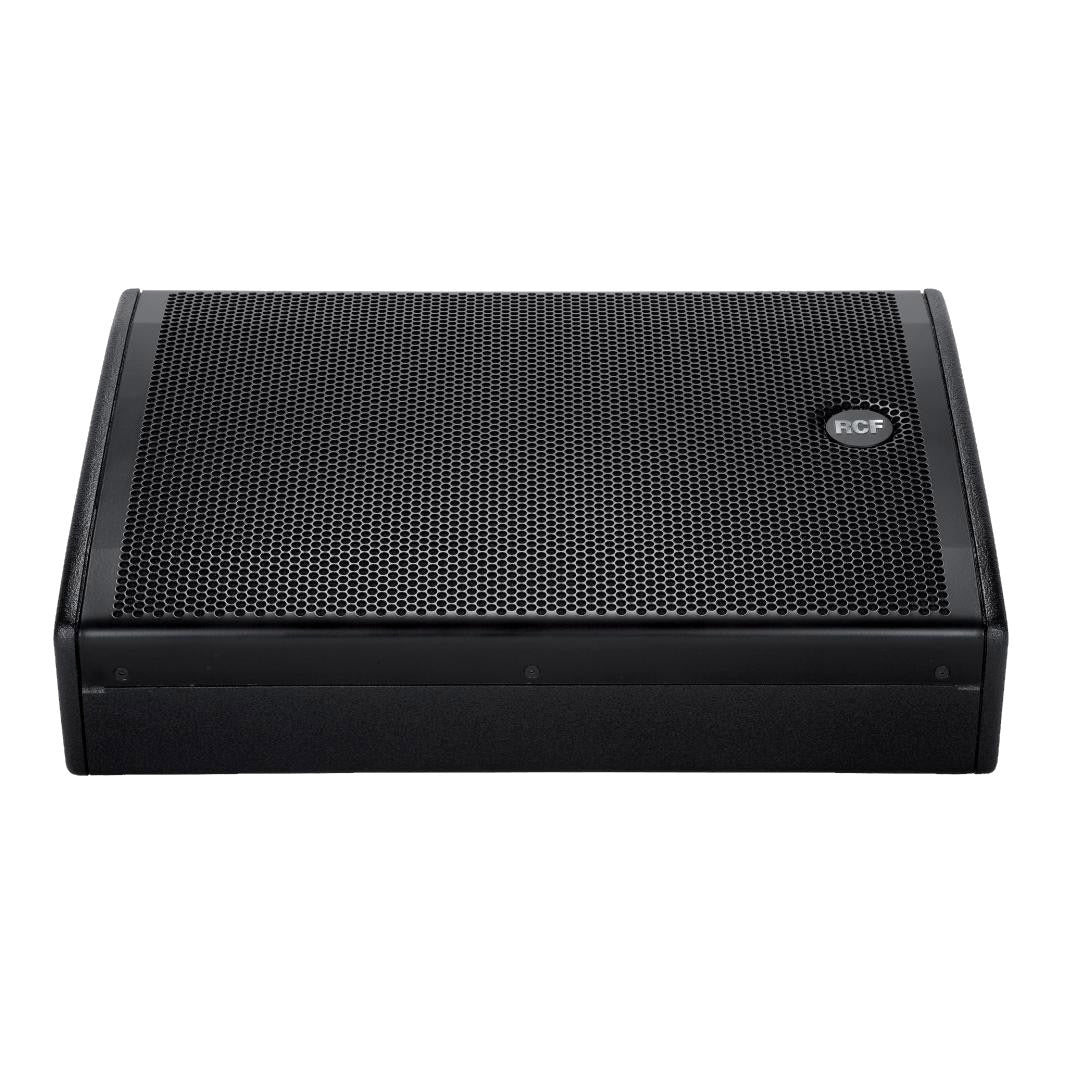

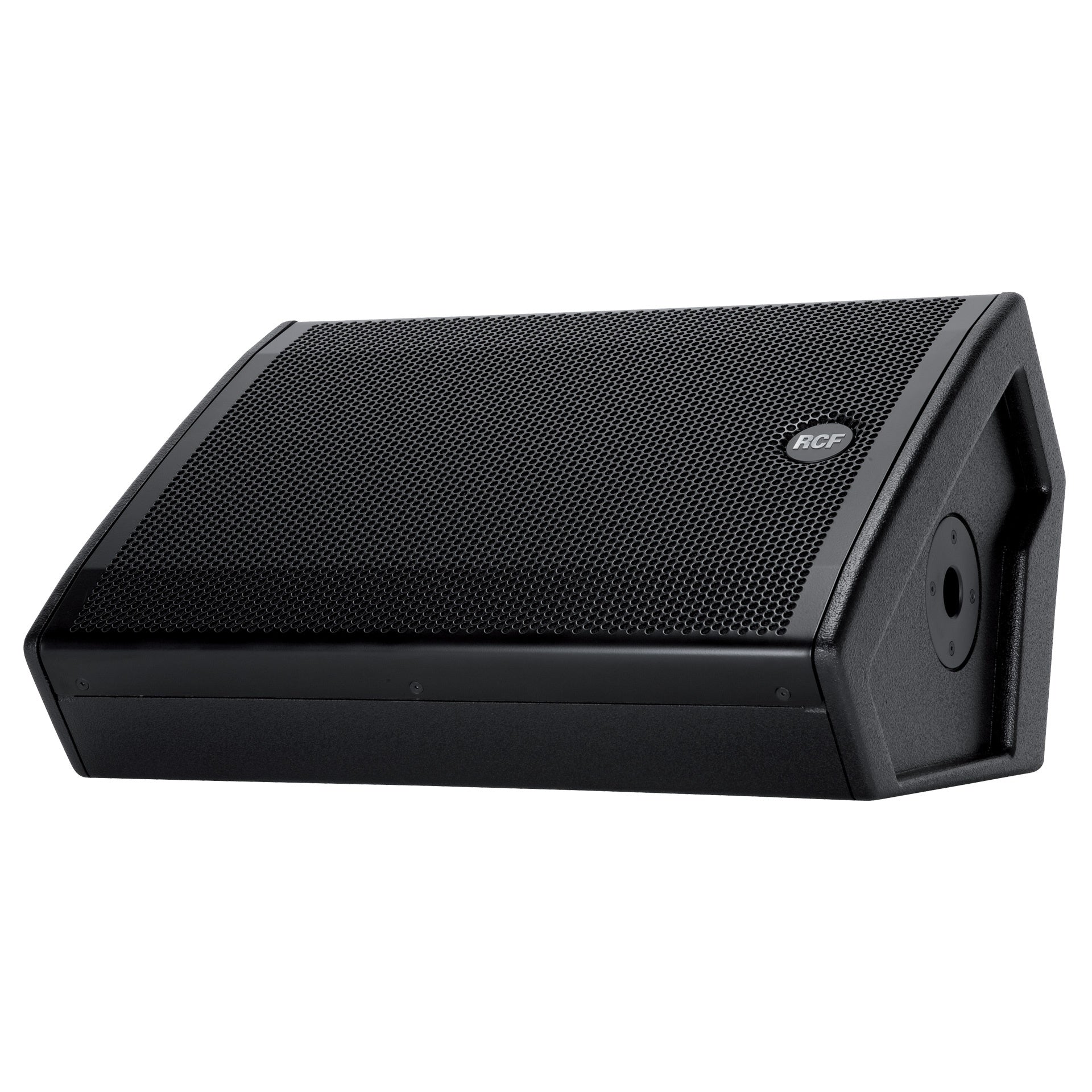

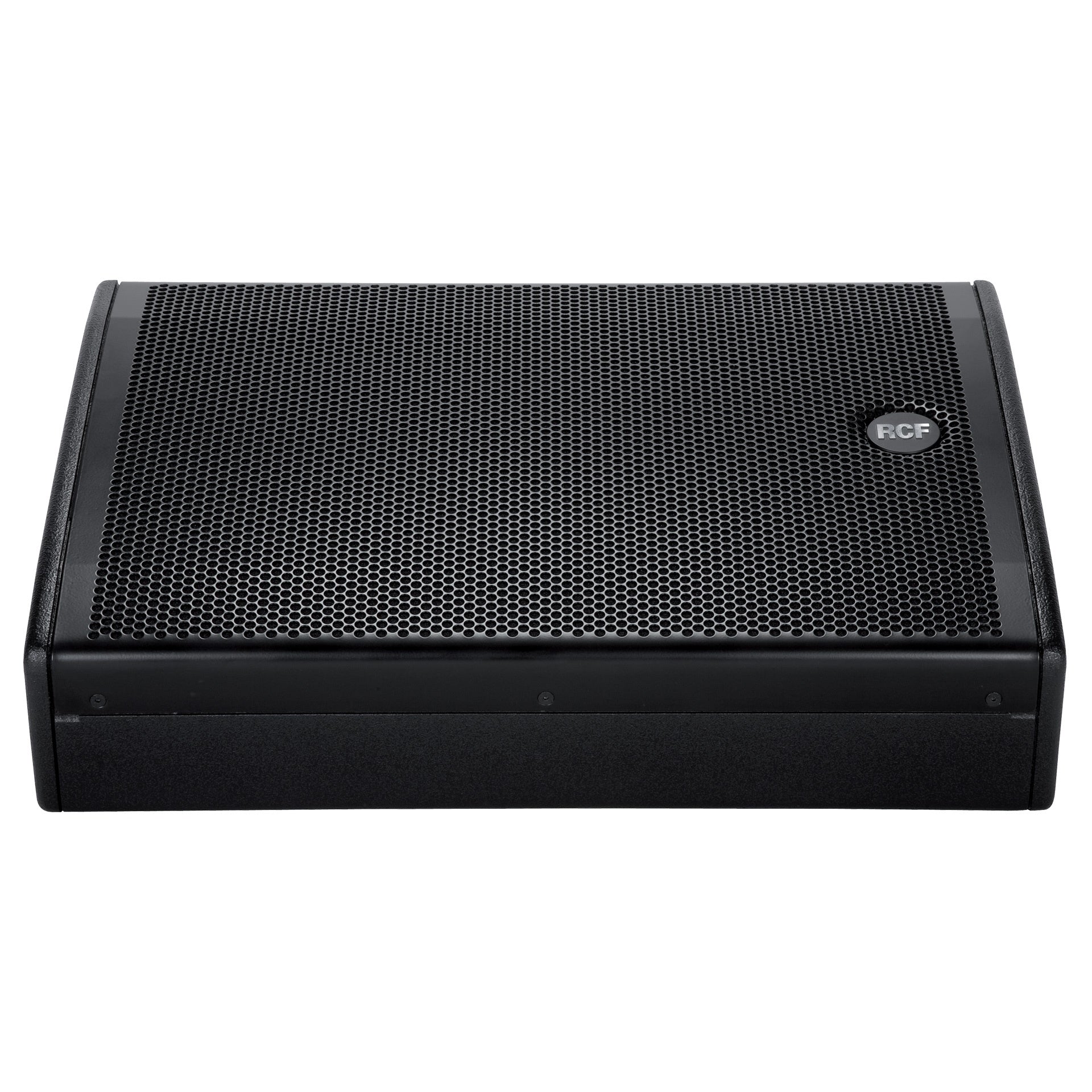

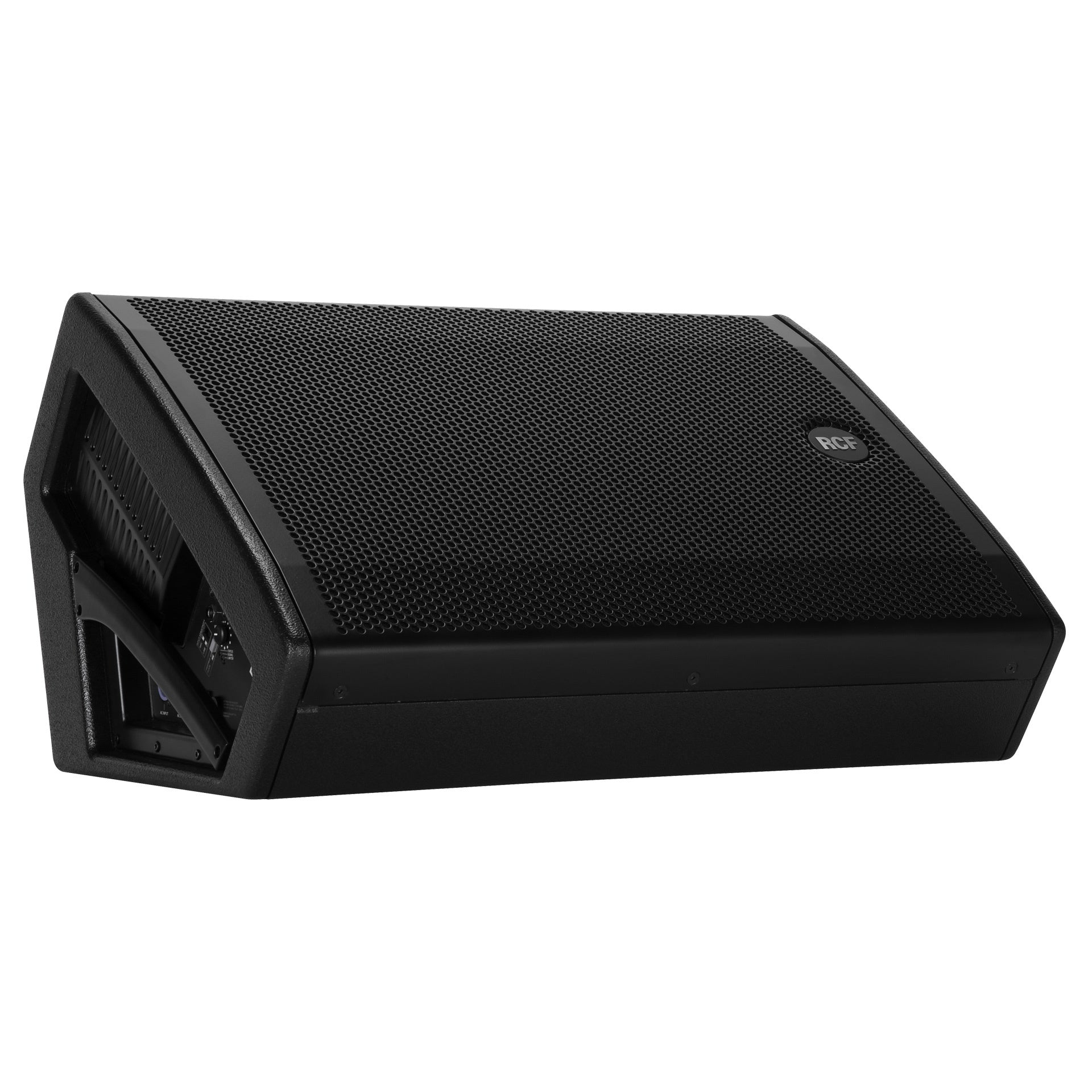

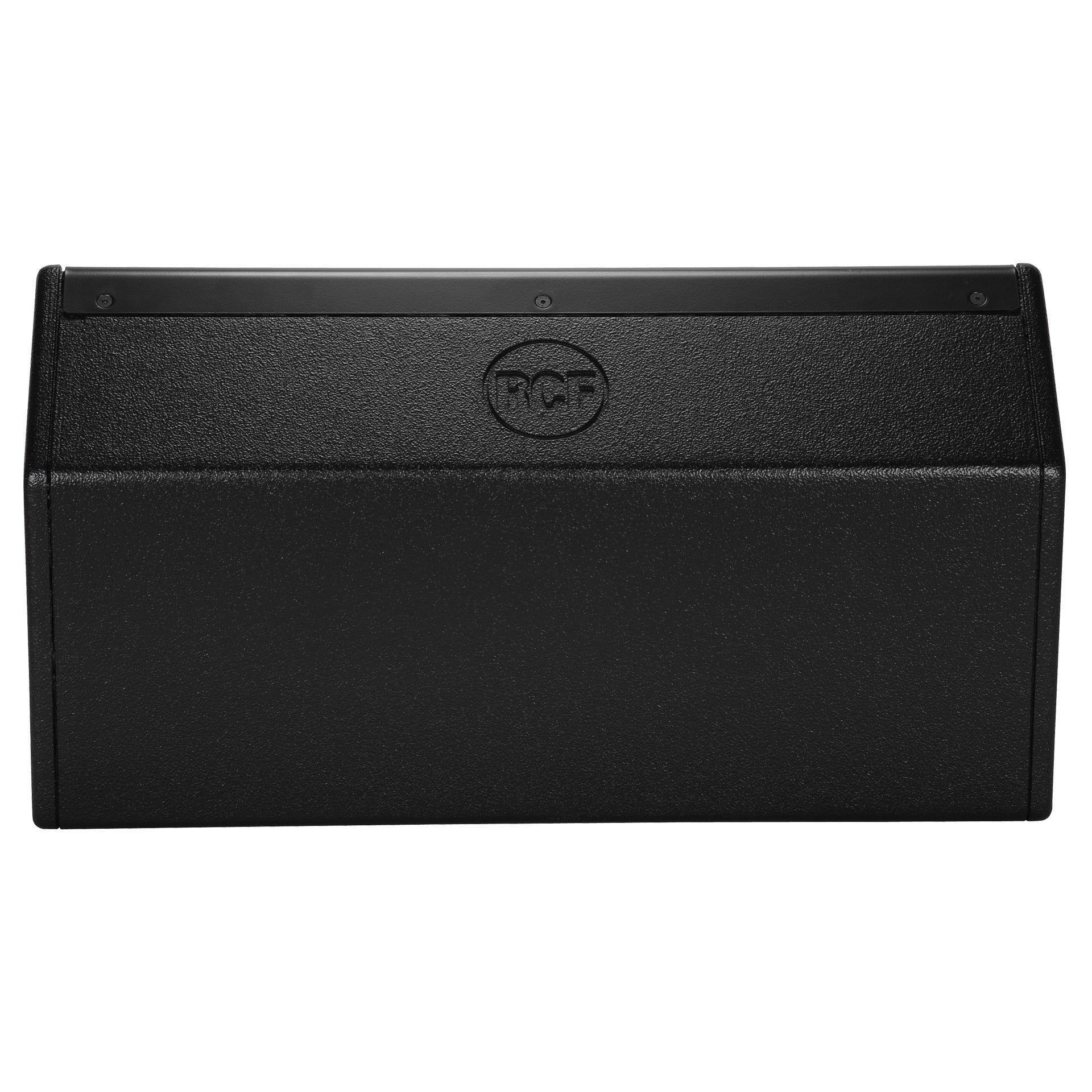

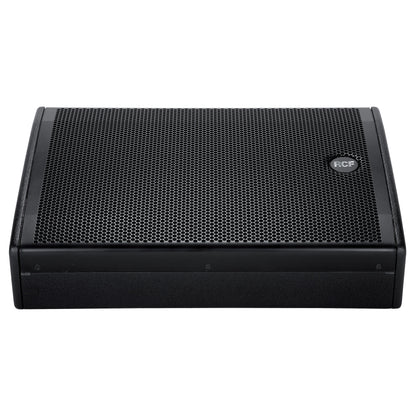

RCF NX 15-SMA 15-Inch Powered Stage Monitor
RCF NX 15-SMA 15-Inch Powered Stage Monitor
SoundPro Item: 33017 | Part Number: NX15-SMA
Usually ships in 5-7 business days
- 1400 Watt Peak, 700 Watt RMS digital bi-amplification
- 130 dB max spl
- 60° x 60° constant directivity horn

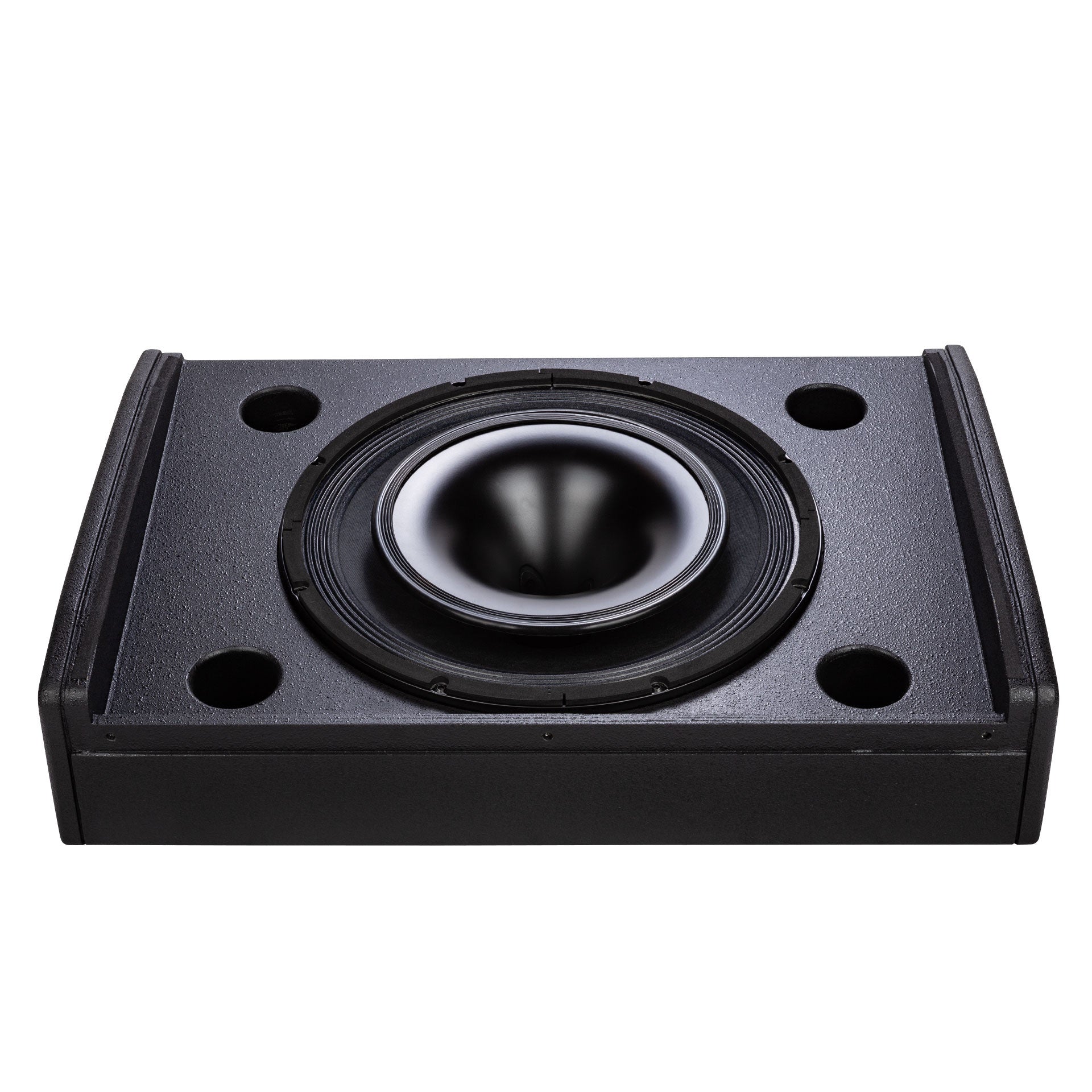

- 15" High power neodymium woofer, 2.5" voice coil
- 1.7" kapton dome, 1" exit, neodymium high frequency driver
- DSP processing, floor - fre field equalization, soft limiter and protection
- Combo xlr/jack input, xlr signal output
The NX 15-SMA is equipped with high power 700W digital amplifier and a 15” coaxial neodymium transducer that guarantees outstanding audio quality and definition as well as an extremely lightweight of the final system.
- ACOUSTICAL
- Frequency Response: 50 Hz ÷ 20000 Hz
- Max SPL @ 1m: 130 dB
- Horizontal coverage angle: 60°
- Vertical coverage angle: 60°
- TRANSDUCERS
- Compression Driver: Coaxial 1.0'' neo, 1.75'' v.c
- Woofer: Coaxial 15'' neo, 2.5'' v.c

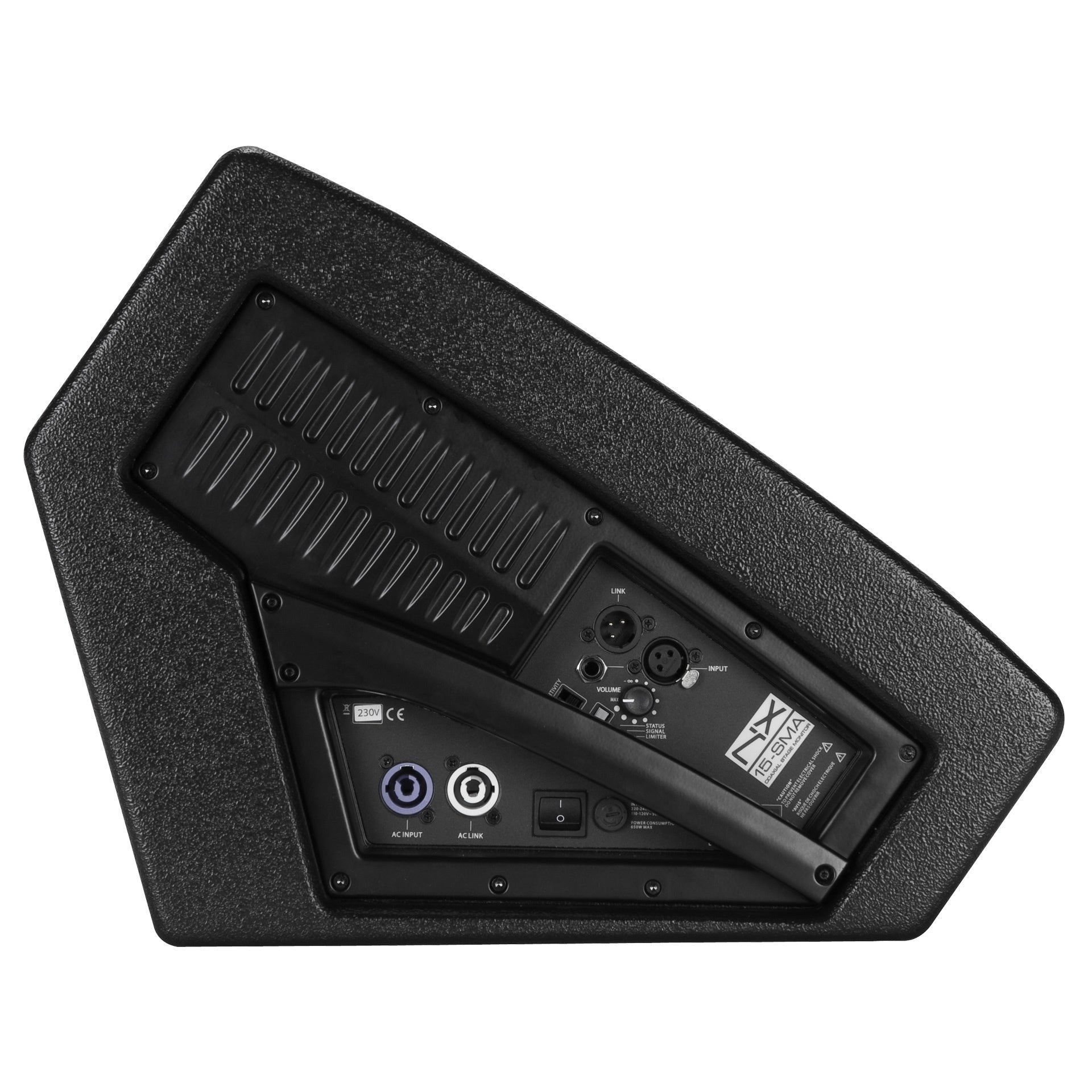

- INPUT/OUTPUT SECTION
- Input signal: bal/unbal
- Input connectors: XRL, Jack
- Output connectors: XLR
- Input sensitivity: +4 dBu
- PROCESSOR SECTION
- Crossover Frequencies: 1700 Hz
- Protections: RMS, HF
- Limiter: Soft Limiter
- Controls: Freefield, floor
- POWER SECTION
- Total Power: 1400 W Peak, 700 W RMS
- High frequencies: 400 W Peak, 200 W RMS
- Low frequencies: 1000 W Peak, 500 W RMS
- Cooling: Convection
- Connections: Powercon IN/OUT
- PHYSICAL
- Cabinet/Case Material: Baltic birch plywood
- Handles: 1 on side

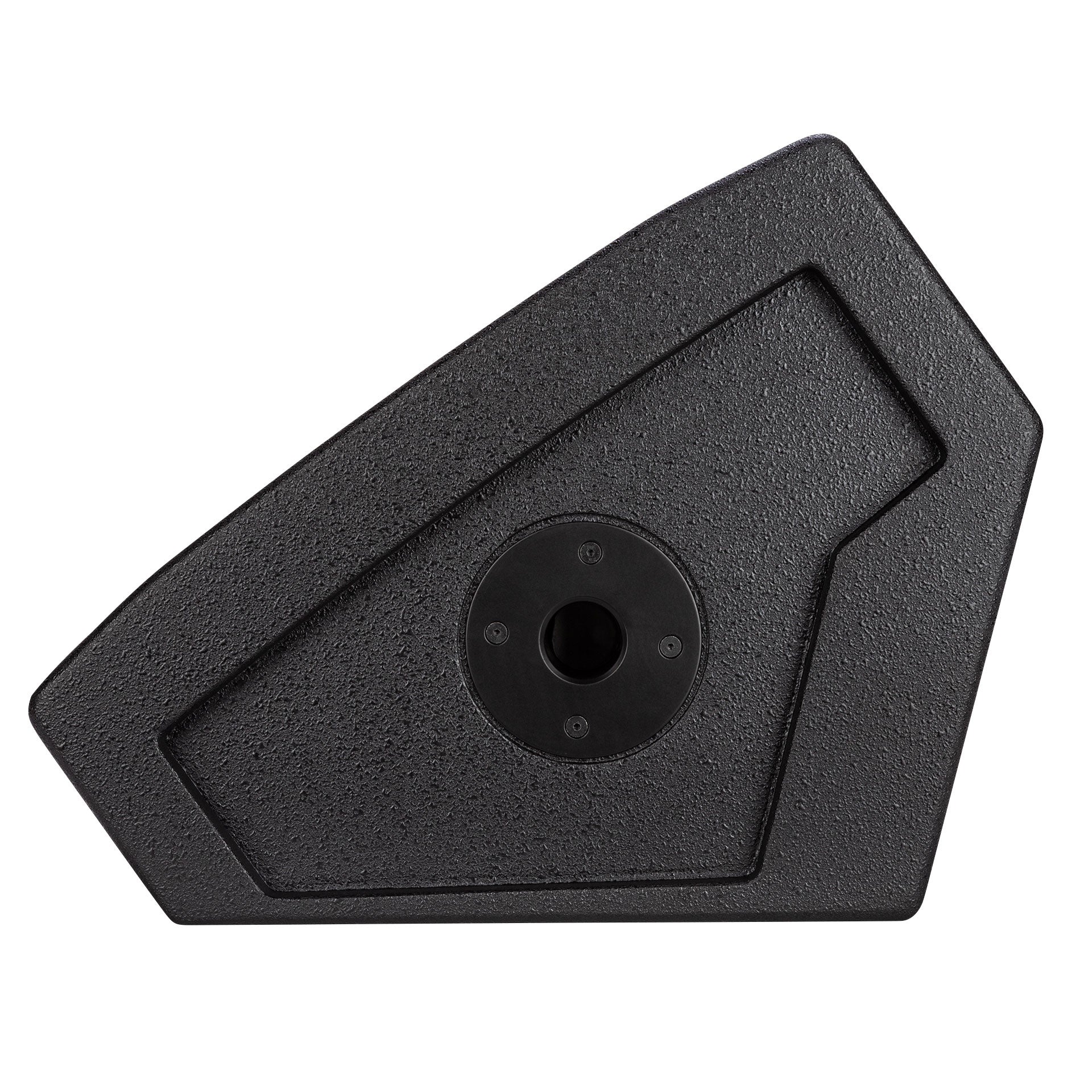

- Pole mount/Cap: Yes
- Grille: Steel
- Color: Black
- Dimensions (HxWxD): 14.25x25.59x18.43" (362x650x468mm)
- Weight: 44.53 lbs (20.2 kg)
- SHIPPING
- Package Dimensions (HxWxD): 28.11x18.27x22.4" (714x464x569mm)
- Package Weight: 54.01 lbs (24.5 kg)
