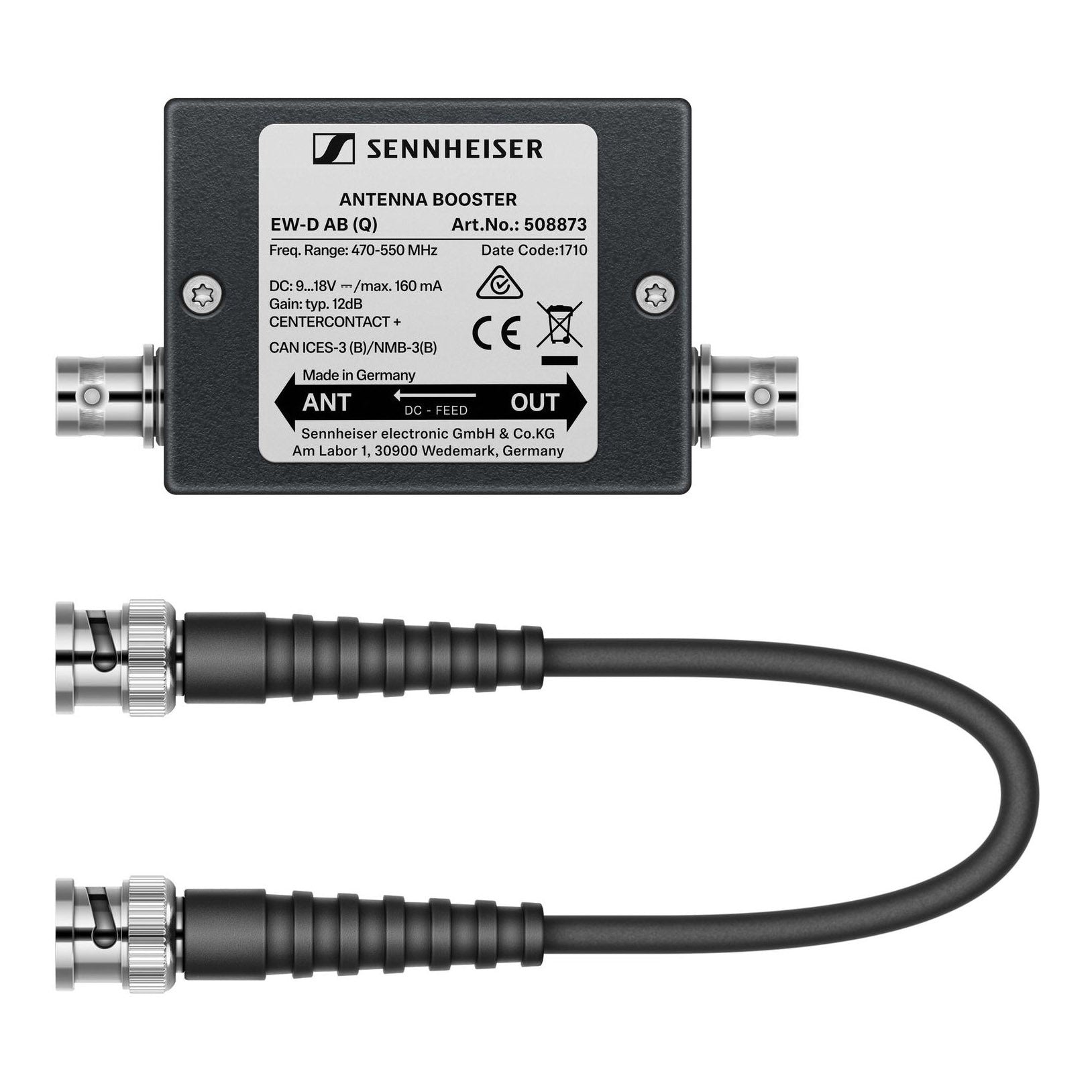

• Sennheiser EW-D AB Inline Antenna Booster with connectors
1 1

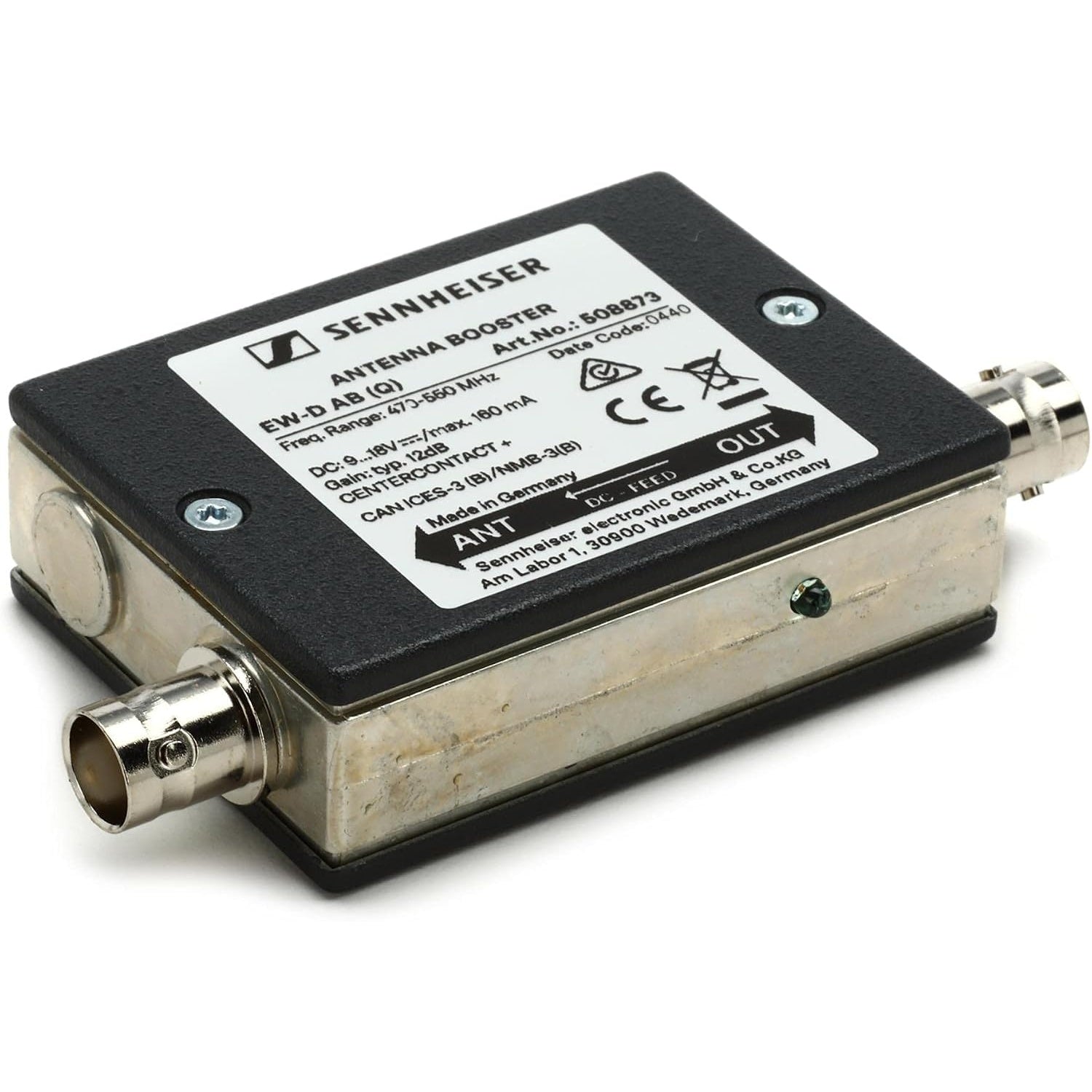

Sennheiser EW-D AB Inline Antenna Booster | Frequency: Q (470 to 550 MHz)

Sennheiser EW-D AB Inline Antenna Booster | Frequency: Q (470 to 550 MHz)

SoundPro Item: 100882 | Part Number: EW-D AB (Q)

$249.00
$289.00 $249.00
Your Price Sold out
MSRP: $289.00 | MAP: $249.00

Usually ships in 5-7 business days

  • Inline antenna booster
  • Improves wireless performance on the EW-D series receiver
  • Compensates for RF signal loss by delivering a 12dB boost
  • Ideal for long coax cable run scenarios
  • Available in different frequencies
Log in or register for YOUR best price

The EW-D AB inline antenna booster from Sennheiser is designed to improve wireless performance on the EW-D series receiver. It is inserted between a remote antenna and the EW-D ASA antenna splitter (sold separately). Booster compensates for RF signal loss by delivering a 12dB boost. That boost is particularly helpful in situations when long coaxial antenna cables are being run.

This inline antenna booster is available in different frequencies:

  • Q: 470 to 550 MHz
  • R: 520 to 608 MHz

    • For optimal results, be sure to match the booster frequency to the frequency being used in your EW-D system.

View full details
  • Frequency ranges
    • Q: 470-550 MHz
    • R: 520-608 MHz
  • Power supply (DC coupled) DC 12 V (DC 9 – 18 V) / max. 160 mA @ 12 V, center contact +
  • IIP3 >25dBm
  • Gain typically 12dB
  • Impedance 50Ω
  • Connections 2x BNC female, DC power supply from OUT to ANT
  • Operating temperature 14°F to 131°F (-10°C to 55°C)
  • Relative humidity 5-95% (non-condensing)
  • Dimensions 3.74x1.85x0.83"
  • Weight 4.23 oz (120 g)
