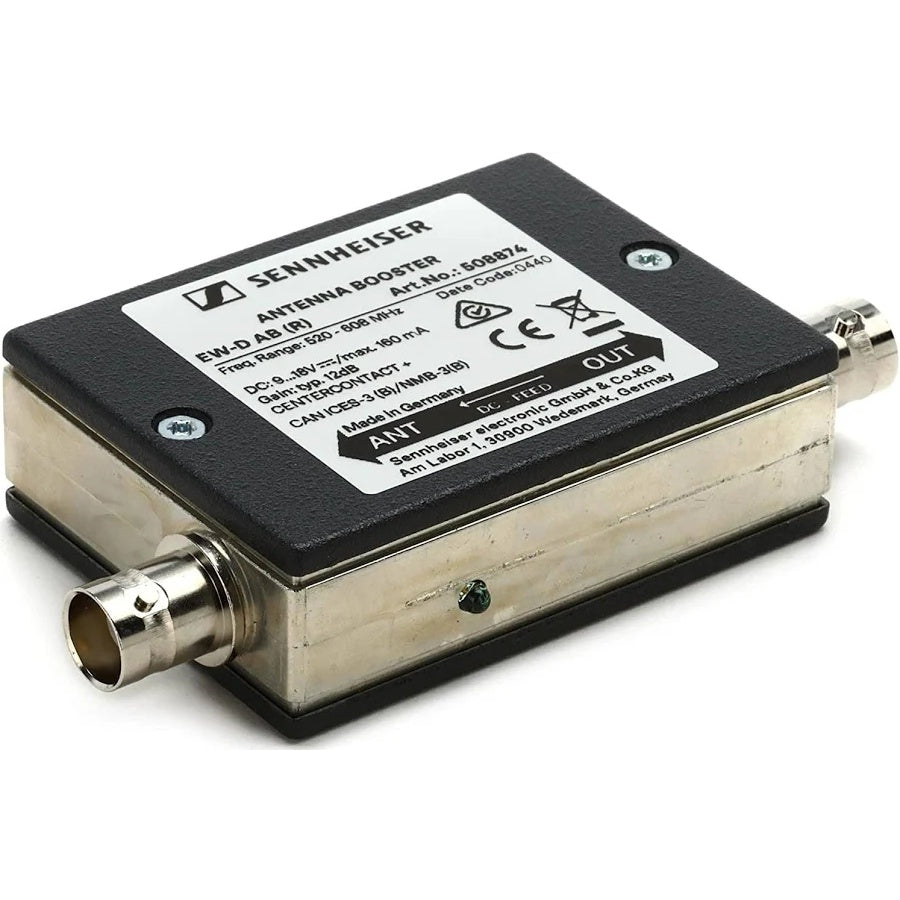

Sennheiser EW-D AB Inline Antenna Booster | Frequency: R (520 to 608 MHz)
Sennheiser EW-D AB Inline Antenna Booster | Frequency: R (520 to 608 MHz)
SoundPro Item: 100883 | Part Number: EW-D AB (R)
Usually ships in 5-7 business days
- Inline antenna booster
- Improves wireless performance on the EW-D series receiver
- Compensates for RF signal loss by delivering a 12dB boost
- Ideal for long coax cable run scenarios
- Available in different frequencies
The EW-D AB inline antenna booster from Sennheiser is designed to improve wireless performance on the EW-D series receiver. It is inserted between a remote antenna and the EW-D ASA antenna splitter (sold separately). Booster compensates for RF signal loss by delivering a 12dB boost. That boost is particularly helpful in situations when long coaxial antenna cables are being run.
This inline antenna booster is available in different frequencies:
- Q: 470 to 550 MHz
- R: 520 to 608 MHz
For optimal results, be sure to match the booster frequency to the frequency being used in your EW-D system.
- Frequency ranges
- Q: 470-550 MHz
- R: 520-608 MHz
- Power supply (DC coupled) DC 12 V (DC 9 – 18 V) / max. 160 mA @ 12 V, center contact +
- IIP3 >25dBm
- Gain typically 12dB
- Impedance 50Ω
- Connections 2x BNC female, DC power supply from OUT to ANT
- Operating temperature 14°F to 131°F (-10°C to 55°C)
- Relative humidity 5-95% (non-condensing)
- Dimensions 3.74x1.85x0.83"
- Weight 4.23 oz (120 g)
