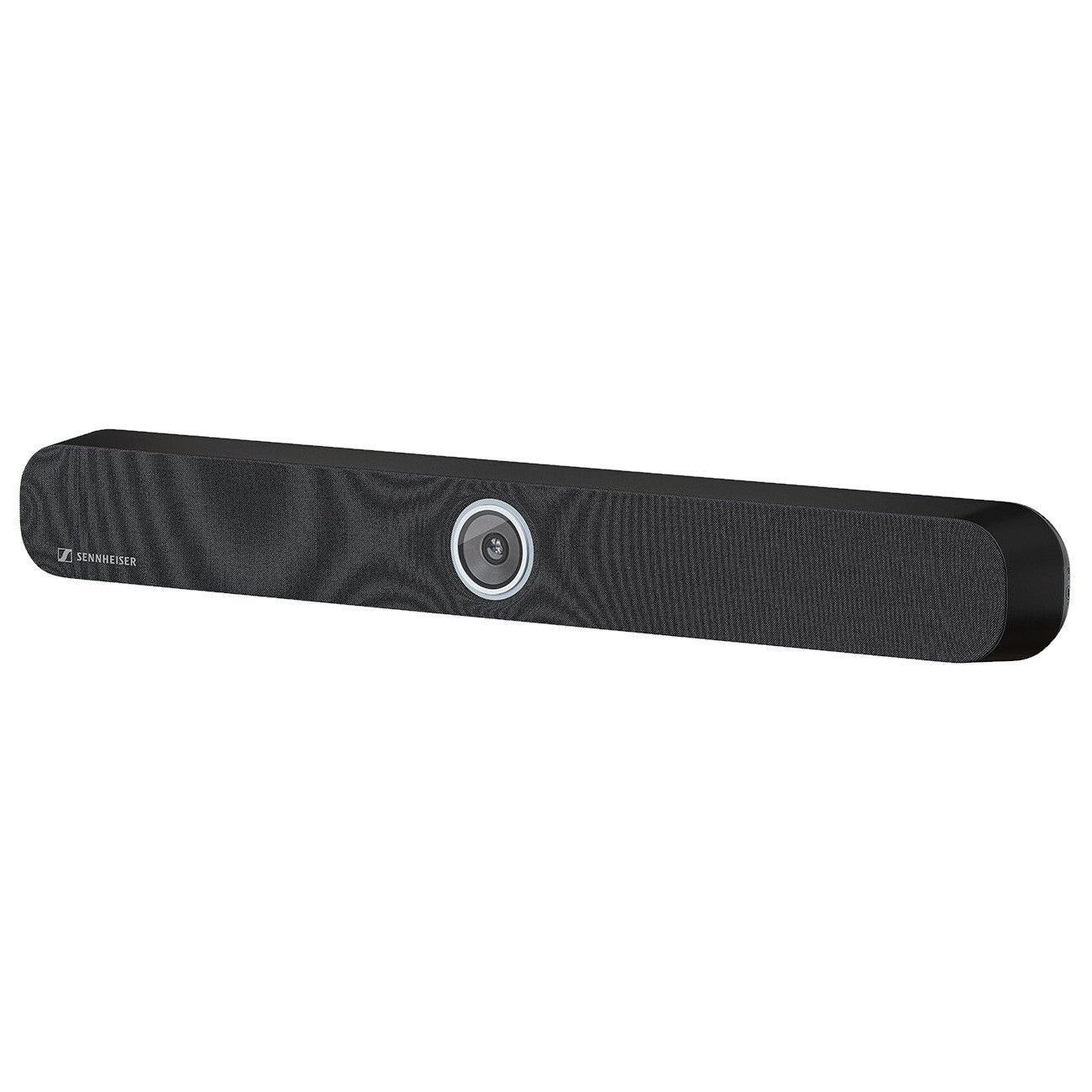

• Sennheiser TeamConnect Bar M

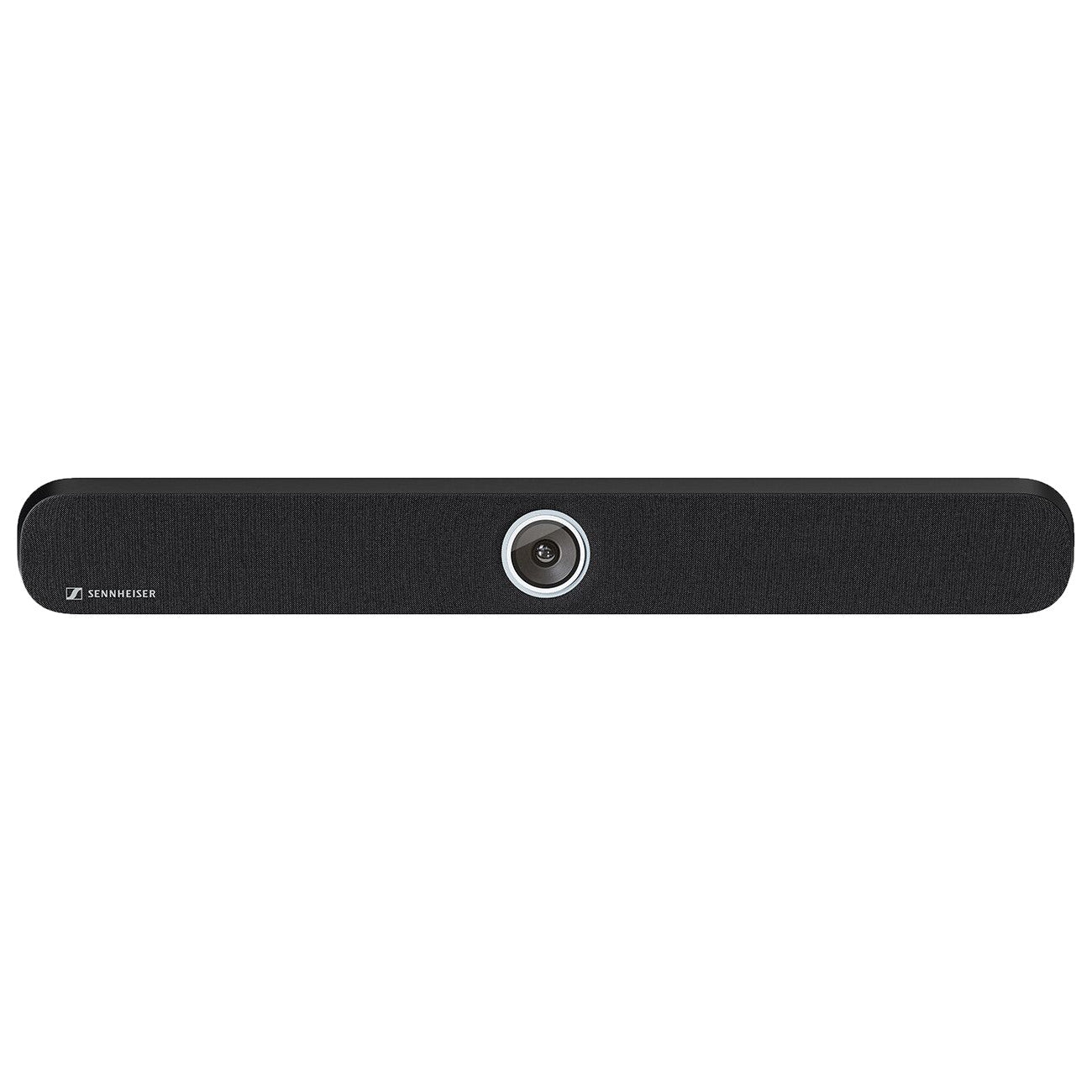

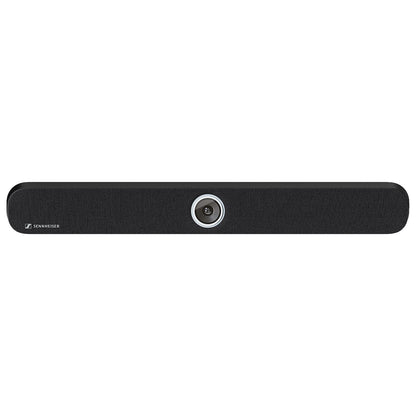

  • Sennheiser TeamConnect Bar M front

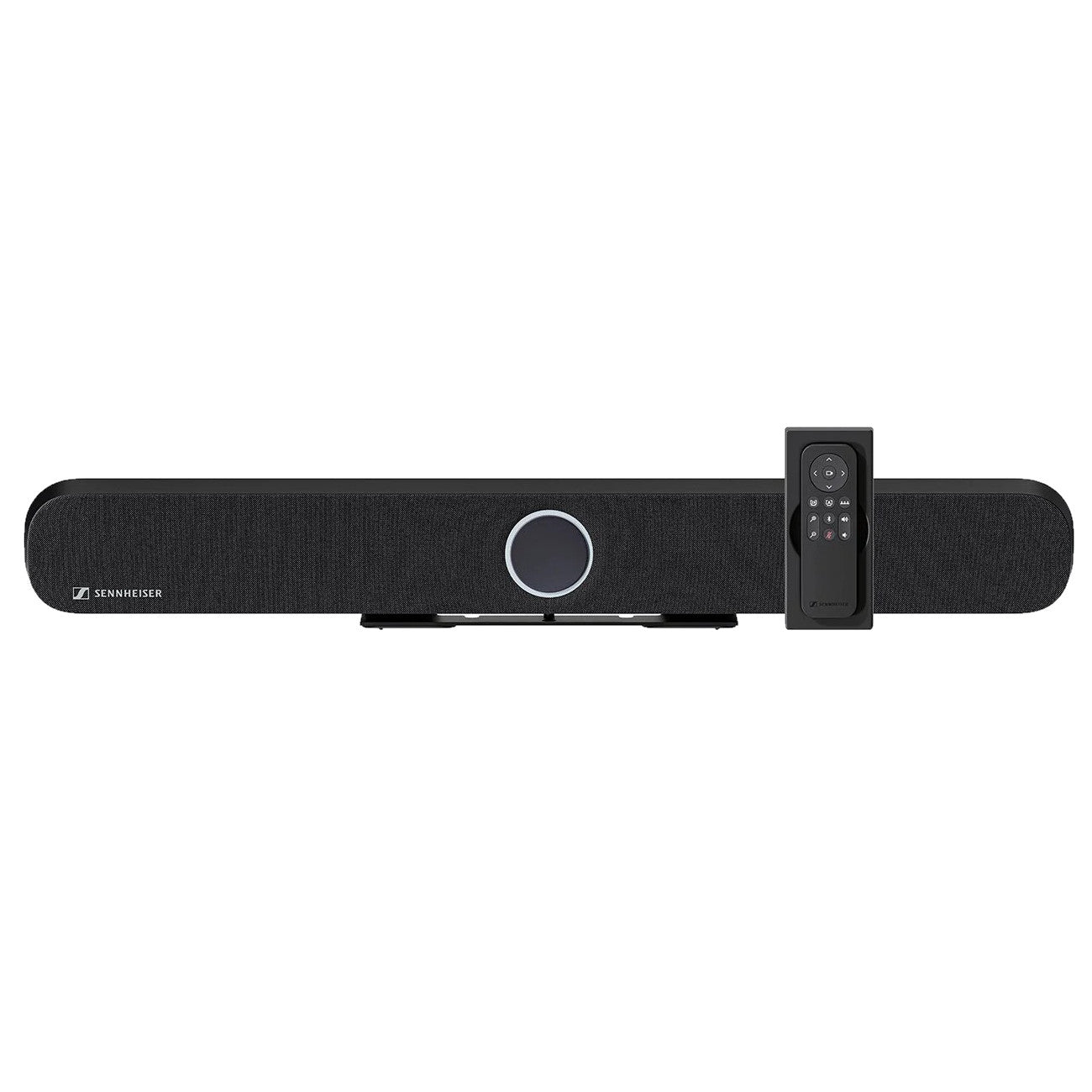

  • Sennheiser TeamConnect Bar M with remote

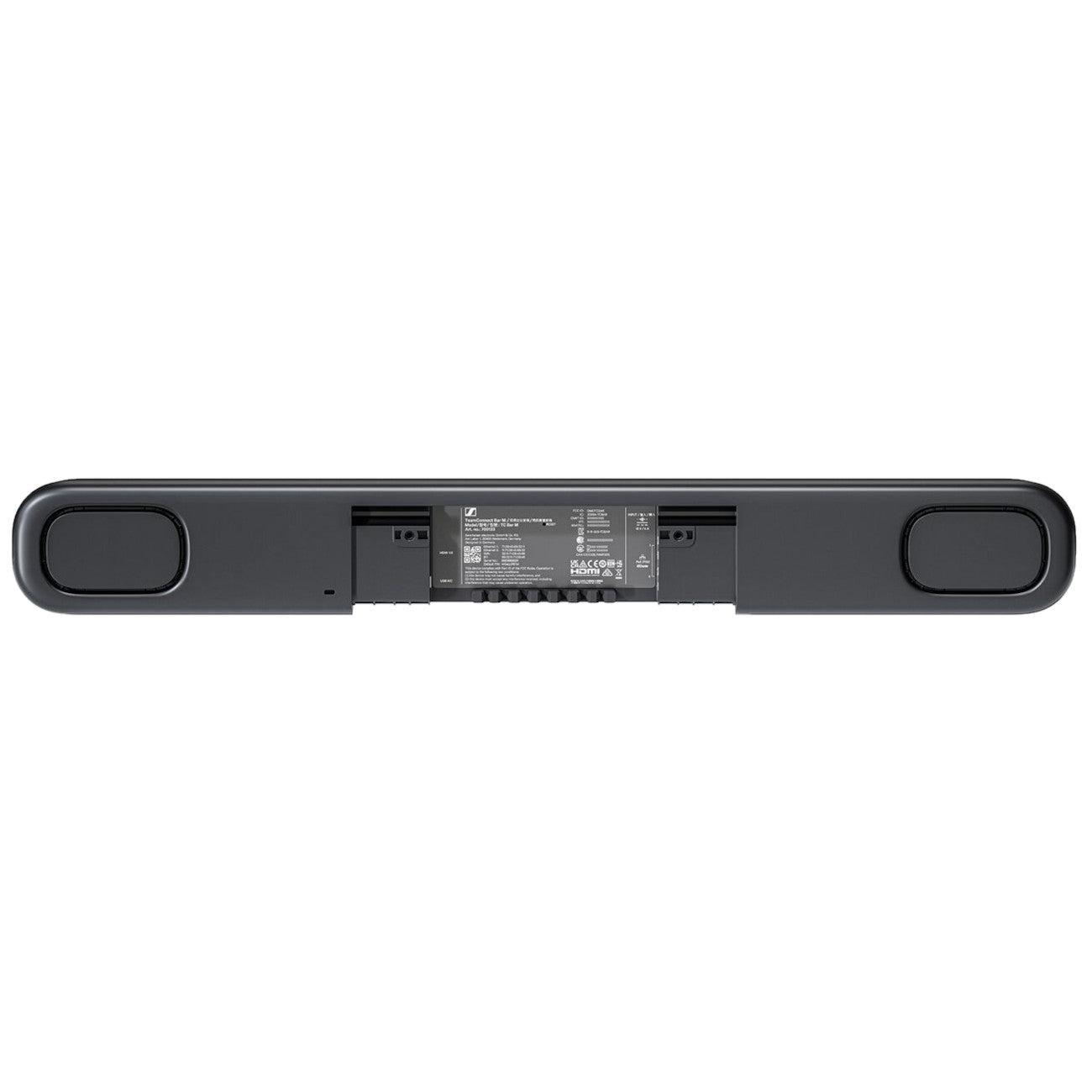

  • Sennheiser TeamConnect Bar M back

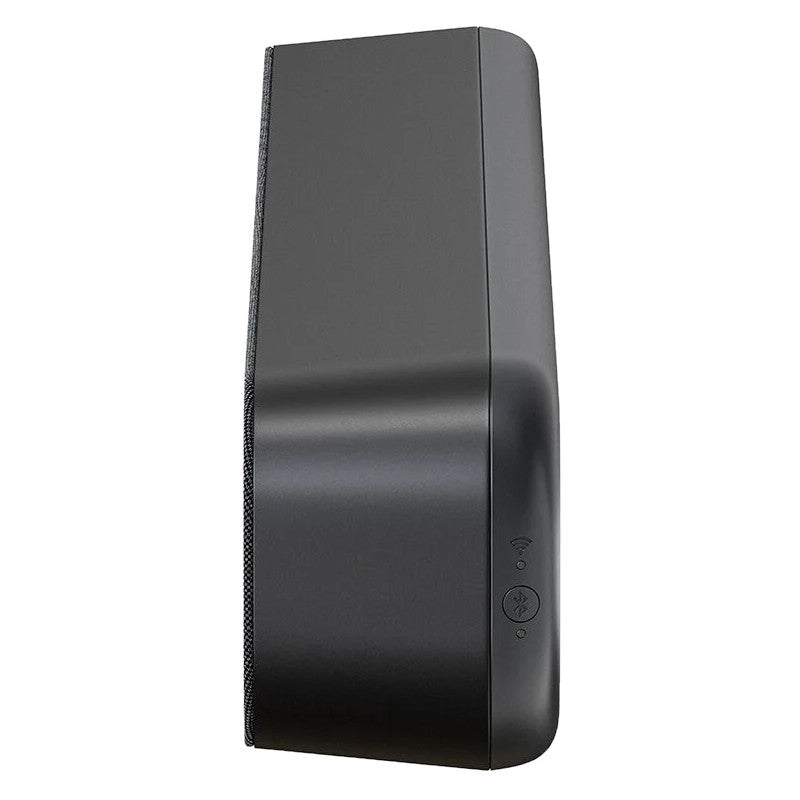

  • Sennheiser TeamConnect Bar M side

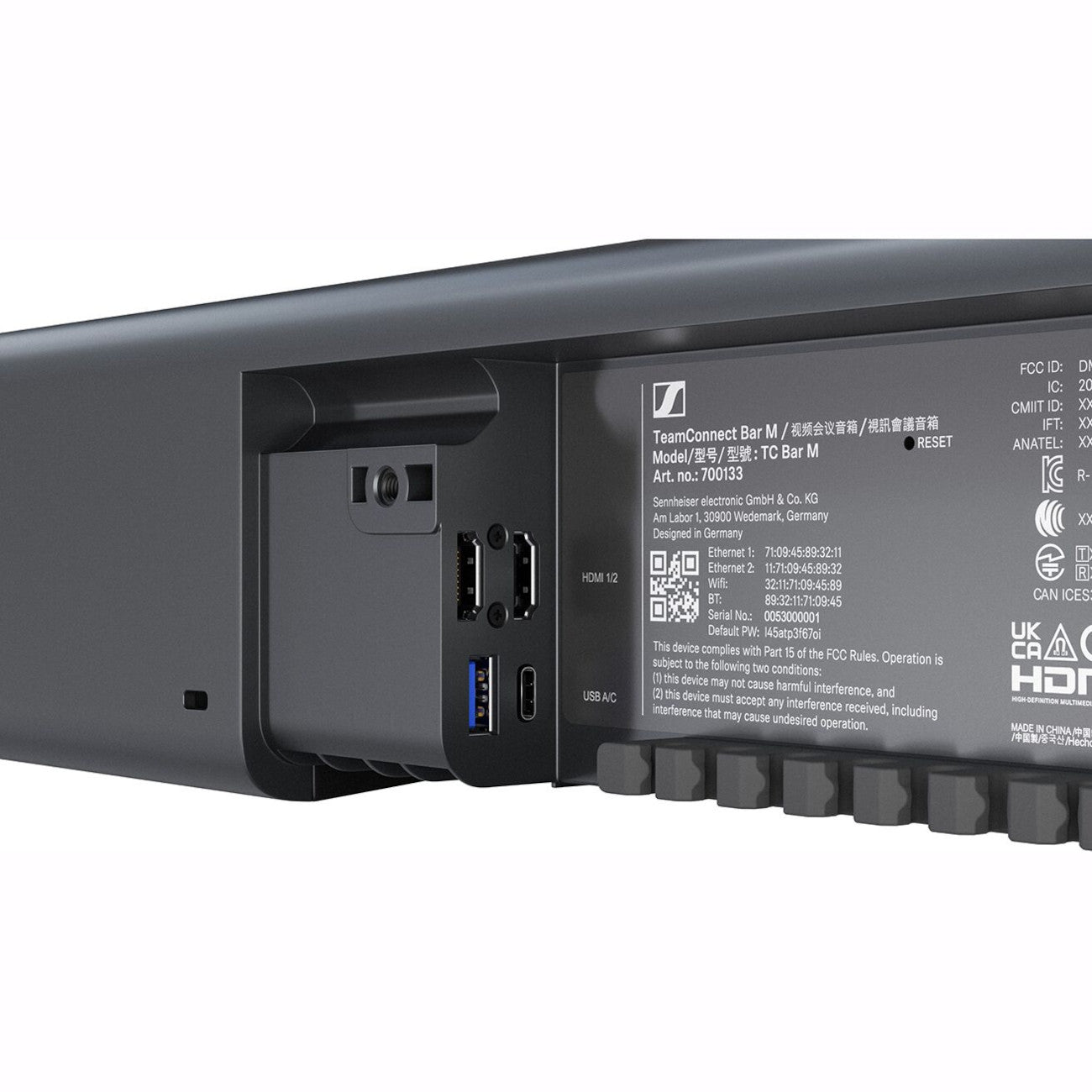

  • Sennheiser TeamConnect Bar M detail left

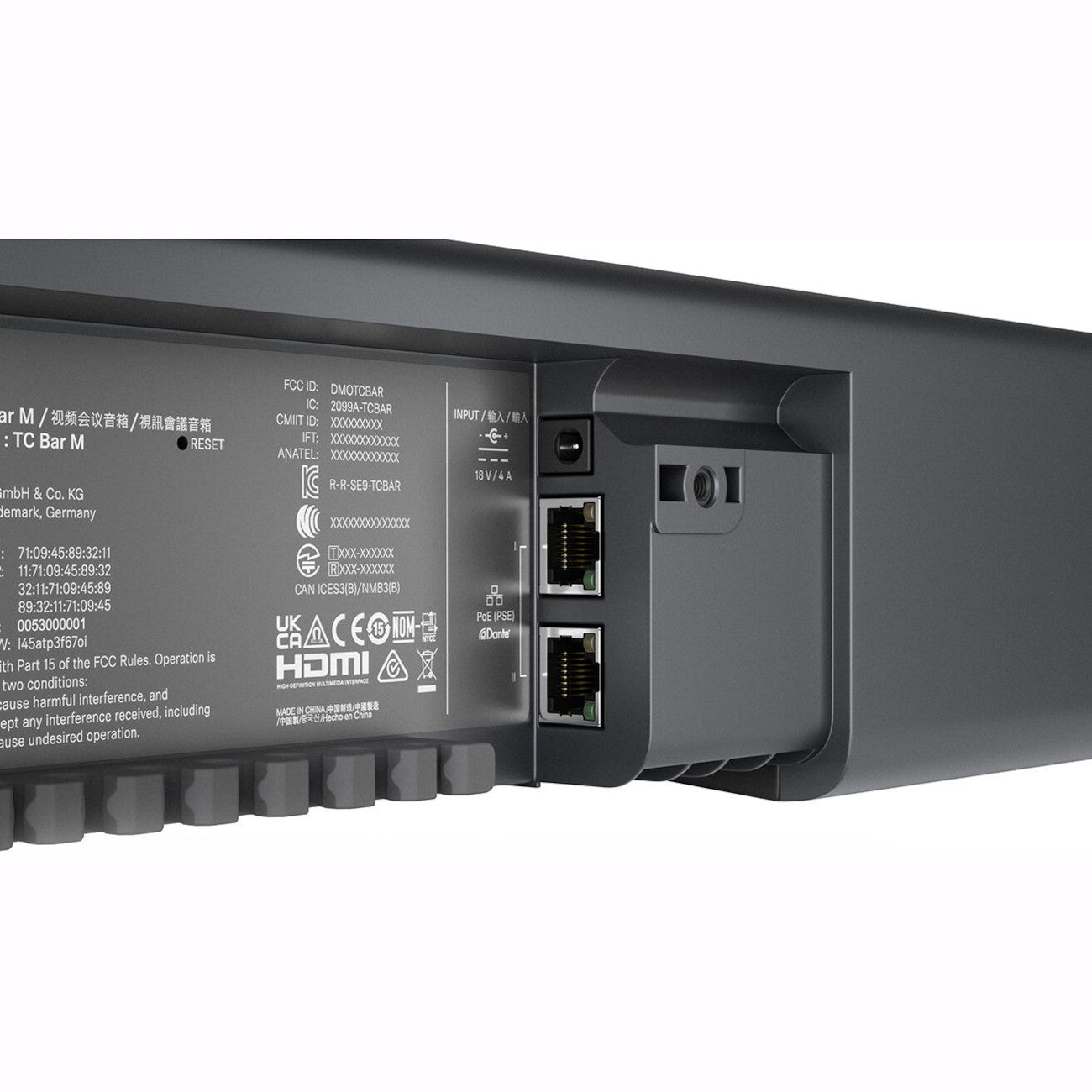

  • Sennheiser TeamConnect Bar M detail right
1 7

Sennheiser TeamConnect Bar M

Sennheiser TeamConnect Bar M

SoundPro Item: 139911 | Part Number: 700111

$1,999.00
$2,499.00 $1,999.00
Your Price Sold out
MSRP: $2,499.00 | MAP: $1,999.00

Usually ships in 5-7 business days

  • Plug and Play Device
  • Integrated Beamforming Technology
  • Flexible Extensions
  • High Video Quality
  • Full-Range Stereo Speakers
  • Built-In DSP
  • Multiple Mounting Options
  • Autoframing and Person Tiling
  • Control Management
  • Brand Agnostic Integration
  • Advanced Security Features
Log in or register for YOUR best price

The TeamConnect Bar M is the most flexible all-in-one device for mid-sized meeting rooms and collaboration spaces. The TC Bar M features 6 microphones and 4 speakers to deliver Trusted Sennheiser Audio Quality to every meeting. The TC Bar M is a true problem solver with benefits like easy setup, brand agnostic integration, easy management & control, high video quality, security and sustainability.

View full details
  • Dimensions (LxBxH)750x71x95mm
  • Weight2.5 kg
  • Operating temperature0°C to 40°C | 32°F to 104°F
  • Storage temperature-25°C to 70°C | -13°F to 158°F
  • Relative humidity operation0 to 75%, non-condensing
  • Relative humidity storage0 to 95 %, non-condensing
  • DC IN18V &9107;, max. 4 A
  • Max. power consumption72W
  • Voltage range PoE (PSE) 44.0 – 57.0V &9107; (IEEE 802.3af Type 1, PoE)
  • Power State Information Standby Mode (all ports deactivated) Networked Standby (all ports activated) ≤ 0.50W (Entered after 2.5 hours with no activity on any network port) ≤ 2.00W (Entered after 20 minutes of inactivity)
  • Loudspeaker
    • Total number of speakers: 4 with passive radiator
    • Type: full range
    • Diameter: 50 mm (2")
    • Amplifier: Class-D
    • Max. SPL (output): 84 dB SPL
    • Total Audio Power (RMS/PEAK): 20W / 40W
    • Frequency response: 100 Hz - 18 kHz
    • THD at max. output: <5%
  • Microphones
    • Transducer principle: MEMS
    • Pick-up pattern: Beamforming Array
    • Number of microphone capsules: 6
    • Frequency range: 100 Hz to 14.5 kHz
    • Pickup range: 4.5 m
    • Dynamic range: 69 dB (A)
  • Interfaces
    • HDMI out: 2x HDMI 2.0
    • USB-C: USB 3.1 (Gen 1)
    • USB-A power output: USB 3.1 (Gen1); 5V &9107;, max. 900 mA
    • DC IN dimension: 5.5x2.1x10.5 mm
    • Ethernet: 2 x 1000/100/10 Mbit/s (RJ45) Note: Only use network cables with the standard CAT5e (F/STP) or better.
    • Note: Only use network cables with the standard CAT5e (F/STP) or better.
  • Camera
    • Technology: ePTZ
    • Diagonal field of view: 120°
    • Horizontal field of view: 115°
    • Resolution: UHD 2160p (4K), 1080p, 720p, 960×480, 848×480, 640×480, 640×360, 432×240
    • Zoom: 5x digital zoom
