Sennheiser XSW 1-835 DUAL Wireless Handheld Microphone System
Sennheiser XSW 1-835 DUAL Wireless Handheld Microphone System
SoundPro Item: 27737 | Part Number: XSW 1-835 DUAL-A
Usually ships in 5-7 business days
- Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules (e825 or e835)
- Antenna-switching diversity reception
- Integrated antennas
- Automatic frequency management and synchronization via remote channel for easy setup
- Selectable UHF frequencies within a large bandwidth
- Up to 10 compatible channels

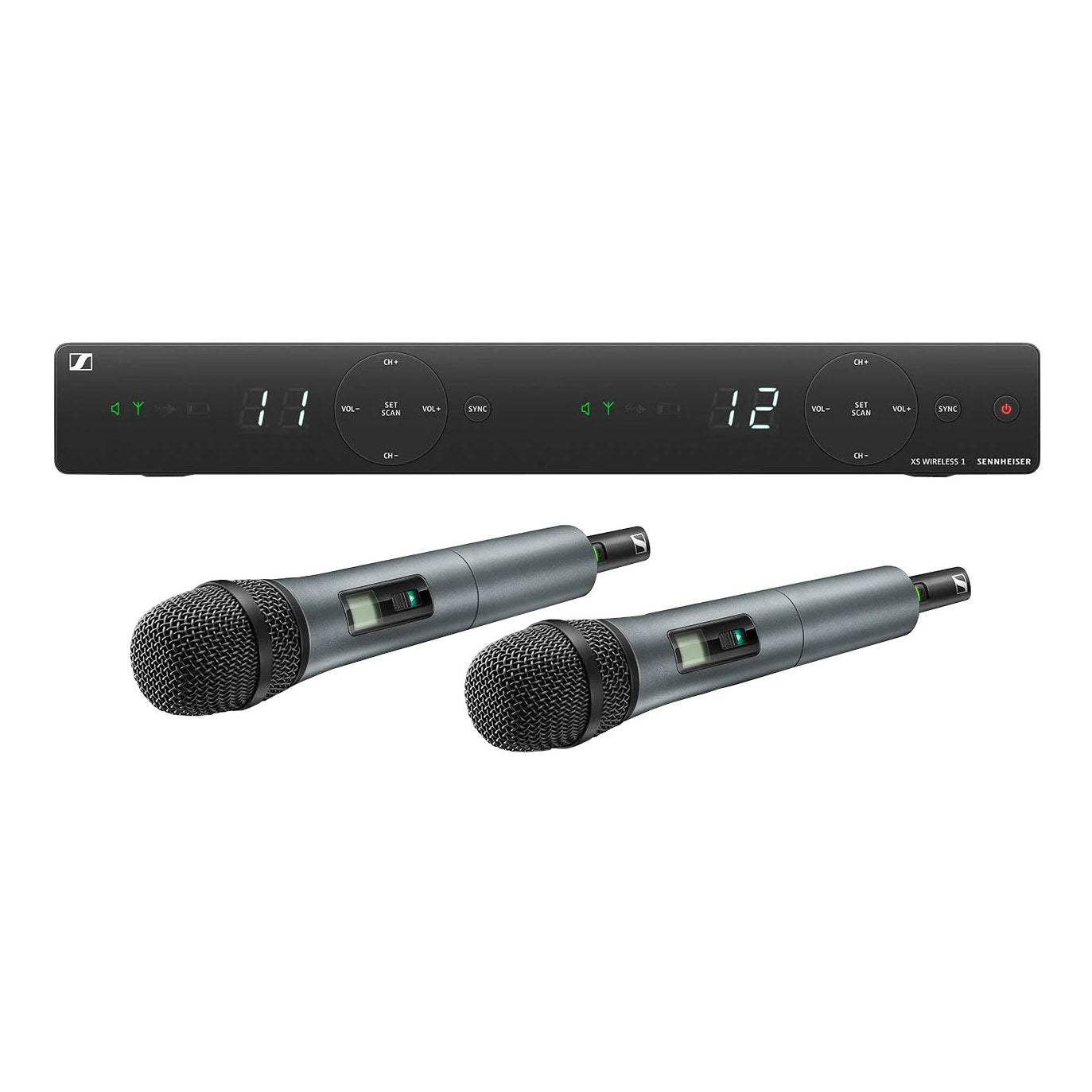

The XSW 1-835-A UHF Vocal Set with e835 Dynamic Microphone from Sennheiser is an easy to use all-in-one wireless system for singers and presenters. It can be used to capture audio for live sound, stage, and theater applications. The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as two vocal microphone transmitters and microphone clamps, as well as two AC power adapters and four AA batteries.
- System
- Frequency range
- 548-572 MHz
- 614–638 MHz
- 766-790 MHz
- 794-804 MHz
- 821-832 / 863-865 MHz
- 606-630 MHz
- 925-937.5 MHz
- 806.125 – 809.750 MHz
- Dimensions: Ø 48 x L 180 mm
- Connector: XLR-3
- Frequency response: 55 - 16,000 Hz
- THD, total harmonic distortion: ≤ 0.9%
- Transducer principle: dynamic
- Weight: 0.73 lbs (330 g)
- Pick-up pattern: cardioid
- Nominal impedance: 300 Ω (at 1 kHz)
- Min. terminating impedance: 1 kΩ
- Storage temperature: –20°C to +70°C
- Operating temperature: 0°C to +40°C
- Signal-to-noise ratio: ≥ 103 dBA
- Switching bandwidth: Up to 24 MHz
- Modulation: Wideband FM
- Frequency: 80 factory presets (8 banks of 10 channels each)
- Sensitivity: 1.8 mV/Pa (free field, no load at 1 kHz)
- Synchronization: Transmitter: 2.4 GHz, low power OQPSK (only active during synchronization)
- Temperature Range: 0 °C ... +40 °C (+32 °F ... +104 °F)
- Frequency range: 548-572 MHz
- Frequency response
- 766-790 MHz
- 794-804 MHz
- 821-832 / 863-865 MHz
- 925-937.5 MHz
- Frequency range

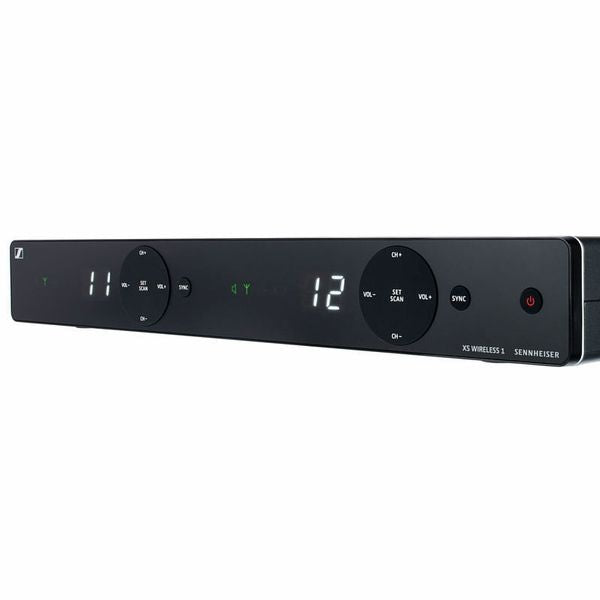

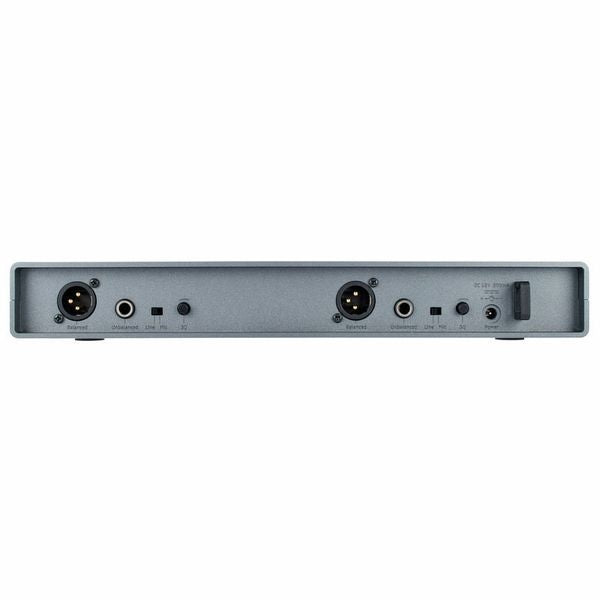

- EM-XSW 1 DUAL
- Dimensions: approx. 320x126.5x42mm
- Weight: approx. 620 g
- Power supply: 12 V DC nom. / 300 mA
- Output voltage: (at peak deviation, 1 kHz AF) 1/4“ (6.3 mm) socket (unbalanced): +6 dBu
- Housing: Rugged ABS housing
- Sensitivity: < 3 μV at 52 dB(A) rms S/N (at peak deviation)
- Squelch: Adjustable from 3 dBμV to 28 dBμV
- AF frequency response: 50 to 16,000 Hz (–3 dB)
- Audio adjustment range: 45 dB, adjustable in 5 dB steps
- Line / Mic level: 20 dB, switchable
- Receiver Principle: Double superheterodyne
- Diversity principle: Antenna switching diversity via internal antennas

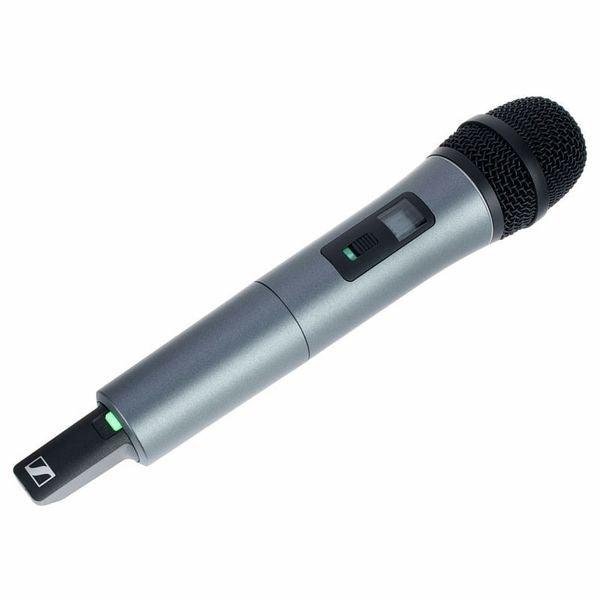

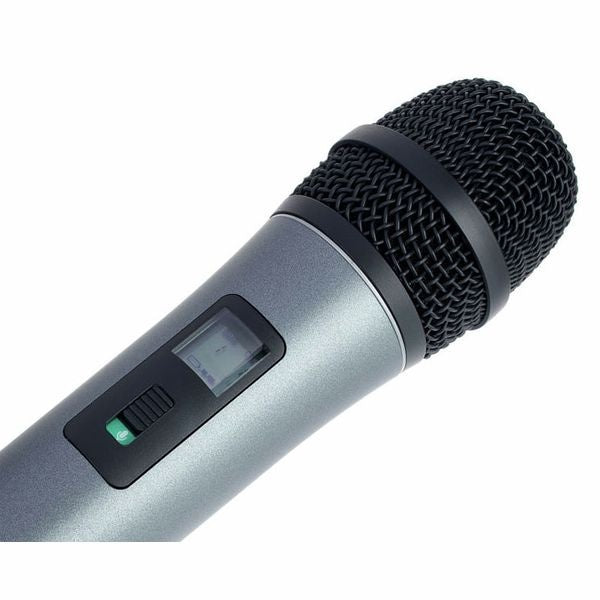

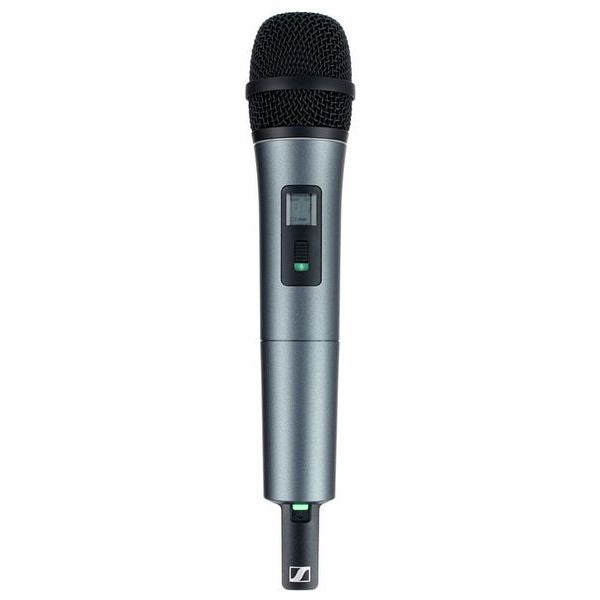

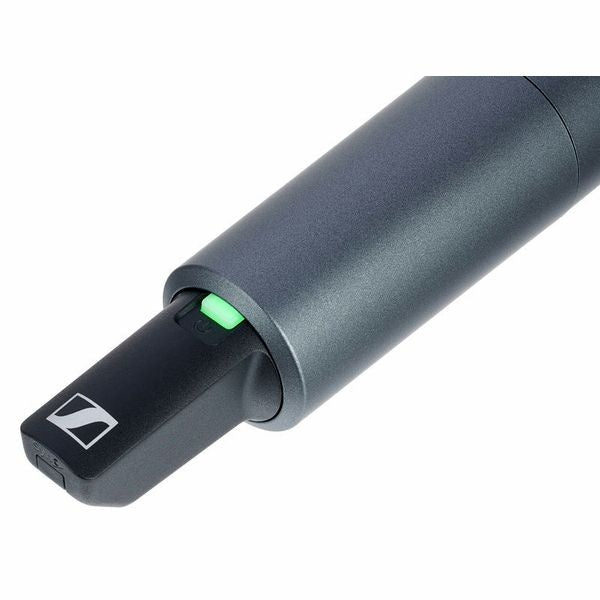

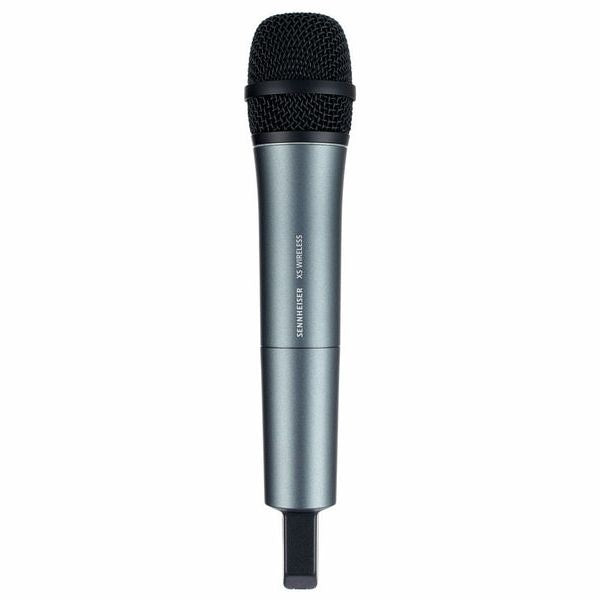

- SKM 825-XSW / SKM 835-XSW
- Dimensions: Approx. 260 x 50 mm
- Microphone: Dynamic
- Weight: Approx. 245 g
- Pick-up pattern: Cardioid
- RF output power: 10 mW
- Operating time: Approx. 10 hrs

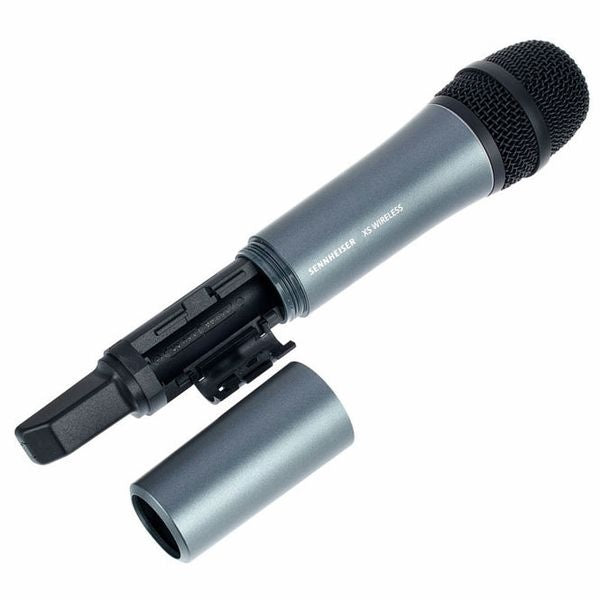

- Power supply: 2 AA size batteries, 1.5 V
- Housing: Rugged ABS housing
- Sensitivity: 0 to -30 dB, adjustable in 10 dB steps
- Input sensitivity: 1.5 mV / Pa
- AF frequency response: 80-16,000 Hz
