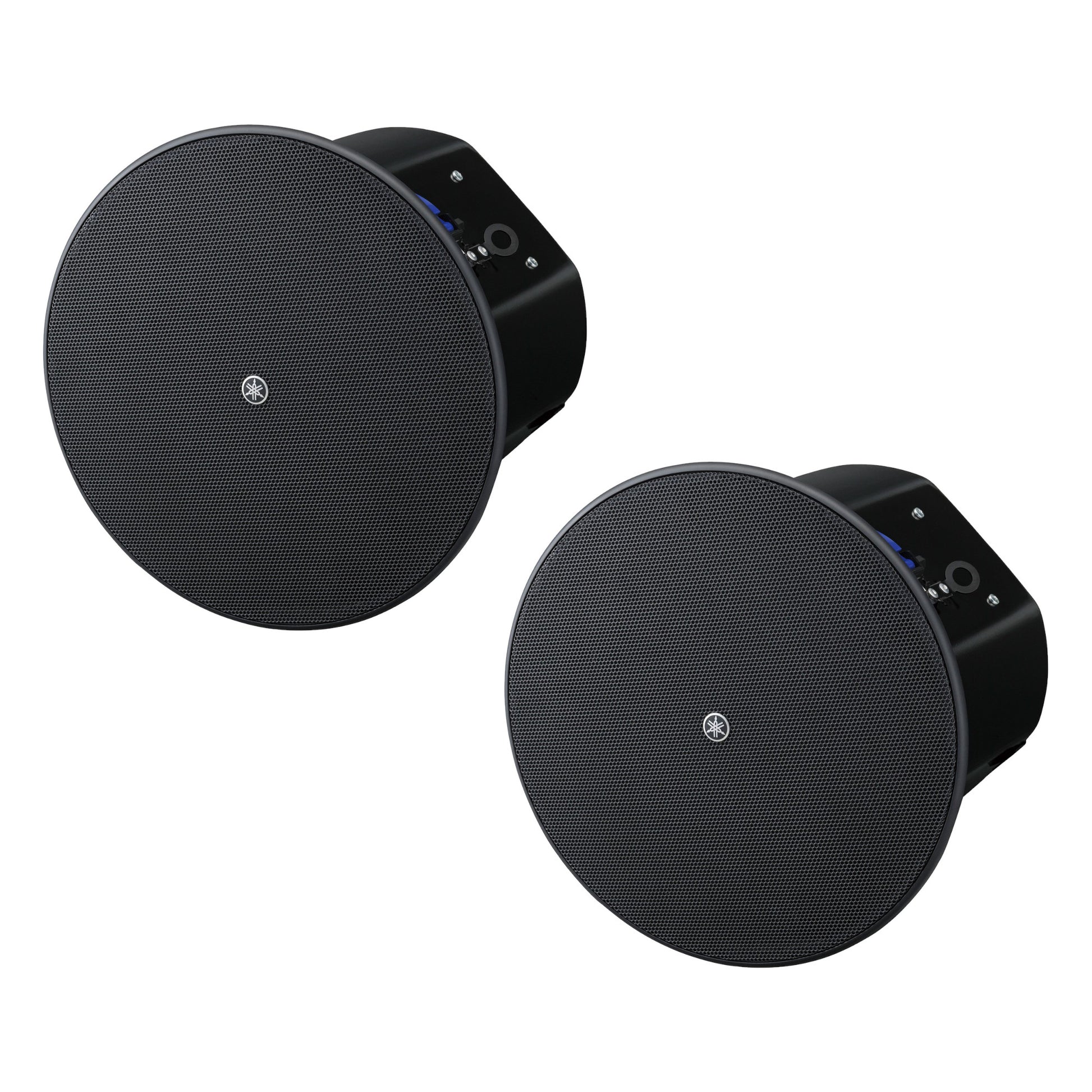

Yamaha VXC8 8-Inch Ceiling Speakers (Pair) | Color: Black
Yamaha VXC8 8-Inch Ceiling Speakers (Pair) | Color: Black
SoundPro Item: 66954 | Part Number: VXC8
Usually ships in 5-7 business days
- Priced and sold as pairs
- Series offers three different woofer sizes in either black or white
- Features newly customized transducers for superb music reproduction as well ascrystal clear announcements
- Equipped with internal transformers that allow both high and low impedance drive, which can be selected by simply switching the tap on the baffle
- Anti-Drop tab allows the speakers to be mounted temporarily in the ceiling for improved safety and ease of installation
- A flexible carrying band makes the speakers very portable and allows carrying multiple speakers at once
- Comes complete with O-rings and tile rails for safer and smoother installation
- Overload protection circuit provided to protect speaker components
- Comes with paintable speaker grilles for flexible design ideas
Priced and sold as pairs
The VXC8 from Yamaha is an 8” in-ceiling speaker designed for use in commercial installations that require stellar music reproduction and accurate vocals for overhead announcements.
- Speaker Type2-way, Acoustic suspension
- Frequency Range (-10dB) 55Hz - 20kHz (Half-space:2π)
- Nominal Coverage100° conical (Half-space :2π)
- Components8" Cone LF, 1” soft dome
- Power Rating
- NOISE: 90W
- PGM: 180W
- PEAK: 360W
- Nominal Impedance8Ω
- Transformer Taps
- 100V: 60W (170Ω), 30W (330Ω), 15W (670Ω)
- 70V: 60W (83Ω), 30W (170Ω), 15W (330Ω), 7.5W (670Ω)
- SPL
- Sensitivity (1W; 1m on axis): 90 dB SPL (Half-space 2π)
- Peak (Calculated): 116dB SPL (1m, Calculated based on power rating and sensitivity, exclusive of power compression)
- I/O Connectors1 x Euroblock (4P) : (Input: + / -, Loop Thru: + / -)
- FinishBlack or white
- Dimensions
- Diameter: 325mm (12.8")
- D: 259mm (10.2")
- Net Weight6.6kg (14.6lbs)
- Cutout SizeØ285 mm (Ø11 1/4")
- Required Ceiling Board Thickness5 mm – 35 mm
- CertificateUL1480, NFPA70, CE, EAC, RoHS
