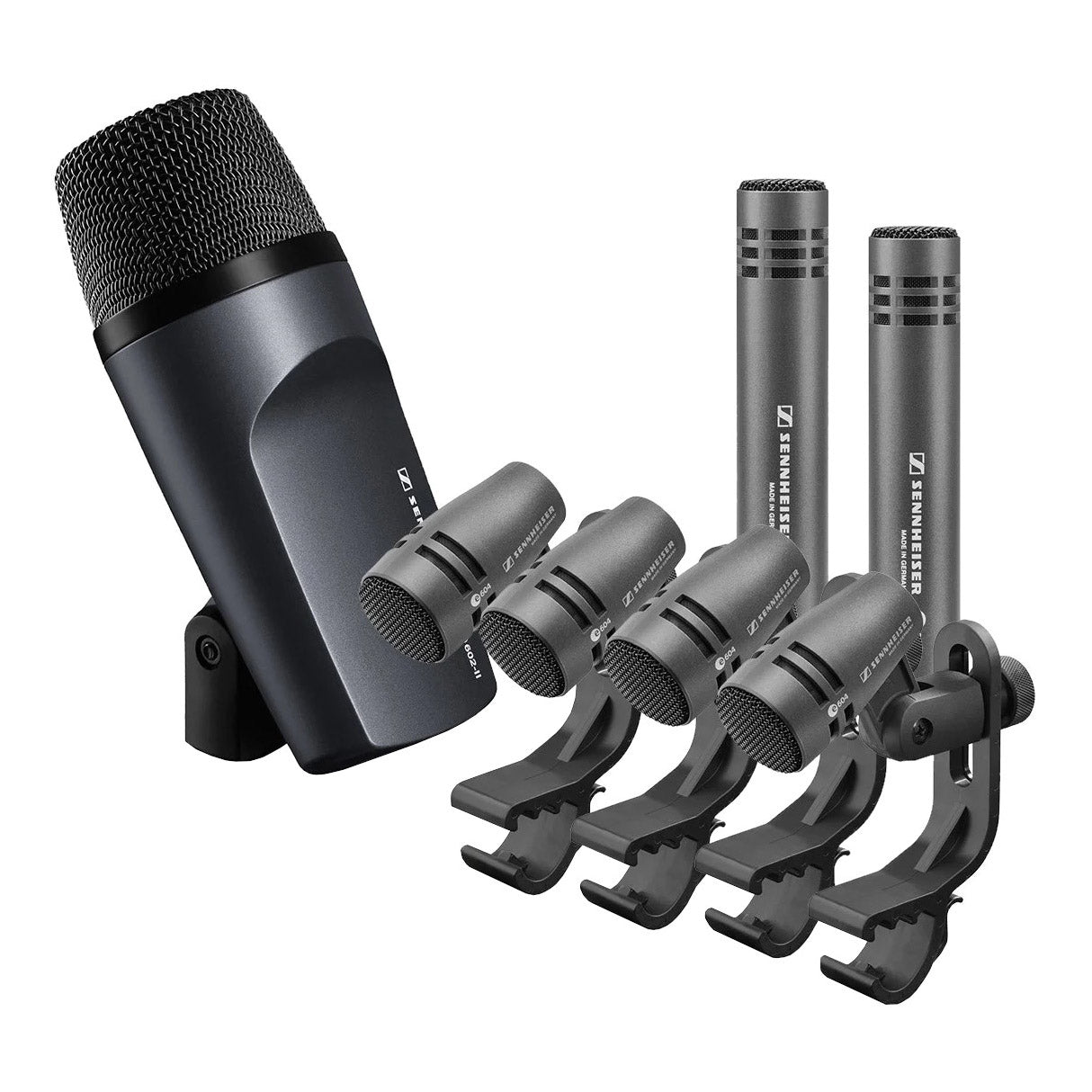

The Sennheiser e600 drum mic kit includes an e602 II for your bass drums, four e604 mics for your snare and tom, and two e614s for your cymbals and overheads. Also included is a heavy-duty case for optimal protection during transport or storage.
The e602 II offers high SPL handling, fast transient response, and extended low-frequency capture of instruments. It features a dynamic element with a lightweight voice coil and a built-in hum-compensating coil for picking up loud sources devoid of noise and distortion. The cardioid polar pattern minimizes off-axis noise and feedback, making it ideal for use on stage or in the studio. An integrated stand mount enables easy placement and provides a pivoting angle for optimal positioning.
The e604 captures frequencies between 40Hz-18kHz, doing so at SPLs over 160 dB without distortion. The e604 features a dynamic transducer, which does not require phantom power, and its cardioid polar pattern is effective in minimizing pickup and feedback at the off-axis sections of the capsule. An integral stand mount screws directly onto mic stands, but the included clip of the microphone attaches the microphone to the rim of a drum or the bell of saxophones. A slight bump between 4 and 5 kHz allows instruments to cut through the mix.
The e614 delivers an extended frequency response, high SPL handling, fast transient response, and more. Its compact build makes it easy to fit into tight spaces. The supercardioid polar pattern makes it easy to “aim” the mic toward the desired sound source, eliminating ambient sound at the off-axis sections of the mic’s capsule. This helps in minimizing feedback and avoiding the accidental capture of residual noise. The medium sensitivity reduces “bleed” from other instruments on stage.
Sennheiser E600 Kit Features
- 1x e602-II for bass drums
- 4x e604 for snares and toms
- 2x e614 for cymbals and overheads
- e 602-II, cardioid instrument microphone for bass drums1
- e 604, cardioid microphone for snare and tom-tom4
- e 614, super-cardioid, permanently polarized condenser microphone for cymbal and overhead2
- e 614
- Dimensions: Ø 20mm, L = 100mm
- Connector: XLR-3
- Frequency response: 40 - 20000 Hz
- Max. sound pressure level: 139 dB/SPL
- Transducer principle: pre-polarised condenser microphone
- Weight: 93 g
- Pick-up pattern: super-cardioid
- Sensitivity in free field, no load (1kHz): 3 mV/Pa = - 50dB (0 dB = 1 V/Pa)
- Nominal impedance: 50 Ω
- Min. terminating impedance: 1000 Ω
- Phantom powering: 12 – 52 V / 3 mA
- Equivalent noise level: 24 dB(A)
- Equivalent noise level weighted as per CCIR: 35 dB
- 602 ii
- Dimensions: Ø 60 x 153 mm
- Connector:XLR-3
- Transducer principle (Microphone): dynamic
- Frequency response: 20 - 16000 Hz
- Weight: 318 g
- Pick-up pattern: cardioid
- Sensitivity in free field, no load (1kHz): 0,25 mV/Pa; (50 Hz) 0,9 mV/Pa
- Nominal impedance: 350 Ω
- Min. terminating impedance: 1000 Ω
- e 604
- Dimensions: Ø 33x59mm
- Connector: XLR-3
- Frequency response (Microphone): 40 - 18000 Hz
- Transducer principle (Microphone): dynamic
- Weight: 60 g
- Pick-up pattern: cardioid
- Sensitivity in free field, no load (1kHz): 1,8 mV/Pa
- Nominal impedance: 350 Ω
- Min. terminating impedance: 1000 Ω
- Weight w/o cable: 60 g
More about Sennheiser’s Evolution microphones series
Choose a microphone that grows with your sound. Sennheiser’s Evolution microphones are defined by impressive sound, precision focus, and extreme ruggedness. Built on the legacy of renowned German engineering, Evolution is the culmination of Sennheiser’s expert engineers, countless tests, and meticulous manufacturing standards—all with the goal of producing quality gear that provides perfect live sound.
The Evolution wired 600 series is a family of entry-level mics designed to enhance your instrument as soon as you plug them in. These mics are easy to use, yet ruggedly built, giving great sound and performance to the most novice user.
