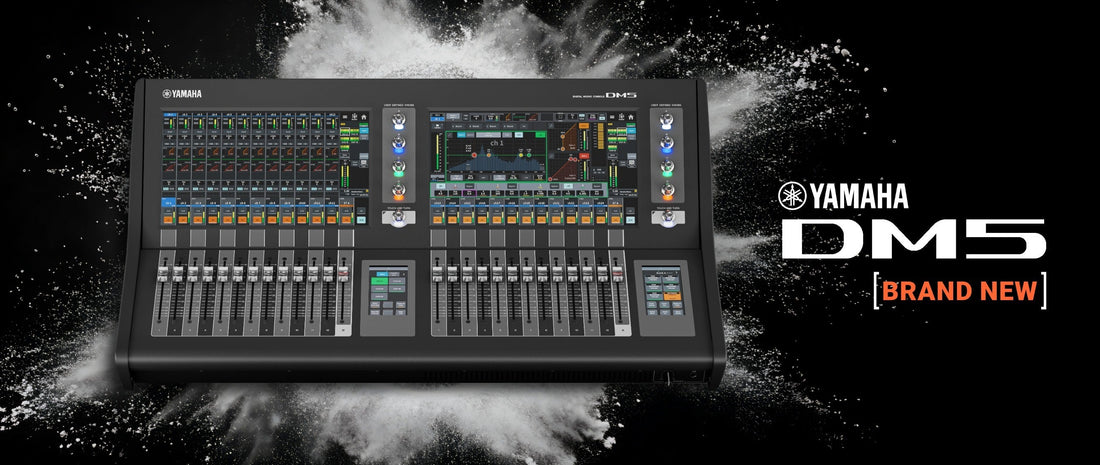

Yamaha DM5 Series: DM7 Power in a Mid-Size Console, Plus the New RUio I/O Line
Yamaha DM5 Series: DM7 Power in a Mid-Size Console, Plus the New RUio I/O Line
Yamaha just closed the gap between its mid-tier consoles and its flagship. The new DM5 Series runs on the exact same processing engine as the DM7, with shared firmware and full show file compatibility, in a chassis sized for touring, house of worship, education, corporate AV, broadcast, and theater teams who don't need 120 channels but don't want to compromise on sound quality either. Alongside it, Yamaha launched the RUio Utility I/O Series, a new line of Dante-based stage boxes and rack I/O. Here's what's actually in the lineup, what it costs, and how to decide between the DM5 and the compact DM5C.
SoundPro is an authorized Yamaha dealer taking priority pre-orders now, with limited supply for the October 2026 ship window.
What Makes the DM5 Different
The headline feature isn't a spec, it's the engine. DM5 is built on the same processing platform as the DM7, which means shared firmware, the same editor software, and seamless show file compatibility between the two console lines. An engineer who knows a DM7 can sit down at a DM5 and mix without relearning a workflow or rebuilding a show file, and a venue running both can move consoles between rooms without a translation step.
That shared engine also means DM5 inherits premium rack processing derived from Yamaha's flagship RIVAGE PM Series, running at 96kHz. Effects, EQs, compressors, and dynamics tools that used to be reserved for high-end touring and broadcast rigs are now available on a console sized for a mid-size venue's budget and footprint.
"The thing worth explaining to a buyer isn't the channel count, it's that this desk doesn't sound like a step down from the DM7. It's the same engine in a smaller box."
DM5 vs. DM5C: Which One Fits Your Setup
Both consoles share the same core platform. The difference is channel count, fader count, and physical footprint.
| Spec | DM5 | DM5C |
|---|---|---|
| Input channels | 60 mono | 48 mono |
| Faders | 26 motorized | 13 motorized |
| Analog I/O | 32 in / 16 out | 16 in / 16 out |
| Touchscreens | Dual 13-inch | Single 13-inch |
| Format | Dual-bay | Single-bay, rack-mountable |
| Weight | 48 lbs | 29 lbs |

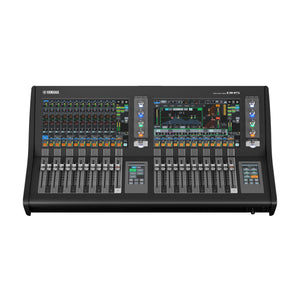

The full dual-bay DM5 with 26 motorized faders and dual 13-inch touchscreens, plus a 4.3-inch utility display. The adjustable tilt display offers four viewing angles to cut glare in outdoor mixing positions, and the console is built durable enough for life on the road at 48 lbs.
Shop at SoundPro →
The single-bay DM5C at 29 lbs, built for fly-pack rigs and rack-mountable installs where the full DM5's footprint doesn't fit. Same processing engine, same adjustable tilt display, and the same show file compatibility with the rest of the DM5 and DM7 lineup in a chassis about half the size.
Shop at SoundPro →If you're already running a DM7 and wondering whether the DM5 makes sense alongside it, or instead of it, our Yamaha DM7 guide covers the full-size flagship in detail, including where a 120-channel console is genuinely necessary versus where a DM5's 60 channels is plenty.
Tell us your channel count and format needs and we'll confirm the right fit.
The New RUio Utility I/O Series
Launching alongside the consoles, the RUio Series adds three new Dante-based I/O options that complement Yamaha's existing Rio and RPio stage boxes, aimed at more utility-focused connectivity needs.
Yamaha's first utility-focused Dante stage box, with 16 inputs and 8 outputs. Built for temporary events and portable systems where you need flexible audio distribution without a full-size stage box, with head amp performance comparable to the DM3. Works on the floor or rack-mounted with the optional RK-RUio1608SB kit.
Shop at SoundPro →
16 channels of adaptable I/O where each channel pair can be configured for analog or AES/EBU operation. A strong fit for installations and business audio environments, and especially useful for Yamaha DME systems that have limited or no onboard analog I/O of their own.
Shop at SoundPro →
Adds 8 inputs and 4 outputs in a compact rackmount design. A practical way to add talkback capability or supplemental I/O to a larger Dante system without deploying a full second stage box.
Shop at SoundPro →Because the whole RUio line runs on Dante, it's worth reading our guide to Dante audio if you're new to networked audio, or our guide to Yamaha's AV control ecosystem if you're pairing RUio I/O with a DME processor in a fixed install rather than a touring rig.
PY-DSP: Unlocking Rivage-Level Processing
For engineers who want to go beyond what's built into the console, PY-DSP is an optional processing card that adds 32 premium rack slots to a DM5 or DM5C. That unlocks tools like Rupert Neve Designs Portico EQ and compressor models, Dynamic EQ, and other premium plugins normally reserved for higher-end consoles, giving a DM5 access to the same sonic toolkit used in high-end touring and production environments.
DM5 Series Pricing
Real current pricing at SoundPro for the full lineup:
| Model | MSRP | Current Price |
|---|---|---|
| DM5 (60-channel) | $11,999.00 | $9,999.99 |
| DM5C (48-channel) | $8,399.00 | $6,999.99 |
| RUio1608SB-D (16x8 stage box) | $2,639.00 | $2,199.99 |
| RUio16FLX-D (16-channel flex I/O) | $2,639.00 | $2,199.99 |
| RUio0804-D (8x4 rackmount I/O) | $1,799.00 | $1,499.99 |
| PY-DSP (32-slot expansion) | $2,159.00 | $1,799.99 |
Optional Broadcast and Theater software packages, along with a Dugan Automix package for the DM5 line, are also available for teams that need those dedicated feature sets. SoundPro's Account Managers can quote pricing beyond MAP for qualified buyers and discuss financing on a full system purchase.
Next Steps
The DM5 Series is currently on priority pre-order with limited supply, estimated to ship October 2026. Here's the path we're walking buyers through right now:
- Decide between DM5 and DM5C based on channel count and whether a dual-bay or single-bay footprint fits your rig.
- Reserve your spot now. Supply is limited for the initial ship window, and priority pre-orders are filling in the order they're placed.
- Plan your I/O. Decide whether the RUio Series covers your stage and rack connectivity needs alongside your existing Rio or RPio boxes.
- Call SoundPro before you finalize your order. As an authorized Yamaha dealer, our Live Production specialists can help you configure the right system and get you pricing beyond the listed price.
- Full Yamaha DM5 Series & RUio Lineup at SoundPro
- Yamaha DM7 Digital Mixer Guide
- What Is Dante Audio? A Complete Guide for AV Integrators
- Yamaha's New AV Control System for Commercial Installs
- Worship Team Audio Setup Guide
Get on the priority pre-order list with SoundPro, an authorized Yamaha dealer with 16+ industry certifications.
FAQ: Yamaha DM5 Series
What's the difference between the Yamaha DM5 and DM7?
The DM5 shares the same processing engine, firmware, editor software, and show file compatibility as the DM7, just in a smaller, more portable package. The full-size DM5 tops out at 60 input channels and 26 motorized faders, while the DM7 scales up to 120 channels for larger productions. Engineers moving between the two platforms never have to relearn workflows or rebuild show files.
What's the difference between the DM5 and the DM5C?
The DM5 is a dual-bay console with 60 input channels, 26 motorized faders, and dual 13-inch touchscreens. The DM5C is a single-bay console with 48 input channels, 13 motorized faders, and one 13-inch touchscreen, weighing about 19 lbs less, making it the better pick for fly-pack rigs and tighter rack spaces.
Can RUio Utility I/O devices expand an existing Dante system?
Yes. The RUio Series adds connectivity to Dante-based systems and complements Yamaha's existing Rio and RPio stage boxes. The RUio1608SB-D is Yamaha's first utility-focused Dante stage box, the RUio16FLX-D uses Phoenix connectors with switchable analog or AES/EBU per channel pair, and the RUio0804-D adds compact 8x4 expansion I/O.
Is the DM5 Series a good fit for house of worship or education?
Yes. DM5 was designed with house of worship applications in mind alongside live sound, education, corporate AV, broadcast, and theater. It runs at 96kHz with premium rack processing derived from Yamaha's RIVAGE PM Series, giving worship teams and school AV programs professional-grade processing without the RIVAGE price tag or footprint.
When will the Yamaha DM5 Series ship?
The DM5 Series is currently available for priority pre-order with an estimated ship date of October 2026 and limited initial supply. SoundPro's Account Managers can confirm current order status and expected timing for your specific configuration.
